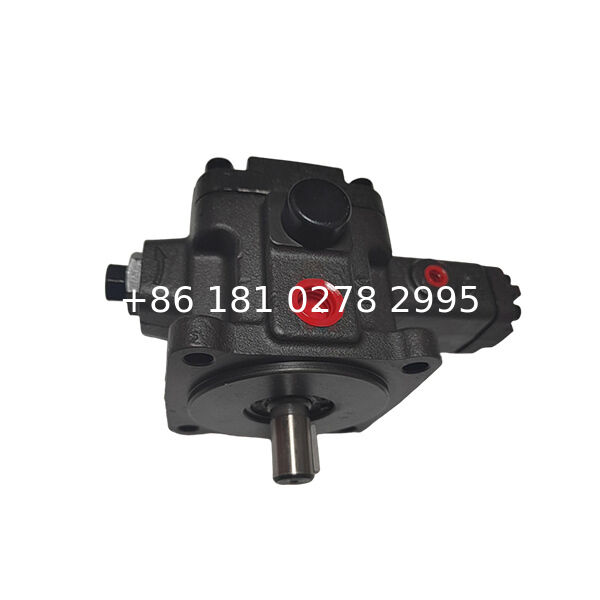

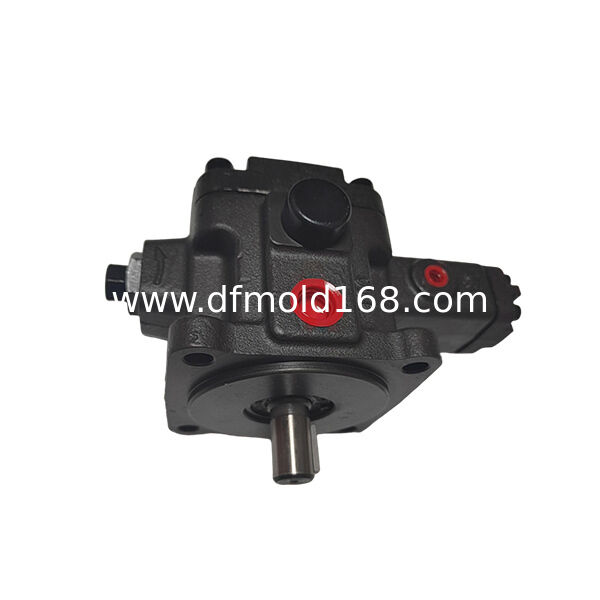

VDR-1B-1A1-U-1133K Low Pressure Variable Vane Pump

The VDR-1B-1A1-U-1133K is a compact variable displacement vane pump designed for hydraulic systems requiring low-pressure operation, stable flow regulation and space-saving installation.

Featuring a pressure compensated vane structure, this model automatically adjusts hydraulic output according to system demand, helping reduce unnecessary energy consumption during operation.

The 1A1 configuration is optimized for lower pressure hydraulic circuits, while the U mounting configuration provides flexibility for equipment requiring special installation arrangements.

Compared with higher displacement VDR models, this compact version is suitable for hydraulic systems where controlled flow output and efficient operation are more important than high pressure performance.

Key Features

• Compact VDR-1B series design
• Low pressure variable displacement control
• Pressure compensated vane structure
• Special U mounting configuration
• Stable hydraulic flow adjustment
• Low noise operation
• Energy-efficient hydraulic control

Typical Applications

• Compact hydraulic power units
• Machine tools
• Industrial automation equipment
• Hydraulic control systems
• Small hydraulic machinery

Low Pressure Hydraulic Control

The 1A1 configuration is designed for applications requiring:

• Lower pressure regulation
• Stable flow output
• Compact hydraulic installation
• Efficient power utilization

Variable Displacement Advantage

Compared with fixed displacement pumps:

• Output flow adjusts according to demand
• Reduces unnecessary hydraulic power loss
• Minimizes heat generation
• Improves system efficiency

Special Mounting Configuration

The U configuration provides:

• Flexible equipment integration
• Space-saving installation
• Compatibility with specific hydraulic layouts

Model Difference

VDR-1B-1A1-U-1133K

Low pressure configuration

Compact flow control

Special mounting design

VDR-1B-1A2-U-22

Higher pressure configuration

16cc displacement

VDR-1B-2A2-22

Higher flow capacity

22cc displacement

FAQ

Q1: What type of pump is VDR-1B-1A1-U-1133K?

A1: It is a variable displacement vane pump.

Q2: What is the main feature of this model?

A2: It is designed for low-pressure hydraulic systems requiring stable flow control.

Q3: What is the difference from VDR-1B-1A2 models?

A3: The 1A1 configuration uses a lower pressure adjustment range.

Q4: Does this pump support variable flow control?

A4: Yes. The vane mechanism adjusts displacement according to hydraulic demand.

Q5: What applications are suitable?

A5: It is suitable for compact hydraulic control systems and industrial machinery.
