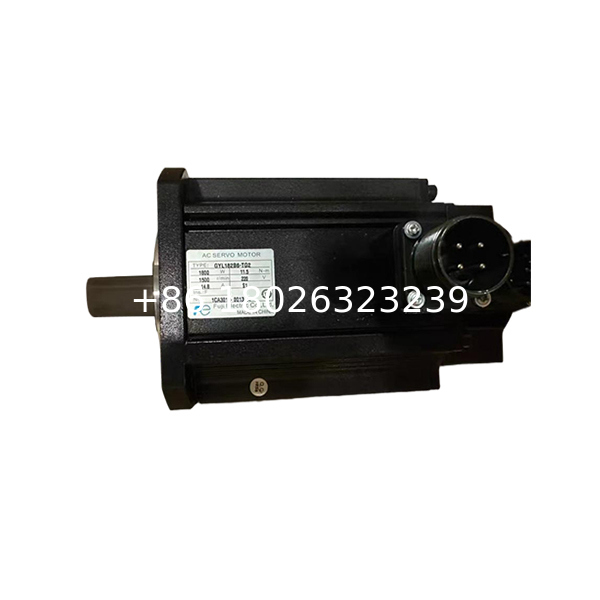

The Fuji Electric GYL182B6-TG2 is a 1.8 kW medium inertia AC servo motor developed for precision positioning, controlled acceleration, and stable torque delivery in industrial automation equipment. It operates at 200 VAC with a rated speed of 1500 r/min and produces 11.5 Nm of rated torque, making it suitable for machinery that requires consistent rotary motion rather than ultra-high-speed lightweight axis performance.
This model uses a 17-bit incremental encoder for closed-loop feedback. The encoder continuously reports motor position and speed to the compatible servo amplifier, allowing accurate control during indexing, feeding, synchronization, and repeat positioning tasks.
The GYL182B6-TG2 uses a 130 mm flange construction and a straight keyed shaft with a tapped end. Its medium inertia rotor helps maintain stable operation when driving loads with moderate rotational inertia, such as rotary tables, feed mechanisms, printing cylinders, packaging indexes, and machine-tool auxiliary axes.
The motor is supplied without a holding brake. It includes an oil seal and is designed with a totally enclosed self-cooled housing for industrial cabinet and machine installation. With its 1.8 kW output, 1500 r/min rated speed, and 11.5 Nm torque rating, it is a practical choice for precision automation systems requiring controlled torque and reliable repeatability.
Key Features
- 1.8 kW rated output for industrial servo applications
- 200 VAC servo motor configuration
- 1500 r/min rated operating speed
- 11.5 Nm rated torque
- 17-bit incremental encoder feedback
- Medium inertia rotor for stable load matching
- Straight keyed shaft with tapped end
- Oil seal included
- No holding brake configuration
- IP67 motor housing protection excluding shaft seal area
Applications
- CNC auxiliary axes
- Packaging and labeling machinery
- Indexing tables
- Printing and converting equipment
- Material feeding systems
- Automated assembly stations
- Rotary motion control systems
- General industrial positioning equipment
FAQ
Q1: What is the rated power of GYL182B6-TG2?
A: The rated power is 1.8 kW.
Q2: What is the rated voltage?
A: The motor is rated for a 200 VAC servo system.
Q3: What is the rated speed and torque?
A: The rated speed is 1500 r/min and the rated torque is 11.5 Nm.
Q4: Does GYL182B6-TG2 have a holding brake?
A: No. The GYL182B6-TG2 is the version without a holding brake.
Q5: What encoder does this motor use?
A: It uses a 17-bit incremental encoder for closed-loop position and speed feedback.
Q6: Is this motor suitable for high-load industrial motion systems?
A: It is designed for medium inertia industrial axes requiring stable torque output, controlled acceleration, and accurate positioning.
