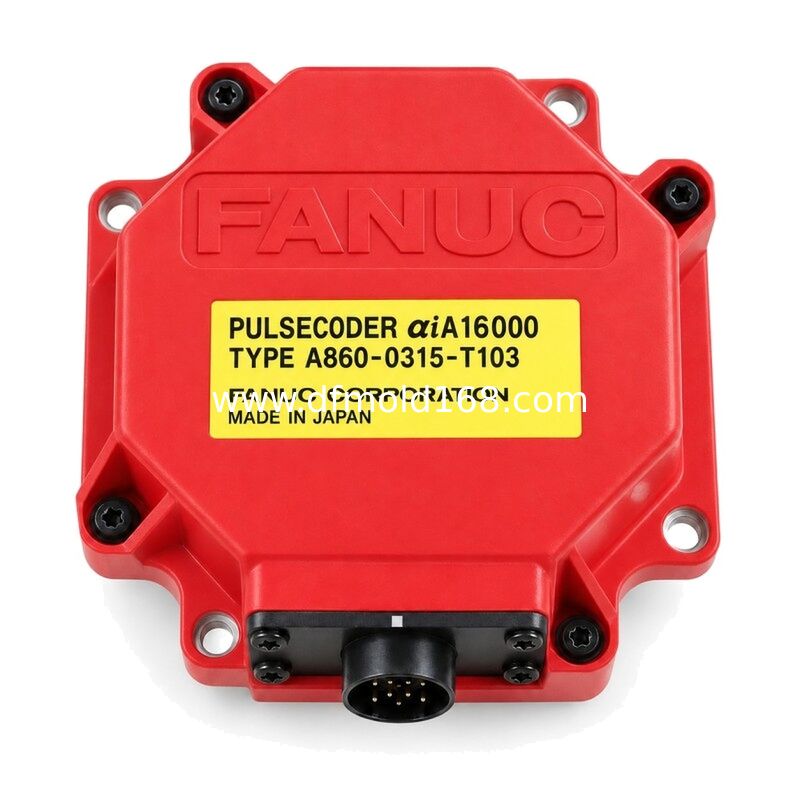

FANUC A860-0315-T103 3000 pulse Incremental Pulse Coder

Retaining 3000 pulse incremental feedback during legacy motor service is the main purchasing use for A860-0315-T103. This 3000-pulse encoder belongs in a service order for a motor that specifies this feedback configuration. It returns motor feedback to the compatible servo system so that the machine can control its axis movement. Typical service inquiries arise during motor repair, planned spare-part stocking or investigation of a feedback fault on a CNC machine.

On older installations, the motor family and visible housing are only starting points. The pulse count, feedback mode and coupling arrangement determine the service configuration. Keep the original label and machine maintenance record together so that a similarly named encoder is not accepted under the same purchase line.

Key Features

• Legacy 3000 pulse feedback identification with 3,000 pulses/rev.
• Incremental feedback; preserve this mode during selection.
• Tapered shaft coupling motor group; compare the original assembly before ordering.

Supply and Inquiry Information

Request price and availability for A860-0315-T103 with quantity, delivery country and required date. Attach the encoder label, complete motor number and connector photographs. State the condition you will accept and whether this is an urgent machine-down requirement or a planned spare.

Ask the quotation to identify the actual offered part, condition, included accessories, available test evidence, delivery estimate and warranty terms. Confirm these details before placing an order. A product listing does not reserve stock or establish a dispatch date.

Compatibility and Replacement Note

Match the complete encoder number to the motor service documentation, then compare connectors, cable arrangement and mounting. Obtain an approved part cross-reference before accepting a different number. Installation, alignment and any reference-position restoration must follow the machine and motor maintenance procedures; an encoder purchase is not a plug-and-play commissioning guarantee.

Buying and Replacement FAQ

Q1. What should I send for a A860-0315-T103 quotation?

Send the full A860-0315-T103 label, motor A06B number, quantity and destination. Include connector and mounting photos; a machine name alone may leave the feedback configuration unresolved.

Q2. Is A860-0326-T103 equivalent because both say 3000?

No. The service table identifies 0315-T103 as incremental and 0326-T103 as absolute. Pulse count and suffix alone are insufficient.

Q3. Which detail should I check on the offered unit?

Check that the offer identifies A860-0315-T103, Legacy 3000 pulse and the incremental feedback mode. Ask for readable photographs of the actual label, connector and mounting face before approval.

Q4. Are the cable, coupling and motor cover included?

Have each item listed in the quotation. The encoder part number does not establish the commercial scope of a particular offer. Request any required coupling, cable or seal as a separate line if it is not included.

Q5. Will buying this encoder clear the machine alarm?

Not necessarily. Ask the maintenance technician to identify the alarm and check the feedback circuit before ordering. Cable, connection and setup faults can resemble encoder problems; the exact service diagnosis determines the required part.

Q6. How do I confirm condition, test evidence and delivery?

Request a written offer showing condition, price, lead time and warranty terms. If a test record is available, ask what was tested and which unit it covers. Agree on the required evidence and packing before payment.
