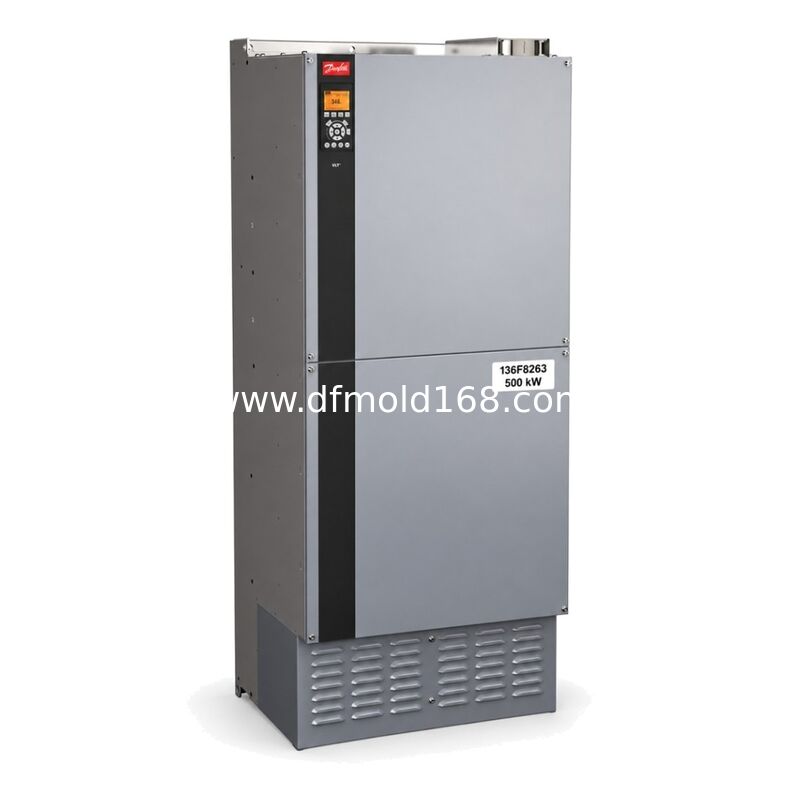

Danfoss 136F8263 FC-302N500T5E20H2BGCXXXSXXXXANBXCXXXXDX 500kW IP20 Brake VFD

Danfoss 136F8263, type FC-302N500T5E20H2BGCXXXSXXXXANBXCXXXXDX, is an FC 302 frequency converter in the 500 kW class. This EtherNet/IP configuration combines networked speed control with a brake chopper for machinery with controlled stopping requirements. It suits a purchase specification that must preserve both the network and the braking circuit.

The drive controls motor speed to meet the process demand. Selection must account for motor current, operating voltage, acceleration, stopping and overload duty. A shared power rating does not make two configurations directly interchangeable.

Key Features and Application Focus

• IP20 enclosure designation
• factory brake chopper

EtherNet/IP MCA 121. EtherNet IP braking duty is the main quotation focus. Assess use with the machine designer before specifying the drive for a particular load.

Supply and Quotation Information

Request a current quotation for 136F8263 with the complete type code, quantity and delivery destination. Pricing varies with the confirmed order scope. Estimated lead time is approximately 3 months, subject to confirmation at order placement. Ask the offer to state its validity, lead-time starting point and included accessories.

Compatibility and Selection Note

For an existing installation, send the original nameplate and parameter backup. Compare the supply, motor current, overload duty, enclosure, mains equipment, braking circuit and communication option. Any alternative needs a documented configuration review and commissioning plan. Matching 500 kW alone is insufficient.

Buying and Replacement FAQ

Q1. How do I request a price for 136F8263?

Send product code 136F8263, the full type code, quantity, destination and required date. Include the motor nameplate and application duty so the offer can be checked against the actual requirement.

Q2. Can an AN non-braking model replace this reference?

Compare the stopping duty and braking circuit first. Keeping the same network protocol does not preserve a brake chopper. Include resistor data and the required deceleration time in the inquiry.

Q3. What does the incoming-power scope include?

This type code specifies no factory mains option. Have the panel designer identify the required external isolation and protection equipment.

Q4. What should I send for the communication review?

Retain AN on the quotation request. Specify EtherNet/IP MCA 121, the controller model and the existing network project. Confirm the offered interface before accepting a different code.

Q5. When does the three-month lead time start?

Ask the quotation to define the starting event, such as order acceptance or payment confirmation. The estimated three months must also identify whether it covers dispatch or arrival. Confirm freight time separately.

Q6. Can another 500 kW drive replace this model?

Only after comparing the complete electrical, mechanical and control configuration. Check the original duty rating and motor current. Ask the offer to list every deviation and the required commissioning work before approving an alternative.
