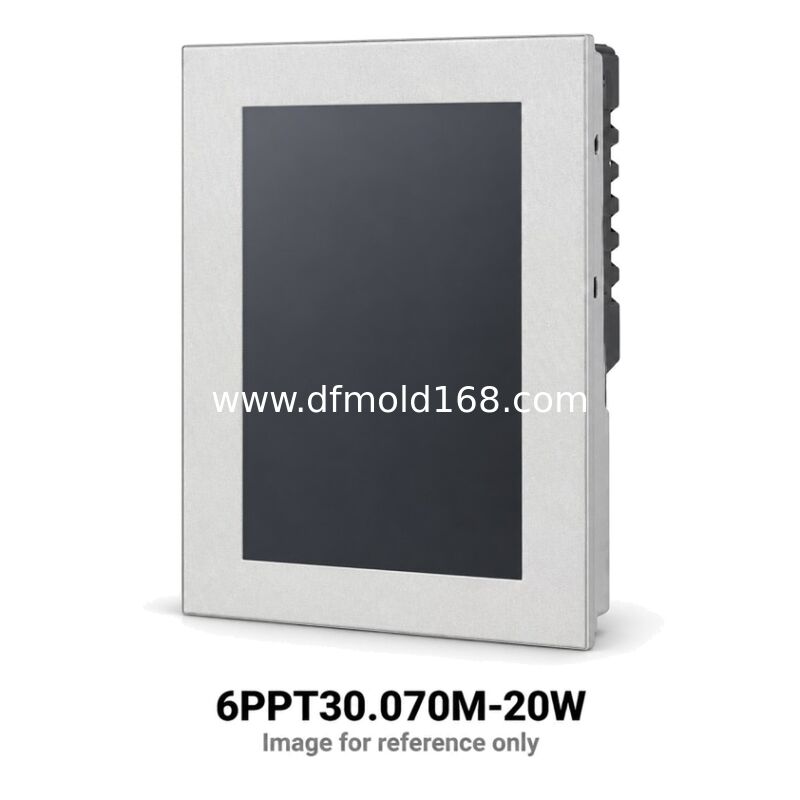

6PPT30.070M-20W 7in Portrait White HMI

6PPT30.070M-20W is an embedded HMI visualization terminal. This 7-inch portrait terminal provides a taller display area for machine interfaces arranged in vertical sections. A host application can use the 480 x 800 canvas for status summaries, menus or sequential operator actions. The aluminum white pinstripe front distinguishes this order configuration from the anthracite version. It is a candidate for replacing an operator station whose visualization and enclosure were designed for portrait use. Before purchase, review the screen layout, connector access and mounting space so that a replacement preserves both the physical fit and the way operators interact with the machine.

Key Features and Typical Uses

7-inch 480 x 800 interface for machine status, recipe navigation and alarm handling implemented by the connected host. Portrait format with a resistive touch surface. Integrated Ethernet switch supports the specified two-port wiring arrangement.

Supply and Quotation Information

Request a quotation for 6PPT30.070M-20W with quantity, delivery destination and required arrival date. Attach the installed label for a replacement inquiry. We quote against the confirmed model and order scope. Ask for the offered condition, included connectors and mounting accessories, price validity, availability and delivery terms to be listed before ordering.

Compatibility and Selection Note

Check the complete model, 480 x 800 display, front surface, panel cutout and connector clearance. Retain a backup of terminal settings and identify the web or VNC host. Compare software compatibility and network wiring before accepting an alternative. Any project adaptation or commissioning work should be agreed separately from the hardware purchase.

Buying, Quotation and Replacement FAQ

1. How do I request a price for 6PPT30.070M-20W?

Send 6PPT30.070M-20W, quantity and destination. Include label photographs for a spare-panel purchase, the required arrival date and whether only an exact reference is acceptable.

2. Can a different 7-inch panel replace 6PPT30.070M-20W?

This model uses 480 x 800 pixels in portrait format. Check the mounting drawing and the host screen layout. Matching the diagonal alone does not preserve cabinet fit, resolution or touch behavior.

3. Can 6PPT30.070M-20B be supplied instead?

The final letter changes the specified front appearance. The requested 6PPT30.070M-20W uses aluminum white pinstripe. Confirm the alternate finish and full mechanical specification before approving the substitution.

4. Does the two-port version provide isolated networks?

No isolated-network function is established by the port count. This reference specifies 2 x 10/100 Mbit/s Ethernet, integrated switch. Review both cable connections and the existing switch topology before approving a replacement.

5. Is the machine application included with the HMI?

The terminal includes browser and VNC client functions, but do not assume the machine project, host software or licenses are part of the hardware offer. Confirm access to the host and settings backup before ordering.

6. How do I confirm delivery and the supplied package?

Request written confirmation for the exact model and quantity, including availability, dispatch timing and transport terms. Check the stated condition and accessory list. Current price and delivery commitments are established in the quotation.
