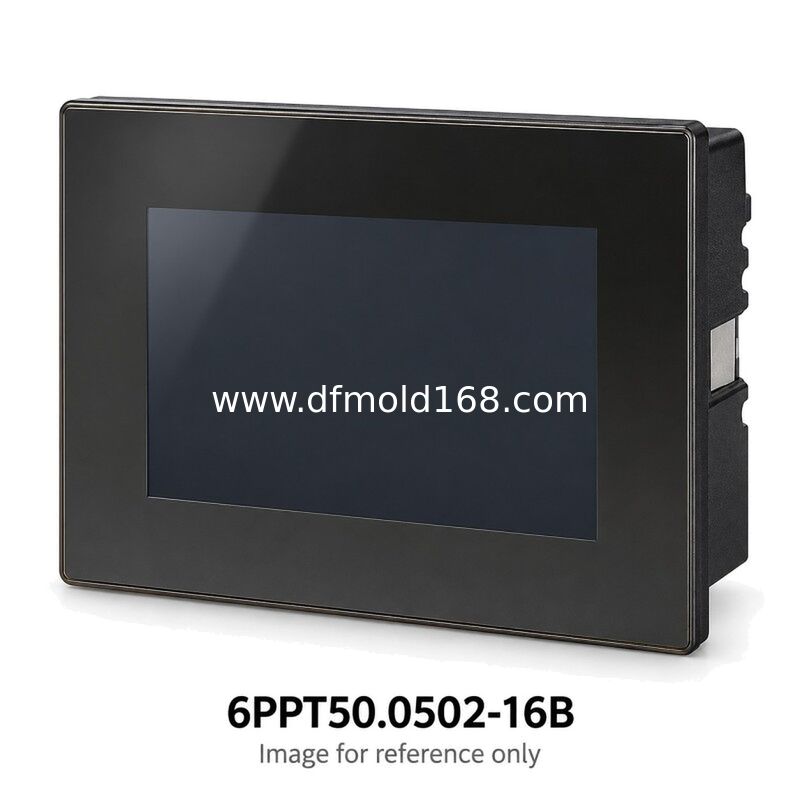

6PPT50.0502-16B 5in Glass 2-Port HMI

6PPT50.0502-16B is an embedded HMI visualization terminal. This compact terminal provides a 5-inch multi-touch interface with ordinary glass and two Ethernet ports connected through an integrated switch. It is relevant to spare-panel procurement where an existing station uses a second network cable and an 800 x 480 visualization. The operator can view and interact with host-provided machine screens, subject to the application configuration. Retaining the complete 16B suffix helps distinguish this unit from anti-glare and single-port variants. Review the cabinet opening and cable clearances alongside the terminal settings before accepting a proposed alternative.

Key Features and Typical Uses

5-inch 800 x 480 interface for machine status, recipe navigation and alarm handling implemented by the connected host. Ordinary-glass viewing surface with capacitive multi-touch. Integrated Ethernet switch supports the specified two-port wiring arrangement.

Supply and Quotation Information

Request a quotation for 6PPT50.0502-16B with quantity, delivery destination and required arrival date. Attach the installed label for a replacement inquiry. We quote against the confirmed model and order scope. Ask for the offered condition, included connectors and mounting accessories, price validity, availability and delivery terms to be listed before ordering.

Compatibility and Selection Note

Check the complete model, 800 x 480 display, front surface, panel cutout and connector clearance. Retain a backup of terminal settings and identify the web or VNC host. Compare software compatibility and network wiring before accepting an alternative. Any project adaptation or commissioning work should be agreed separately from the hardware purchase.

Buying, Quotation and Replacement FAQ

1. How do I request a price for 6PPT50.0502-16B?

Send 6PPT50.0502-16B, quantity and destination. Include label photographs for a spare-panel purchase, the required arrival date and whether only an exact reference is acceptable.

2. Can a different 5-inch panel replace 6PPT50.0502-16B?

This model uses 800 x 480 pixels. Check the mounting drawing and the host screen layout. Matching the diagonal alone does not preserve cabinet fit, resolution or touch behavior.

3. How does 6PPT50.0502-16A differ for ordering?

The final A or B identifies a glass-finish difference in this pair. This order calls for ordinary glass, black frame. Keep that requirement on the inquiry and ask us to identify any proposed deviation explicitly.

4. Does the two-port version provide isolated networks?

No isolated-network function is established by the port count. This reference specifies 2 x Gigabit Ethernet, integrated switch. Review both cable connections and the existing switch topology before approving a replacement.

5. Is the machine application included with the HMI?

The terminal includes browser and VNC client functions, but do not assume the machine project, host software or licenses are part of the hardware offer. Confirm access to the host and settings backup before ordering.

6. How do I confirm delivery and the supplied package?

Request written confirmation for the exact model and quantity, including availability, dispatch timing and transport terms. Check the stated condition and accessory list. Current price and delivery commitments are established in the quotation.
