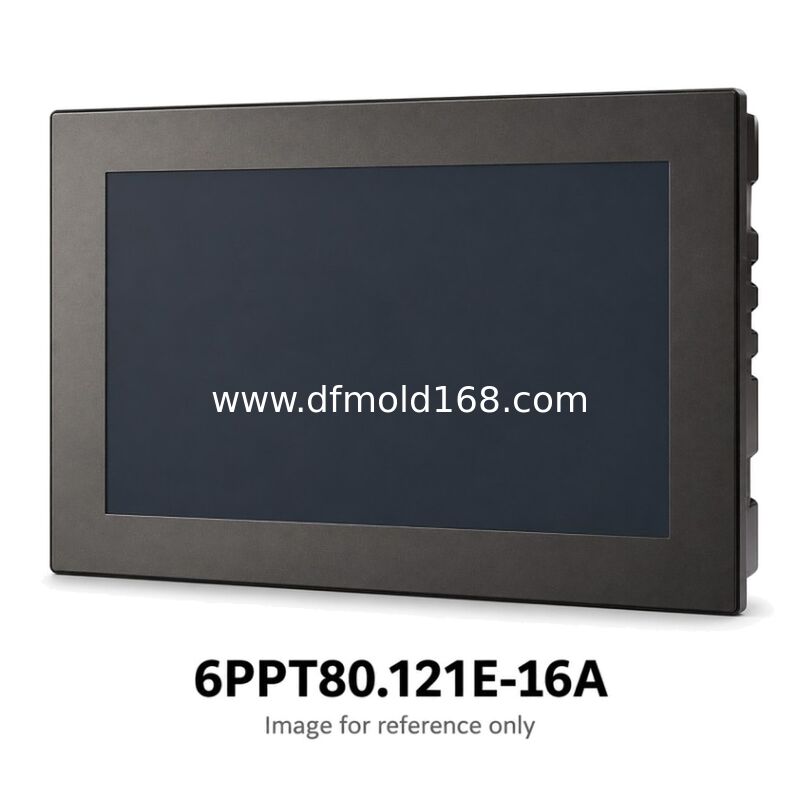

6PPT80.121E-16A 12.1in Anti-Glare 2-Port HMI

6PPT80.121E-16A is an embedded HMI visualization terminal. This 12.1-inch anti-glare terminal combines a larger visualization area with a two-port Ethernet switch arrangement. It can be used as the operator interface for a compatible host application where process values, recipes and alarms are presented on a 1280 x 800 canvas. The selected glass finish and network arrangement are both relevant when matching an installed station. For a planned replacement, document the network cable path and host settings before removing the existing panel. Confirm mechanical fit and application behavior before approving a terminal with a different suffix.

Key Features and Typical Uses

12.1-inch 1280 x 800 interface for machine status, recipe navigation and alarm handling implemented by the connected host. Anti-glare viewing surface with capacitive multi-touch. Integrated Ethernet switch supports the specified two-port wiring arrangement.

Supply and Quotation Information

Request a quotation for 6PPT80.121E-16A with quantity, delivery destination and required arrival date. Attach the installed label for a replacement inquiry. We quote against the confirmed model and order scope. Ask for the offered condition, included connectors and mounting accessories, price validity, availability and delivery terms to be listed before ordering.

Compatibility and Selection Note

Check the complete model, 1280 x 800 display, front surface, panel cutout and connector clearance. Retain a backup of terminal settings and identify the web or VNC host. Compare software compatibility and network wiring before accepting an alternative. Any project adaptation or commissioning work should be agreed separately from the hardware purchase.

Buying, Quotation and Replacement FAQ

1. How do I request a price for 6PPT80.121E-16A?

Send 6PPT80.121E-16A, quantity and destination. Include label photographs for a spare-panel purchase, the required arrival date and whether only an exact reference is acceptable.

2. Can a different 12.1-inch panel replace 6PPT80.121E-16A?

This model uses 1280 x 800 pixels. Check the mounting drawing and the host screen layout. Matching the diagonal alone does not preserve cabinet fit, resolution or touch behavior.

3. How does 6PPT80.121E-16B differ for ordering?

The final A or B identifies a glass-finish difference in this pair. This order calls for anti-glare glass, black frame. Keep that requirement on the inquiry and ask us to identify any proposed deviation explicitly.

4. Does the two-port version provide isolated networks?

No isolated-network function is established by the port count. This reference specifies 2 x Gigabit Ethernet, integrated switch. Review both cable connections and the existing switch topology before approving a replacement.

5. Is the machine application included with the HMI?

The terminal includes browser and VNC client functions, but do not assume the machine project, host software or licenses are part of the hardware offer. Confirm access to the host and settings backup before ordering.

6. How do I confirm delivery and the supplied package?

Request written confirmation for the exact model and quantity, including availability, dispatch timing and transport terms. Check the stated condition and accessory list. Current price and delivery commitments are established in the quotation.
