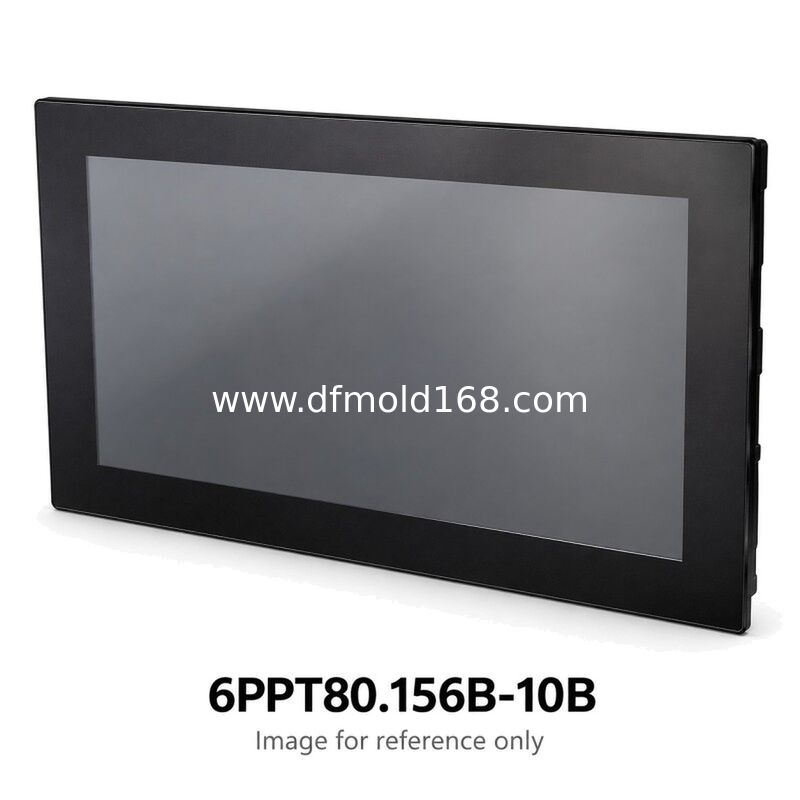

6PPT80.156B-10B 15.6in Glass 1-Port HMI

6PPT80.156B-10B is an embedded HMI visualization terminal. This wide terminal combines a 15.6-inch ordinary-glass display with a single Gigabit Ethernet connection. It can serve as a host-based operator interface for production overviews, recipes and alarm screens laid out for 1366 x 768 pixels. The 10B configuration is relevant to purchases that need to preserve a single-port network arrangement and ordinary glass. For replacement planning, identify the host application and save the terminal settings before installation. A unit with the same display size may still differ in network topology, glass finish or software compatibility, so those details belong in the quotation review.

Key Features and Typical Uses

15.6-inch 1366 x 768 interface for machine status, recipe navigation and alarm handling implemented by the connected host. Ordinary-glass viewing surface with capacitive multi-touch. Single Gigabit Ethernet port connects the terminal to the approved visualization network.

Supply and Quotation Information

Request a quotation for 6PPT80.156B-10B with quantity, delivery destination and required arrival date. Attach the installed label for a replacement inquiry. We quote against the confirmed model and order scope. Ask for the offered condition, included connectors and mounting accessories, price validity, availability and delivery terms to be listed before ordering.

Compatibility and Selection Note

Check the complete model, 1366 x 768 display, front surface, panel cutout and connector clearance. Retain a backup of terminal settings and identify the web or VNC host. Compare software compatibility and network wiring before accepting an alternative. Any project adaptation or commissioning work should be agreed separately from the hardware purchase.

Buying, Quotation and Replacement FAQ

1. How do I request a price for 6PPT80.156B-10B?

Send 6PPT80.156B-10B, quantity and destination. Include label photographs for a spare-panel purchase, the required arrival date and whether only an exact reference is acceptable.

2. Can a different 15.6-inch panel replace 6PPT80.156B-10B?

This model uses 1366 x 768 pixels. Check the mounting drawing and the host screen layout. Matching the diagonal alone does not preserve cabinet fit, resolution or touch behavior.

3. How does 6PPT80.156B-10A differ for ordering?

The final A or B identifies a glass-finish difference in this pair. This order calls for ordinary glass, black frame. Keep that requirement on the inquiry and ask us to identify any proposed deviation explicitly.

4. Can this single-port unit replace a two-port installation?

6PPT80.156B-10B provides one Gigabit Ethernet port. Identify the purpose of both existing cables and assess any external switch requirement. Approve the revised network layout before accepting a single-port alternative.

5. Is the machine application included with the HMI?

The terminal includes browser and VNC client functions, but do not assume the machine project, host software or licenses are part of the hardware offer. Confirm access to the host and settings backup before ordering.

6. How do I confirm delivery and the supplied package?

Request written confirmation for the exact model and quantity, including availability, dispatch timing and transport terms. Check the stated condition and accessory list. Current price and delivery commitments are established in the quotation.
