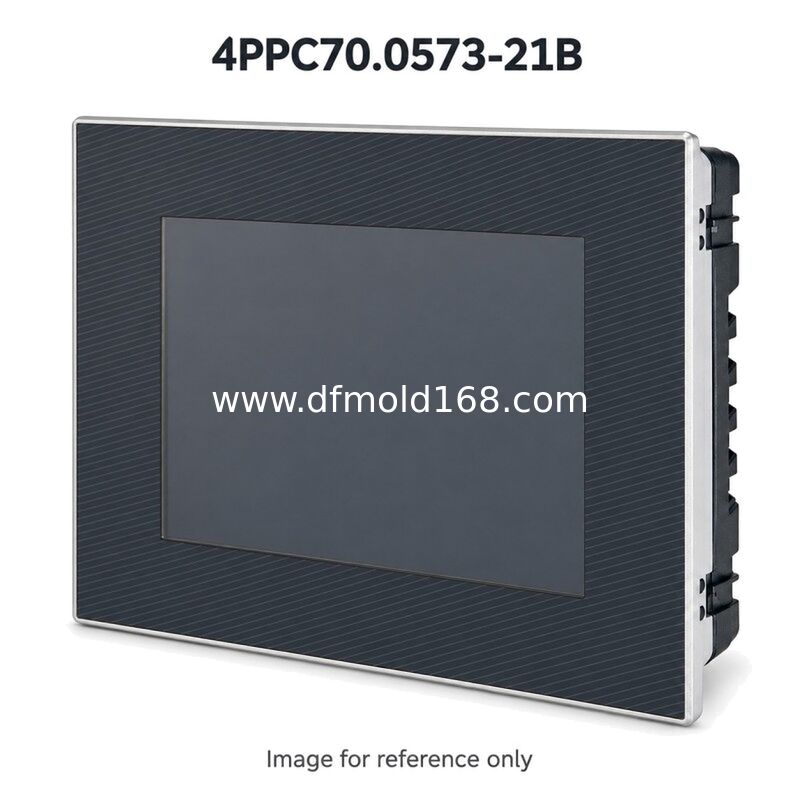

4PPC70.0573-21B 5.7in Dual CAN HMI Panel Controller

4PPC70.0573-21B combines an operator interface and embedded control hardware in one panel. The landscape layout supports a conventional operator screen for machine status, settings and alarm information. The installed application determines the control sequence and displayed functions. Two CAN interfaces are the main ordering distinction. They are useful when an existing project assigns devices to two CAN connections, while POWERLINK and the local I/O link remain part of the machine architecture. Confirm the project settings and wiring for each connection.

Typical uses include maintaining an existing machine operator station or preparing an exact-model spare. Match the panel opening, connector access and application backup before specifying the unit for a retrofit.

Supply and Quotation Information

Request a quotation for 4PPC70.0573-21B with quantity, delivery destination and required arrival date. For a replacement inquiry, send label and rear-connector photos. Ask us to confirm offered condition, hardware revision, included connectors and mounting parts, price validity, availability and delivery terms. Commercial terms are confirmed for each quotation.

Compatibility and Selection Note

Compare the full model and suffix with the installed controller. Retain the machine project, parameter files and relevant access credentials before replacement. Confirm the target hardware and software versions with the machine integrator. The two CAN interfaces must be checked against the machine network. Confirm device addresses, bit rates, termination and application support; connector availability alone does not establish protocol compatibility. Hardware supply and project migration should be agreed as separate scopes.

Buying and Replacement FAQ

Q1. How do I request a quotation for 4PPC70.0573-21B?

Send the full model, quantity and destination. Add the required date and photographs of the installed label. State whether only this exact reference is acceptable and request confirmation of condition and included accessories.

Q2. What screen details must match for 4PPC70.0573-21B?

Check the 5.7-inch screen, 640 x 480 resolution and landscape format against the machine layout. Overall dimensions are 172 x 140 x 51 mm; these are not the panel cutout. Use the installation drawing to confirm the opening and mounting clearance.

Q3. Which interface option does the 21B suffix identify?

The two CAN interfaces must be checked against the machine network. Confirm device addresses, bit rates, termination and application support; connector availability alone does not establish protocol compatibility.

Q4. Can a similar-looking terminal be used instead?

This item is a panel controller. Compare control functions, the anthracite gray pinstripe front and complete interface arrangement as well as the display. A display-only terminal or another suffix requires an engineering review before substitution.

Q5. Will my machine program be included?

Do not assume it is included. Confirm the agreed software scope, restore procedure and any required licenses or passwords. The machine integrator should validate the project on the supplied hardware revision before production use.

Q6. What should be confirmed before shipment?

Request label and connector photographs, the agreed inspection or test scope, packing details and a list of included mounting parts. Confirm the delivery date and commercial terms on the quotation; availability can change.
