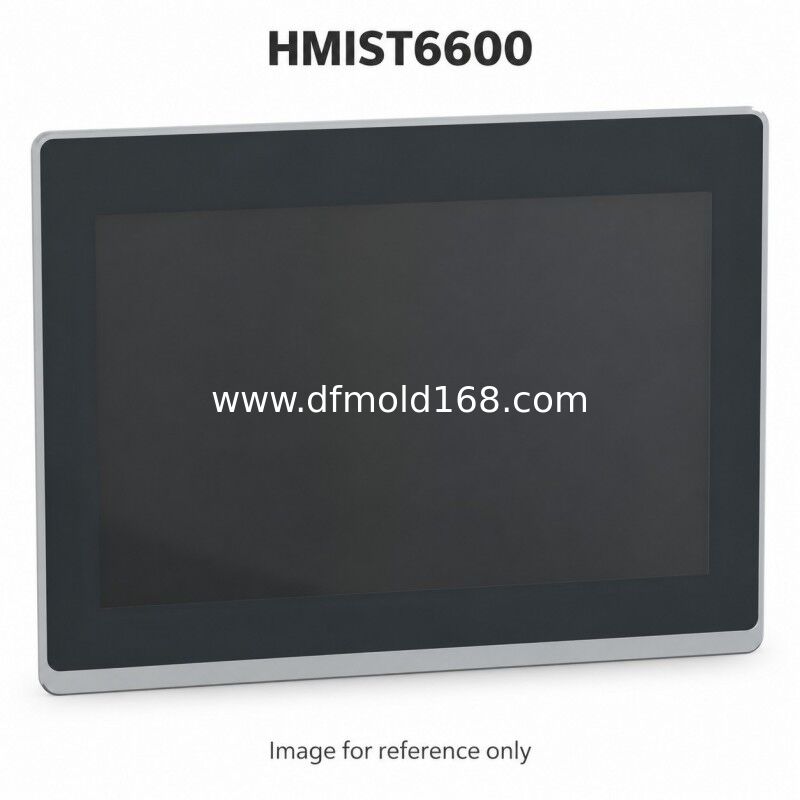

HMIST6600 12.1in 1280x800 Dual Ethernet HMI Panel

Name: HMIST6600 12.1in 1280x800 Dual Ethernet HMI Panel
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: HMIST6600
Price: Negotiable USD
Availability: InStock

Product Details

Brand Name: Schneider

Model Number: HMIST6600

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Type:	HMI Operator Panel	Screen Diagonal:	12.1 Inches
Native Resolution:	1280 X 800 Pixels	Display Technology:	Color TFT LCD
Display Colors:	16 Million	Backlight:	White LED
Brightness Adjustment:	16 Levels	Nominal Supply:	24 VDC
Supply Range:	19.2 To 28.8 VDC	Maximum Power Consumption:	18.4 W
COM1:	RS-232C, 9-pin D-Sub	COM2:	RS-485, RJ45
Ethernet Ports:	2 X RJ45	Ethernet Speed:	10/100 Mbit/s
USB Host:	1 X USB 2.0 Type A	USB Device:	1 X USB 2.0 Micro-B

Product Type:	HMI Operator Panel
Screen Diagonal:	12.1 Inches
Native Resolution:	1280 X 800 Pixels
Display Technology:	Color TFT LCD
Display Colors:	16 Million
Backlight:	White LED
Brightness Adjustment:	16 Levels
Nominal Supply:	24 VDC
Supply Range:	19.2 To 28.8 VDC
Maximum Power Consumption:	18.4 W
COM1:	RS-232C, 9-pin D-Sub
COM2:	RS-485, RJ45
Ethernet Ports:	2 X RJ45
Ethernet Speed:	10/100 Mbit/s
USB Host:	1 X USB 2.0 Type A
USB Device:	1 X USB 2.0 Micro-B
