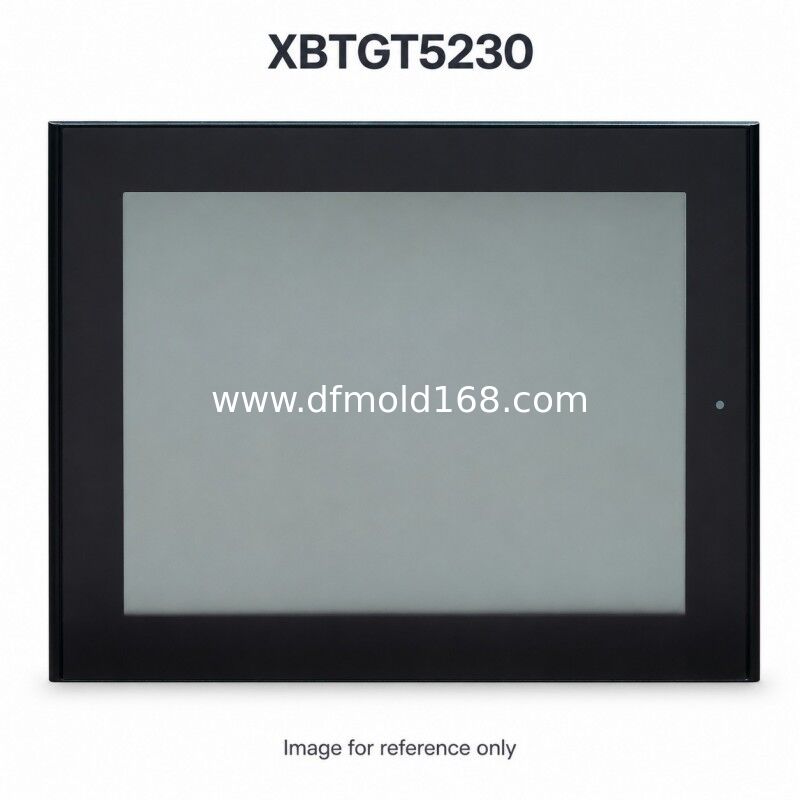

XBTGT5230 10.4 Inch STN Touch HMI 640x480

Parameters

Product Description

XBTGT5230 is a 10.4-inch operator panel with a STN color LCD display at 640 x 480 pixels. Its touch interface provides access to configured machine screens, process values and operator settings. Ethernet and two serial interfaces allow connection choices to be matched to the controller and project. The USB host connection and CompactFlash slot support compatible peripherals or application media as permitted by the engineering environment. For an existing machine, preserve the project backup and compare the complete reference, connector layout and mounting dimensions before ordering. Similar screen sizes do not guarantee the same wiring or application compatibility.

Supply and Quotation

Request a quotation for XBTGT5230 with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. Which display does this reference use?
   It uses a 10.4-inch STN color LCD with 640 x 480 pixels. The display specification is 4,096 colors.
2. Does this model support Ethernet?
   Yes. It provides 10BASE-T/100BASE-TX Ethernet, plus two serial interfaces. Verify the installed project driver and network settings.
3. Is this the same display as XBTGT5330?
   No. XBTGT5230 uses a color STN display with 4,096 colors. Do not substitute TFT display specifications from XBTGT5330.
4. How do I request a price for XBTGT5230?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
