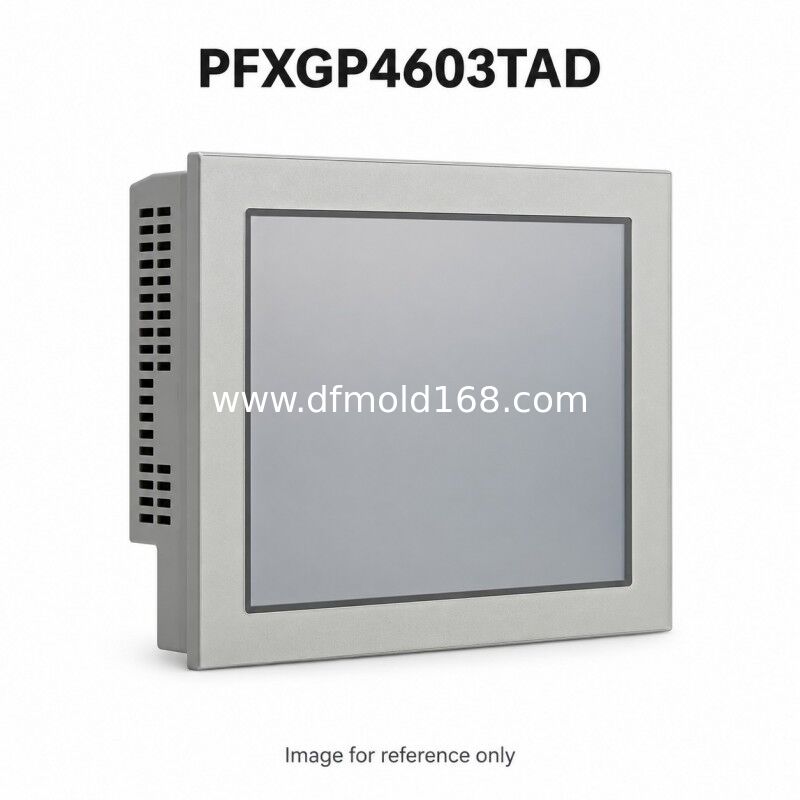

PFXGP4603TAD 12.1 Inch Isolated RS485 HMI 24VDC

Parameters

Product Description

PFXGP4603TAD provides a 12.1-inch TFT color display with 800 x 600 pixels for configured machine screens, operating values and settings. Its COM2 interface is isolated RS-485 with a female D-Sub 9 connector. This differs from the RS-422/485 interface on the related 4601 reference. USB host and device ports serve different purposes. Confirm the application backup, controller driver, connector pinout and mounting dimensions before ordering. Hardware supply does not automatically include the machine program, software license or commissioning.

Supply and Quotation

Request a quotation for PFXGP4603TAD with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. What distinguishes this exact reference?
   Its COM2 interface is isolated RS-485 with a female D-Sub 9 connector. This differs from the RS-422/485 interface on the related 4601 reference.
2. Which communication interfaces are fitted?
   COM1: RS-232C, D-Sub 9 male. COM2: Isolated RS-485, D-Sub 9 female. It also has one 10/100 Mbps Ethernet port.
3. What memory and removable storage does it provide?
   Application Flash is 32 MB, including the logic program area; backup SRAM is 320 KB. There is an SD card slot, but a card and its contents must be agreed in the quotation.
4. How do I request a price for PFXGP4603TAD?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
