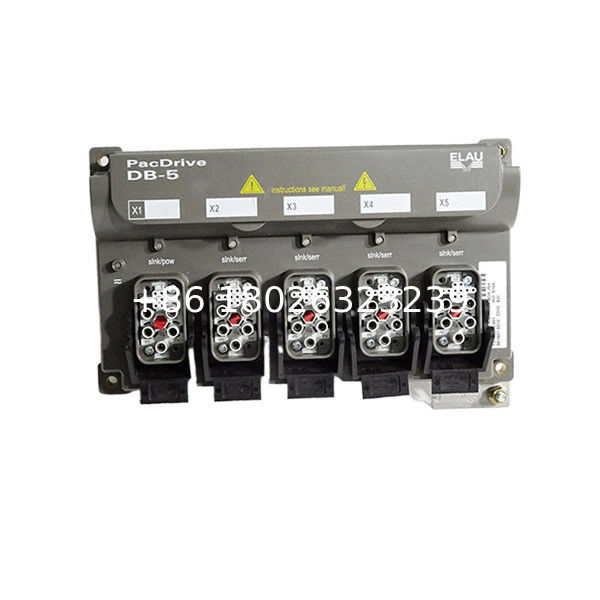

The ELAU PacDrive DB-5 is a distribution box for PacDrive iSH servo systems. It is not a motion controller, inverter, or motor power supply. Its role is to distribute the shared DC bus, 24 VDC control voltage, SERCOS communication path, and inverter-enable safety signals from a PS-5 power supply or upstream DB-5 to connected iSH servo motors.
One DB-5 provides one incoming connection and four outgoing connections. This allows a compact machine to connect up to four iSH motors from one distribution point. Where a machine requires more axes, additional DB-5 units can be connected in sequence to extend the same PacDrive iSH network.
The IP65 polycarbonate enclosure makes the unit suitable for machine-mounted distribution where protected connectors and correct cable assemblies are used. It is particularly useful in modular packaging, conveying, printing, and assembly equipment where drive wiring needs to be organized outside the main electrical cabinet.
Unlike a conventional terminal box, the DB-5 carries both high-voltage DC bus distribution and real-time SERCOS-related control signals. Correct cable order, PE connection, and compatible PacDrive iSH components are essential during installation.
Key Features
PacDrive iSH system distribution component
One incoming connection and four outgoing connections
Supports up to four iSH motors per distribution box
DC bus distribution up to 680 VDC
20 A maximum DC bus current
24 VDC control voltage distribution
SERCOS communication signal routing
Inverter Enable signal distribution
Expandable through additional DB-5 units
IP65 polycarbonate housing
Natural convection cooling
Compact machine-mounted installation
Typical Applications
Multi-axis packaging machinery
Cartoning and labeling equipment
Conveyor and transfer systems
Printing and converting machines
Automated assembly stations
Servo-driven handling equipment
Distributed iSH motor installations
PacDrive system retrofit projects
Installation Notes
Use only compatible PacDrive iSH prefabricated cables for the input and output connections.
Connect X1 to the PS-5 power supply or an upstream DB-5. Use X2 through X5 for downstream iSH servo motors or additional DB-5 distribution boxes.
Do not use the DB-5 as a standalone power supply, motion controller, or conventional low-voltage junction box. Check the complete PacDrive system wiring, protective earth connection, DC bus voltage, and SERCOS routing before energizing the machine.
FAQ
Q
What is the function of the DB-5
A
It distributes DC bus power, 24 VDC control power, SERCOS communication, and inverter-enable signals within a PacDrive iSH servo system
Q
How many iSH motors can one DB-5 connect
A
One DB-5 can connect up to four iSH motors or downstream DB-5 units
Q
Is DB-5 a servo drive
A
No it is a distribution box for the PacDrive iSH servo system
Q
Can DB-5 operate without a PS-5 power supply
A
No it normally receives its system connection from a PS-5 power supply or an upstream DB-5
Q
Is the enclosure suitable for machine-mounted use
A
Yes the DB-5 has an IP65 enclosure when installed with the correct compatible connectors and cables
