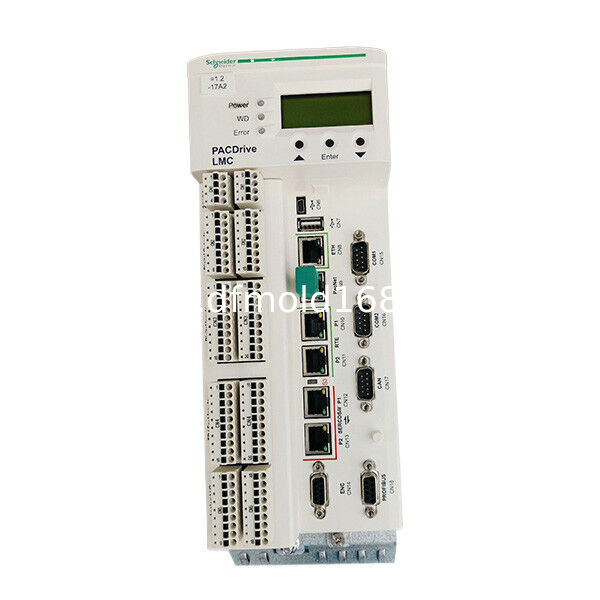

Schneider Electric LMC402CAA10000 Motion Controller: A Comprehensive Overview

Introduction

The Schneider Electric LMC402CAA10000 is a sophisticated motion controller that forms part of the renowned PacDrive 3 range. Designed to automate machines and production lines, this controller offers advanced capabilities for managing complex motion control tasks with precision and efficiency. This detailed overview will explore the product's functions, features, advantages, suitable applications, and key specifications.

Functions and Features

Core Functionalities

The LMC402CAA10000 is engineered to handle multi-axis motion control, making it ideal for applications requiring synchronized movement across several axes. It supports up to 16 servo axes, providing flexible and scalable performance for a variety of automation needs.

• Multi-Axis Control: The controller can manage up to 16 servo axes, facilitating synchronized motion across multiple components of a machine or production line.
• Input/Output Configuration: It includes 20 discrete inputs (with 4 dedicated for interrupt input and 16 for touch probe input), 2 analog inputs, and 16 discrete outputs. This configuration allows for comprehensive monitoring and control of machine functions.
• High-Speed Networking: With a 1ms network update rate, the controller ensures rapid communication between axes, crucial for applications requiring precise timing and synchronization.
• Scalable Performance: The PacDrive 3 LMC controllers are designed to scale, supporting up to 130 servo axes and 255 virtual axes, making them suitable for both small-scale and large-scale automation projects.

Input/Output Specifications

• Discrete Inputs:
  • Type: 20 digital inputs (IEC 61131-2 Type 1), 4 interrupt inputs, and 16 touch probe inputs.
  • Voltage Range: 0...6 V and 20...33 V DC.
  • Current: 5 mA for each type of digital input.
  • Anti-Bounce Filtering: Configurable for digital inputs (1 ms or 5 ms), touch probe inputs (100 µs), and interrupt inputs (0.1 ms or 1 ms).
• Analog Inputs:
  • Number: 2.
  • Type: Voltage analog input (-10...10 V) and current analog input (-20...20 mA).
  • Resolution: 12 bits.
  • Input Impedance: 100,000 Ohms for analog inputs and 500 Ohms for others.
• Discrete Outputs:
  • Number: 16 digital outputs and 2 analog outputs.
  • Current: 250 mA for digital outputs.
  • Maximum Leakage Current: 0.4 mA.

Connectivity

The LMC402CAA10000 provides a comprehensive suite of connectivity options to facilitate integration with various automation systems:

• Ethernet Ports: 2 x RJ45 Sercos, 2 x RJ45 RT-Ethernet (real-time), 1 x RJ45 PacNet, and 1 x RJ45 Ethernet 10/100/1000BASE-T with FTP/HTTP support.
• CAN Port: SUB-D 9 for CANopen.
• USB Port: USB type A.
• Serial Links: 1 x SUB-D 9 RS232 (COM1) and 1 x SUB-D 9 RS422/RS485 (COM2).
• Profibus DP Port: SUB-D 9.
• Master Encoder Port: SUB-D 9.

Memory and Programming

• Memory: 256 kB NVRAM and 1 GB RAM DDR3L, providing ample storage for programs and data.
• Programming Languages: Supports multiple IEC 61131-3 standard programming languages, including Function Block Diagram (FBD), Continuous Function Chart (CFC), Sequential Function Chart (SFC), Structured Text (ST), Instruction List (IL), and Ladder Diagram (LD).

Physical and Environmental Specifications

• Dimensions: 100 mm (width) x 243 mm (depth) x 310 mm (height).
• Weight: 3.5 kg.
• Power Supply: 24 V DC, with a power consumption of 36 W.
• Environmental Ratings:
  • IP Rating: IP20, protecting against solid objects larger than 12.5 mm.
  • Operating Temperature: 5…55 °C (41…131 °F).
  • Relative Humidity: 5…95% without condensation.
  • Vibration and Shock Resistance: Designed to withstand operational vibrations and shocks, ensuring reliability in industrial environments.

Certifications and Standards

The LMC402CAA10000 adheres to stringent international standards and is certified by leading regulatory bodies, ensuring safety and compatibility:

• Certifications: CULus, CSA, CE, EAC.
• Standards Compliance: CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C.

Advantages

1. Scalability: The ability to synchronize up to 130 servo axes at a 1ms network update rate allows for flexible system expansion, accommodating growing automation needs.
2. High Performance: With support for up to 255 virtual axes, the controller can manage complex motion profiles efficiently, improving machine productivity.
3. Robust Connectivity: Multiple communication ports facilitate seamless integration with a wide range of automation devices and systems.
4. Advanced Programming Capabilities: Support for multiple programming languages provides flexibility for engineers to develop tailored automation solutions.
5. Industrial Durability: Built to withstand harsh industrial environments, with appropriate IP ratings and resistance to vibrations and shocks.
6. Energy Efficiency: With a power consumption of 36 W, the controller operates efficiently, contributing to lower operational costs.

Applicable Scenarios and Industries

The Schneider Electric LMC402CAA10000 is ideally suited for various industrial automation applications where precise multi-axis control is essential. Its versatility makes it a valuable asset in the following sectors:

Packaging and Material Handling

• Conveyor Systems: The controller can manage the synchronized movement of conveyor belts and sorting mechanisms, ensuring efficient material flow.
• Robotic Packaging: Coordinates the movement of robotic arms for tasks such as picking, placing, and palletizing.

Automotive Manufacturing

• Assembly Lines: Manages the precise movement of robotic arms and other machinery involved in automotive assembly, ensuring high-quality production.
• Welding and Painting Robots: Synchronizes the motion of welding guns and painting nozzles for accurate and consistent application.

Food and Beverage Processing

• Filling and Packaging Machines: Controls the movement of filling nozzles and sealing mechanisms, ensuring precise product handling and packaging.
• Conveyor Sorting: Manages the sorting and distribution of products on conveyor belts, improving processing efficiency.

Pharmaceutical Manufacturing

• Tablet Pressing and Coating: Controls the motion of pressing and coating machinery, ensuring consistent product quality.
• Labeling and Packaging: Synchronizes the movement of labeling and packaging equipment, maintaining high standards of accuracy and hygiene.

Printing and Converting

• Web Handling: Manages the tension and speed of web materials in printing and converting processes, ensuring high-quality output.
• Cutting and Slitting Machines: Controls the precise movement of cutting and slitting blades, optimizing material utilization.

General Machine Building

• CNC Machining Centers: Coordinates the multi-axis movement of machine tools for high-precision machining operations.
• Special Purpose Machinery: Provides the flexibility to design and control custom automation solutions for specific industrial needs.

Table of Key Specifications

Conclusion

The Schneider Electric LMC402CAA10000 motion controller is a powerful and versatile solution for industrial automation, offering advanced multi-axis control capabilities, robust connectivity, and compliance with international standards. Its scalability, high performance, and durability make it suitable for a wide range of applications across various industries, from packaging and automotive manufacturing to food processing and pharmaceuticals. By leveraging the LMC402CAA10000, businesses can enhance their automation capabilities, improve productivity, and ensure consistent product quality.
