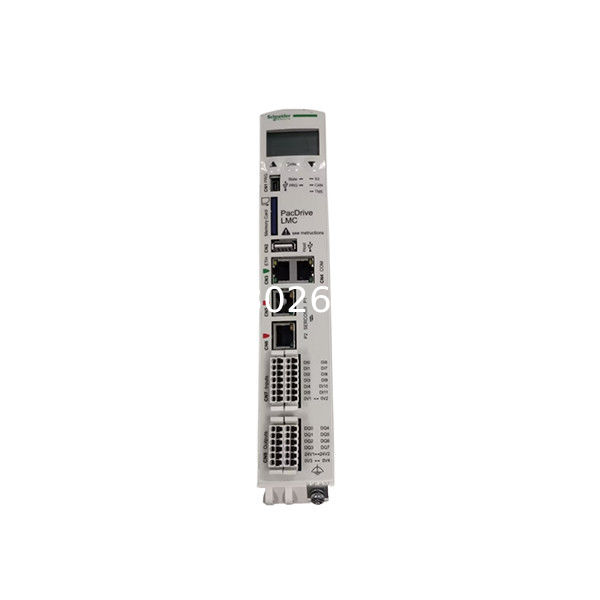

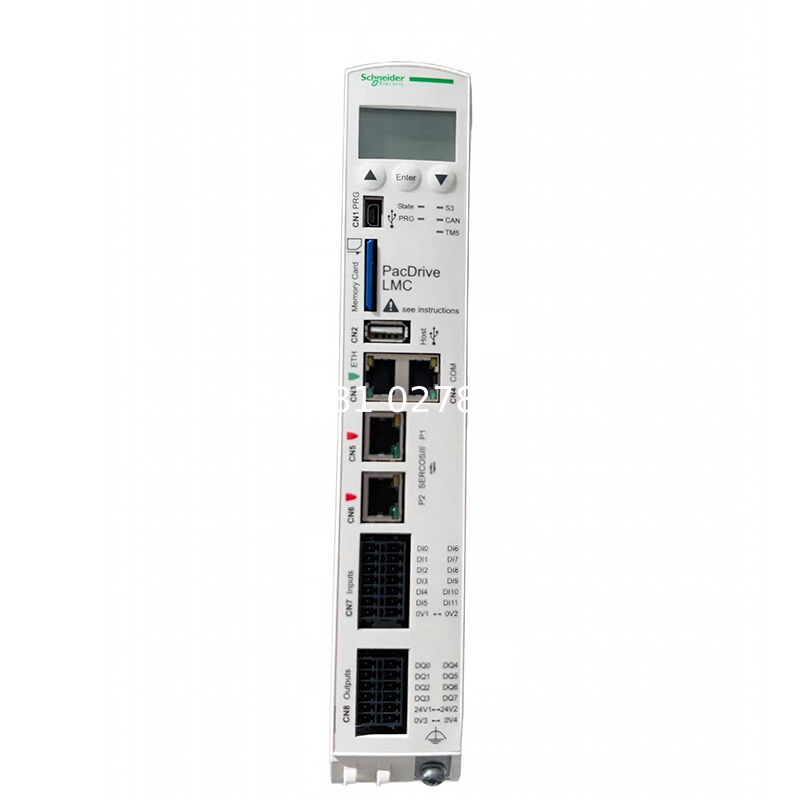

The PacDrive 3 LMC101CAA10000 is a compact motion controller for machine applications requiring coordinated control of up to four axes.
This controller is designed for machinery that combines servo motion, digital machine signals, touch-probe inputs, encoder reference signals, and automation-network communication in one controller platform. It is suitable for installations where the original machine uses the LMC101 controller architecture and matching PacDrive 3 engineering files.
The unit provides eight digital inputs, four touch-probe inputs, and eight digital outputs. The touch-probe inputs can be used for position-related machine signals such as registration marks, sensor events, or reference detection, depending on the application program.
The controller includes two Sercos interfaces for motion-network communication. It also provides Ethernet, CANopen, RS232/RS485, USB, and master-encoder connectivity for machine communication, commissioning, and connected automation devices.
This model supports one I/O expansion module. It is a motion controller only and should not be described as a servo drive, servo motor, variable frequency drive, power supply, HMI panel, or integrated safety controller.
Key Features
Motion controller for up to four axes
24 VDC operating supply
512 MB DDR2 RAM
128 kB NVRAM
Eight digital inputs
Four touch-probe inputs
Eight digital outputs
500 mA output current per channel
Two Sercos motion interfaces
Ethernet interface with FTP and HTTP support
CANopen communication port
RS232 and RS485 serial communication
USB Type A interface
Master encoder connection
One I/O expansion module support
IP20 cabinet installation
Accessory kit included
Typical Applications
Compact packaging machinery
Labeling machines
Cartoning equipment
Small assembly systems
Servo-driven feeder systems
Printing and converting machines
Indexing equipment
Material handling machinery
Four-axis motion retrofit projects
Legacy PacDrive 3 controller replacement
Installation Notes
Confirm that the installed controller model is LMC101CAA10000 before replacement.
Back up the existing application program, motion parameters, Sercos configuration, encoder settings, CANopen node addresses, communication settings, and I/O assignments before removing the original controller.
Verify the number of connected axes and confirm that the machine uses no more than four controlled axes with this controller configuration.
Check the existing Sercos wiring, Ethernet connection, CANopen wiring, serial settings, touch-probe signals, digital I/O wiring, and master-encoder connection before commissioning.
Install the controller in a grounded electrical cabinet with appropriate cable shielding, ventilation, and separation between power cables and signal cables.
FAQ
Q
What type of product is LMC101CAA10000
A
It is a PacDrive 3 motion controller for machine automation systems
Q
How many motion axes can this controller support
A
It supports up to four motion axes
Q
What supply voltage does it require
A
It operates from a 24 VDC power supply
Q
How many digital inputs are included
A
It includes eight digital inputs and four touch-probe inputs
Q
Does this controller support Sercos communication
A
Yes it includes two RJ45 interfaces for Sercos communication
Q
Does it support CANopen
A
Yes it includes one CANopen interface with a SUB-D 9 connector
Q
Is this model an integrated safety controller
A
No it is a motion controller and should not be described as an integrated safety controller unless separate safety hardware is confirmed in the machine system
