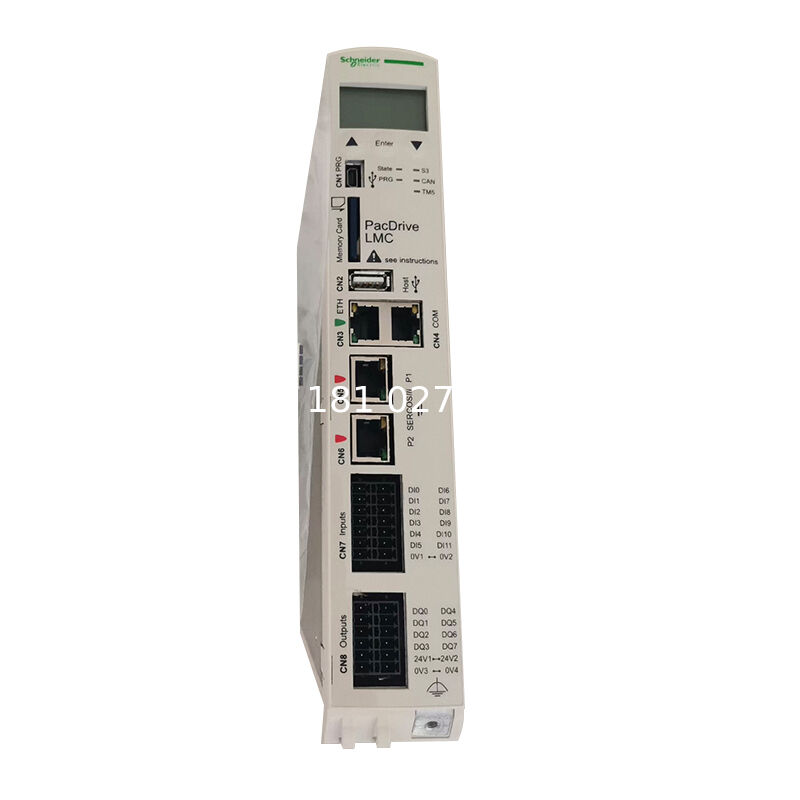

The PacDrive 3 LMC201CAA10000 is an 8-axis motion controller designed for synchronized machine automation applications requiring coordinated servo control, digital I/O management, and industrial communication.
This controller provides a compact solution for machines that require multiple coordinated axes while maintaining flexible communication with drives, encoders, field devices, and external automation components.
The LMC201CAA10000 supports up to eight motion axes and includes eight digital inputs, four Touch Probe inputs, and eight digital outputs. These I/O resources allow the controller to manage machine sensors, registration signals, actuators, and synchronization events.
The controller includes 512 MB DDR2 RAM and 128 kB NVRAM for application execution and retained machine data. Multiple programming languages including LD, ST, FBD, CFC, SFC, and IL are supported for flexible machine application development.
Communication interfaces include two Sercos ports, Ethernet, CANopen, RS232/RS485, USB, and a master encoder interface. This makes the controller suitable for complex machine architectures requiring synchronized motion and distributed control.
This product is a motion controller only. It should not be described as a servo drive, servo motor, frequency inverter, power supply module, HMI panel, or safety controller.
Key Features
8-axis motion controller
24 VDC supply voltage
512 MB DDR2 RAM
128 kB NVRAM
Eight digital inputs
Four Touch Probe inputs
Eight digital outputs
500 mA digital output current
Two Sercos communication ports
Ethernet communication
CANopen interface
RS232 and RS485 communication
USB Type A interface
Master encoder connection
One I/O expansion module support
Typical Applications
Packaging machinery
Assembly automation systems
Printing equipment
Material handling systems
Robotic production lines
Servo synchronization systems
High-speed indexing machines
Industrial motion retrofit projects
Multi-axis automation equipment
Installation Notes
Confirm that the original controller model is LMC201CAA10000 before replacement.
Backup the existing application program, motion parameters, Sercos configuration, encoder settings, communication addresses, and I/O assignments before removing the controller.
Verify connected servo drives, encoder wiring, CANopen devices, Ethernet configuration, and Touch Probe signals before commissioning.
Install the controller inside a suitable electrical cabinet with correct grounding, shielding, ventilation, and cable separation.
Check software compatibility and existing machine project files before restarting the system.
FAQ
Q
What type of product is LMC201CAA10000
A
It is a PacDrive 3 motion controller for multi-axis machine automation
Q
How many axes can this controller support
A
It supports up to 8 motion axes
Q
What supply voltage is required
A
It operates from a 24 VDC supply
Q
How many digital inputs are available
A
It includes 8 digital inputs and 4 Touch Probe inputs
Q
Does it support Sercos communication
A
Yes it includes two Sercos communication interfaces
Q
Does it support CANopen
A
Yes it includes one CANopen interface
Q
Is this a servo drive
A
No it is a motion controller and requires compatible servo drives for motor control
