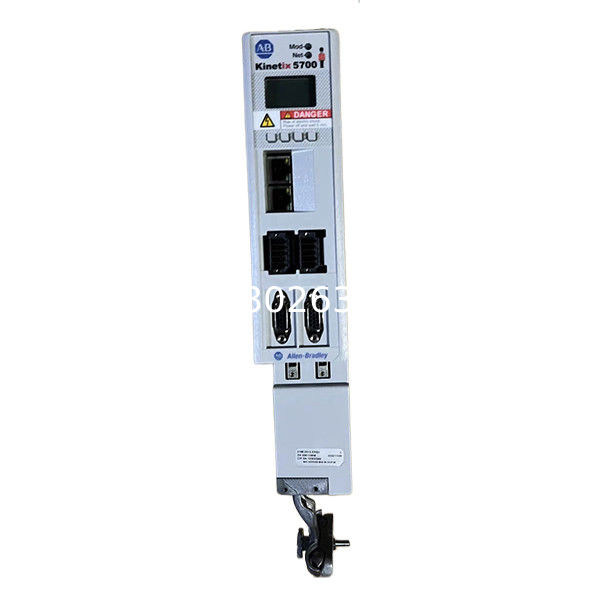

Allen-Bradley 2198-D020-ERS3 Servo Drive:

Comprehensive Overview

The Allen-Bradley 2198-D020-ERS3 is a high-performance dual-axis servo drive from the Kinetic® 5700 series, designed for industrial automation applications requiring precision motion control, energy efficiency, and advanced safety features. This drive integrates seamlessly with EtherNet/IP and Studio 5000® for simplified commissioning and superior machine performance. Below is a detailed analysis of its specifications, key features, advantages over competitors, and applications.

1. Product Overview

The 2198-D020-ERS3 is engineered for high-power, multi-axis motion control in demanding industrial environments. It supports 200V–480V AC input and delivers high torque precision, making it ideal for applications in packaging, automotive, and material handling. Its compact design (55 mm width) and integrated safety functions set it apart from conventional servo drives.

2. Key Specifications & Performance Features

The following table summarizes the technical specifications and performance advantages of the 2198-D020-ERS3:

3. Key Differentiators vs. Competing Drives

The 2198-D020-ERS3 outperforms competitors with its integrated safety, space efficiency, and tuning-less operation. Below is a comparison with a typical competitor:

4. Target Applications

The 2198-D020-ERS3 is ideal for high-performance motion control in the following industries:

5. Why Choose the 2198-D020-ERS3?

• ✅ Faster Commissioning – Auto-tuning reduces setup time.

• ✅ Space Savings – 55 mm width allows high-density cabinet layouts.

• ✅ Energy Efficiency – Regenerative braking lowers operational costs.

• ✅ Integrated Safety – No need for external safety modules.

• ✅ Reduced Wiring – Single-cable technology simplifies installation.

6. Conclusion

The Allen-Bradley 2198-D020-ERS3 is a cutting-edge servo drive that combines high power density, advanced safety, and energy efficiency in a compact form factor. Its EtherNet/IP integration, auto-tuning, and regenerative braking make it a superior choice for modern industrial automation.
