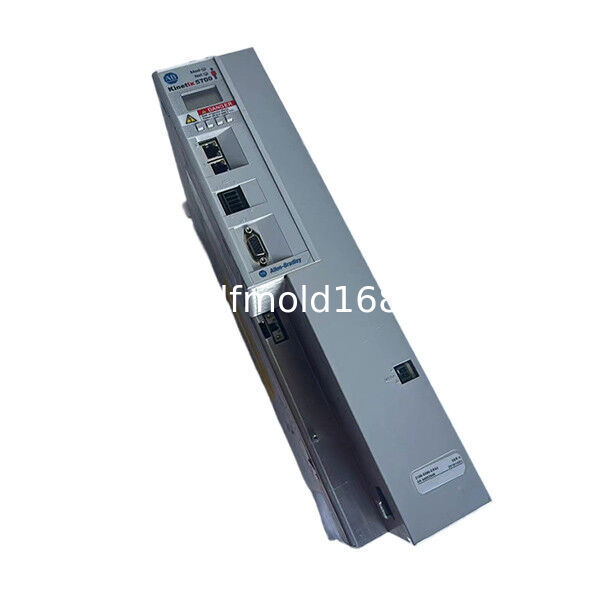

The 2198-S130-ERS3 is a high-power single-axis servo inverter designed for demanding motion control systems requiring high current output and reliable EtherNet/IP integration.
With 65 A continuous output current and up to 44.9 kW power capability at 480 V input, this module is designed for large servo axes used in advanced automation equipment.
The shared DC-bus architecture allows multiple inverter modules to operate within one coordinated motion system, reducing wiring complexity and improving cabinet utilization.
The dual Ethernet ports support EtherNet/IP communication and flexible network installation, while integrated Safe Torque Off improves machine safety integration.
Key Features
- 65 A continuous current output
- Single-axis servo control
- 44.9 kW power capability
- Shared DC-bus architecture
- Dual EtherNet/IP ports
- Safe Torque Off function
- Compact 85 mm module width
- High-performance motion control
Typical Applications
- Large packaging machines
- Automotive production equipment
- Material handling systems
- Robotics applications
- High-performance automation lines
High-Power Single-Axis Design
Unlike dual-axis compact modules, the 2198-S130-ERS3 is designed for one high-power servo axis.
Advantages:
- Higher current capacity
- Better support for large motors
- Flexible multi-axis cabinet design
- Simplified axis expansion
Shared DC-Bus Architecture
The inverter module requires a compatible DC-bus power supply.
System configuration normally includes:
- DC-bus supply module
- Single-axis inverter modules
- Servo motors
- Motion controller
- Feedback and power cables
EtherNet/IP Motion Integration
Two Ethernet ports provide:
- Integrated motion communication
- Real-time diagnostics
- Network flexibility
- Linear or DLR topology support
2198-S130-ERS3 vs 2198-S086-ERS3
2198-S130-ERS3
65 A continuous current
85 mm width
44.9 kW power capability
2198-S086-ERS3
43 A continuous current
Lower power configuration
Suitable for smaller servo axes
Installation Notes
- Verify DC-bus power compatibility
- Confirm motor current requirements
- Check feedback device compatibility
- Configure EtherNet/IP parameters
- Verify STO safety wiring
- Allow DC-bus discharge before maintenance
FAQ
Q1: Is 2198-S130-ERS3 a dual-axis drive?
A1: No. It is a single-axis servo inverter.
Q2: What is the continuous output current?
A2: It provides 65 A continuous output current.
Q3: Does it accept direct AC motor input?
A3: No. It operates as part of a shared DC-bus servo system.
Q4: How many Ethernet ports are available?
A4: It provides two EtherNet/IP ports.
Q5: Does it support safety functions?
A5: Yes. It includes Safe Torque Off functionality.
