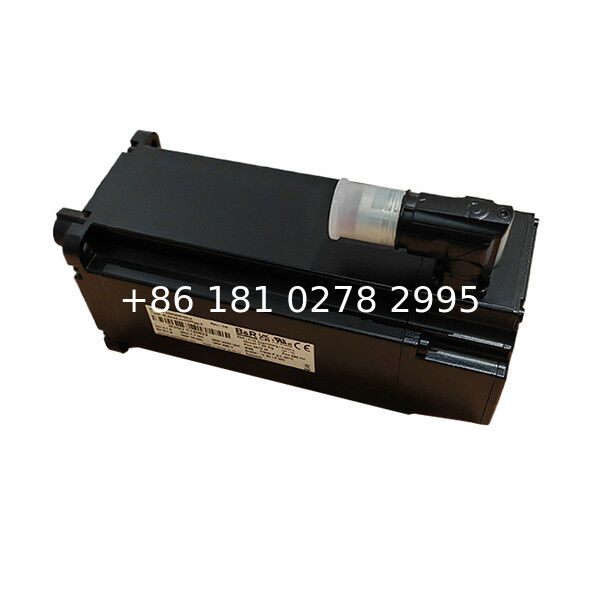

The B&R 8LSA35.EA030D000-3 is an 8LS Series synchronous servo motor used in compact industrial motion control systems. It is designed for applications that require accurate positioning, stable speed response, and reliable torque output in a small motor frame.

This motor has 3000rpm nominal speed, 2.1Nm nominal torque, 660W nominal power, 2.3Nm stall torque, and 9.2Nm maximum torque. With 400VAC motor class, 4 pole pairs, and self-cooling Type A construction, the 8LSA35.EA030D000-3 is suitable for light and medium servo axes in packaging machinery, labeling equipment, inspection systems, transfer mechanisms, and small automated machines.

The motor uses a smooth shaft d=14mm k6 × 30mm without oil seal, 80mm centering diameter with j6 fit, and 91.3mm flange square dimension. It also includes an angled swivel connector using the ytec connector system, which helps with cable routing inside compact machine layouts.

The 8LSA35.EA030D000-3 is supplied without holding brake. The brake holding torque is 0Nm, making it suitable for horizontal axes, rotary axes, conveyor axes, or positioning axes where shaft holding after power-off is not required. If the original application uses a vertical axis or requires holding torque during stop conditions, please confirm whether a brake motor version is required.

For replacement applications, the complete model number 8LSA35.EA030D000-3 must be checked carefully. Similar 8LSA35 motors may have different encoder types, brake configurations, shaft options, connector directions, flange sizes, or special option codes. Before ordering, please confirm the original motor nameplate, servo drive model, motor cable, encoder cable, shaft type, brake requirement, and mechanical mounting dimensions.

Dengfeng supplies B&R 8LS servo motors, ACOPOS servo drives, ACOPOSmulti modules, ACOPOS P3 drives, motor cables, encoder cables, PLC modules, industrial PCs, power panels, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, shaft condition, connector condition, encoder configuration, appearance, and packaging according to your request.

Key Features

• B&R 8LSA35.EA030D000-3 synchronous servo motor
• 3000rpm nominal speed and 9000rpm maximum speed
• 2.1Nm nominal torque and 2.3Nm stall torque
• 9.2Nm maximum torque for compact servo axis operation
• 660W nominal power and 1.4A nominal current
• Self-cooling Type A construction
• 400VAC motor class with 4 pole pairs
• Smooth shaft d=14mm k6 × 30mm, without oil seal
• EA inductive 32-line single-turn V2 encoder
• Angled swivel ytec connector system
• Without holding brake, 0Nm brake holding torque
• Suitable for compact servo axes and automation replacement projects

Typical Applications

The B&R 8LSA35.EA030D000-3 servo motor can be used in:

• Packaging machinery
• Labeling machines
• Small positioning systems
• Conveyor and transfer axes
• Inspection and testing equipment
• Printing machinery
• Automated assembly equipment
• Material handling systems
• Compact servo axis control
• Servo motor replacement and repair projects

FAQ

Q1: What is B&R 8LSA35.EA030D000-3?
A1: It is an 8LS Series synchronous servo motor with 3000rpm nominal speed and 2.1Nm nominal torque for compact industrial motion control systems.

Q2: What is the nominal power of this motor?
A2: The nominal power is 660W.

Q3: What is the rated torque of 8LSA35.EA030D000-3?
A3: The nominal torque is 2.1Nm, the stall torque is 2.3Nm, and the maximum torque is 9.2Nm.

Q4: Does this motor include a holding brake?
A4: No. This version is supplied without holding brake, and the brake holding torque is 0Nm.

Q5: What encoder does this motor use?
A5: It uses an EA inductive 32-line single-turn V2 encoder.

Q6: What shaft type does this model use?
A6: It uses a smooth shaft d=14mm k6 × 30mm without oil seal.

Q7: What connector type does it use?
A7: It uses a ytec connector system with angled swivel connection direction.

Q8: What servo drive family is commonly used with this motor?
A8: It can be used with compatible ACOPOS, ACOPOSmulti, or ACOPOS P3 drive systems, depending on the actual machine configuration.

Q9: Can 8LSA35.EA030D000-3 be used as a replacement motor?
A9: Yes. It can be used for replacement when the complete model number, encoder type, shaft type, brake requirement, connector direction, servo drive model, and mounting dimensions are compatible.

Q10: What should I check before ordering?
A10: Please confirm the original motor nameplate, servo drive model, motor cable, encoder cable, shaft type, brake requirement, flange size, centering diameter, and machine installation space.

Q11: Can you help confirm compatibility?
A11: Yes. Please send clear photos of the motor nameplate, servo drive label, cable connectors, and installation position before ordering.
