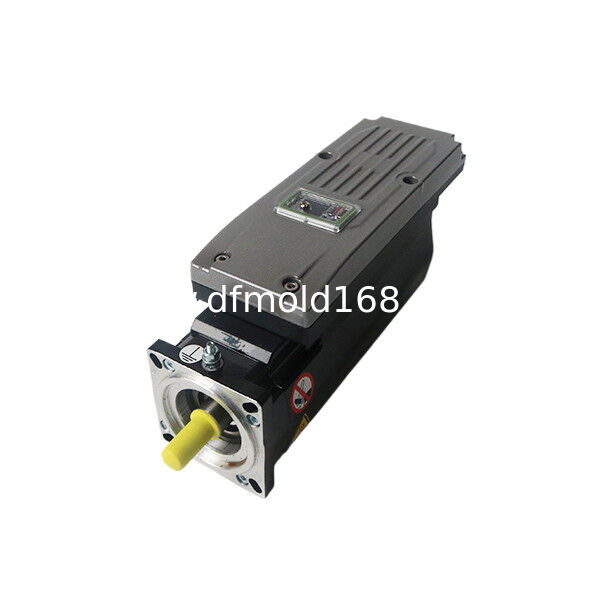

The ILM0701P11A0000 is a Lexium 62 ILM integrated servo drive designed for compact machine automation systems requiring reliable motion control, mechanical coupling stability and decentralized axis installation.
Unlike conventional servo motors that require a separate cabinet-mounted amplifier, the Lexium 62 ILM combines the servo motor, drive electronics and feedback system into one integrated machine-axis unit. This architecture helps simplify multi-axis machine design by reducing individual drive modules and cabinet wiring requirements.
The ILM0701P11A0000 uses a 70 mm flange size with a one-stack motor configuration. It provides 1.1 Nm continuous torque and supports speeds up to 6000 rpm, making it suitable for lightweight and high-cycle motion applications.
A key difference of this model is its keyed shaft design. Compared with smooth-shaft ILM versions, the keyed shaft provides positive mechanical engagement with compatible couplings, pulleys and transmission components where torque transfer reliability is important.
The motor uses an absolute singleturn SinCos Hiperface feedback system with 128 SinCos periods. This feedback provides precise rotor-position information for closed-loop speed regulation, torque control and accurate axis synchronization.
The ILM0701P11A0000 does not include a holding brake. It is intended for applications where the axis remains mechanically stable without brake assistance, such as horizontal transfer axes, rotary indexing mechanisms and balanced machine movements.
The integrated drive architecture allows the unit to be mounted close to the machine axis, reducing cabinet space requirements and simplifying installation for distributed servo systems.
Because ILM models share similar external designs, replacement selection must always be based on the complete model number. Shaft type, encoder configuration and brake options must match the original machine requirements.
Key Features
Integrated servo motor and drive electronics
70 mm compact motor frame
1 stack motor construction
1.1 Nm continuous torque
6000 rpm maximum speed
Keyed shaft mechanical interface
Absolute singleturn SinCos feedback
128 SinCos periods encoder
No holding brake
Distributed servo architecture
Compact machine-axis installation
Reduced cabinet wiring requirements
Suitable for high-cycle automation equipment
Designed for Lexium 62 ILM systems
Typical Applications
Packaging machinery
Cartoning systems
Conveyor synchronization
Indexing equipment
Material handling systems
Assembly automation
Labeling machines
Printing machinery
Feeding mechanisms
Small robotic axes
Electronic cam applications
Production-line transfer units
OEM machine modules
High-speed repetitive motion equipment
Keyed Shaft Advantage
The ILM0701P11A0000 uses a keyed shaft configuration.
Compared with smooth-shaft versions, the keyed shaft provides mechanical locking between the motor shaft and connected components.
Typical applications include:
Timing belt drives
Gear couplings
Mechanical transmission systems
Positioning mechanisms
Indexing tables
Conveyor drive assemblies
Advantages of keyed shaft connection:
Improved torque transmission
Reduced coupling slip risk
Suitable for repeated acceleration cycles
Reliable mechanical positioning
Simplified mechanical assembly
The coupling design must match:
Shaft diameter
Key dimensions
Maximum torque
Radial load
Axial load
Alignment requirements
Singleturn Absolute Feedback
The integrated drive uses a SinCos Singleturn 128 feedback system.
The encoder provides position information within one motor revolution.
Benefits include:
Accurate motor commutation
Stable speed control
Precise torque regulation
Fast servo response
Reliable axis synchronization
Repeatable positioning performance
Compared with multiturn encoder versions, singleturn feedback provides a simpler configuration for applications where the mechanical axis does not require multi-revolution absolute position tracking.
No-Brake Configuration
This model does not include a holding brake.
It is suitable for applications where:
The axis is horizontally mounted
The load is mechanically supported
The machine does not require holding torque after power removal
External mechanical locking is available
Typical no-brake applications:
Conveyor axes
Rotary indexing units
Packaging mechanisms
Feeding systems
Light-duty positioning axes
Additional evaluation is required for:
Vertical axes
Suspended loads
Gravity-driven mechanisms
Safety-related holding applications
Distributed Drive Architecture
The Lexium 62 ILM design integrates multiple motion components into one unit:
Servo motor
Drive electronics
Feedback system
Axis communication interface
This architecture can reduce:
Separate servo amplifier modules
Cabinet installation space
Individual motor cables
Machine wiring complexity
The complete system still requires compatible:
Lexium 62 power supply
Connection modules
Hybrid cables
Motion controller
Machine software
System Compatibility
The ILM0701P11A0000 is designed for compatible Lexium 62 ILM and PacDrive 3 systems.
A complete machine installation may require:
Lexium 62 power modules
ILM connection components
Approved cables
Motion controller hardware
Machine safety system
Correct configuration software
It should not be operated as a conventional standalone three-phase servo motor.
Replacement Identification
Correct Model Number
ILM0701P11A0000
Important Configuration
70 mm frame
1 Stack
Keyed Shaft
Singleturn SinCos Feedback
No Brake
Do not replace based only on:
1.1 Nm torque
6000 rpm speed
70 mm size
Similar appearance
Related ILM models may differ in:
Shaft design
Encoder type
Brake configuration
Motor length
Protection rating
Always compare the complete model suffix before replacement.
Installation Guidelines
Verify the complete model number before installation.
Disconnect machine power before replacement.
Allow DC bus discharge time.
Protect the encoder and connector area.
Install the correct keyed coupling.
Confirm shaft alignment.
Check mechanical fastening torque.
Use compatible Lexium system cables.
Verify feedback configuration.
Confirm motor parameters in the controller.
Test movement at reduced speed.
Verify acceleration and positioning accuracy.
Installation should be performed by qualified automation technicians.
FAQ
Q1: What is ILM0701P11A0000?
A1: It is a Lexium 62 ILM integrated servo drive combining a brushless servo motor, drive electronics and absolute singleturn feedback.
Q2: What is the torque rating?
A2: The continuous torque rating is 1.1 Nm.
Q3: What is the maximum speed?
A3: The maximum speed is 6000 rpm.
Q4: Does this model have a keyed shaft?
A4: Yes. ILM0701P11A0000 uses a keyed shaft design.
Q5: Does it include a holding brake?
A5: No. This configuration does not include a brake.
Q6: What feedback system does it use?
A6: It uses an absolute singleturn SinCos Hiperface feedback system with 128 SinCos periods.
Q7: Is it a normal standalone servo motor?
A7: No. It is an integrated servo drive designed for Lexium 62 ILM distributed motion systems.
Q8: What is the advantage of keyed shaft design?
A8: A keyed shaft provides positive mechanical engagement and reliable torque transmission with compatible couplings.
Q9: Can ILM0701P21A0000 replace this model?
A9: Not automatically. The P21 version uses a different shaft and environmental configuration. The complete model must match.
Q10: Can it be used for vertical movement?
A10: Additional mechanical safety evaluation is required because this model does not include a holding brake.
Q11: Does it require a separate servo amplifier?
A11: No. The drive electronics are integrated into the motor assembly.
Q12: What should be checked before ordering?
A12: Confirm the complete model number, shaft type, feedback type, brake configuration and machine controller compatibility.
