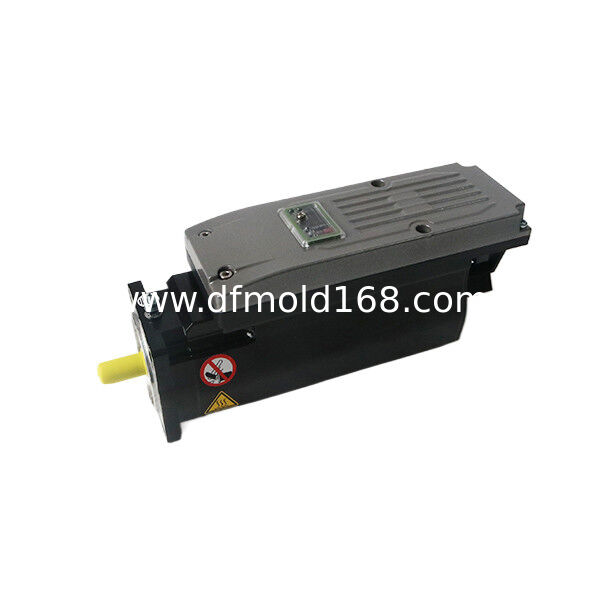

The ILM0701P11A0000 is a Lexium 62 ILM integrated servo drive developed for machines that require compact decentralized motion control.
Unlike a conventional servo motor that depends on a separately mounted cabinet drive, this unit combines the servo motor, power electronics and feedback functions within one machine-mounted assembly. This architecture can reduce the amount of individual drive hardware required inside the electrical cabinet and simplify machine-axis organization.
The ILM0701P11A0000 uses a 70 mm motor frame with a one-stack construction. It provides 1.1 Nm continuous torque and supports motor speeds up to 6000 rpm, making it suitable for lightweight and medium-duty axes with rapid repetitive movement.
This specific version is equipped with a keyed output shaft. The key helps provide positive mechanical engagement with compatible couplings, pulleys or machine transmission components when the connected mechanism is designed for a keyed shaft.
Position feedback is provided by a SinCos singleturn encoder configuration. The feedback system supplies motor position information required for closed-loop servo control within the compatible Lexium 62 ILM architecture.
The model is supplied without a holding brake. It is best suited to horizontal or mechanically secured axes where the load does not require the motor to hold its position after drive power is removed.
Because the drive electronics are integrated with the motor, replacement selection must be based on the complete ILM model number. A motor with a similar frame or torque rating may have a different shaft, encoder, brake or internal drive configuration.
The ILM0701P11A0000 is commonly considered for packaging machinery, handling equipment and synchronized production systems that use multiple distributed servo axes.
Key Features
Integrated motor and servo drive design
70 mm compact motor frame
One-stack motor construction
1.1 Nm continuous torque
Maximum speed up to 6000 rpm
Keyed output shaft
SinCos singleturn position feedback
No holding brake
Suitable for distributed motion systems
Reduces separate cabinet drive hardware
Designed for repetitive machine-axis movement
Model-specific Lexium 62 ILM replacement
Typical Applications
Packaging machinery
Cartoning equipment
Flow-wrapping machines
Labeling systems
Product handling axes
Conveyor synchronization
Pick-and-place mechanisms
Feeding and indexing systems
Filling and sealing equipment
Printing and converting machines
Automated assembly equipment
Distributed multi-axis machinery
Compact production modules
High-cycle industrial machines
Integrated Drive Architecture
The ILM0701P11A0000 is not only a standalone servo motor.
The integrated design combines important motion components in one axis-mounted unit:
Brushless servo motor
Power-stage electronics
Motor feedback system
Internal drive control hardware
Machine-side connection interface
This distributed arrangement can help machine designers reduce:
Individual servo drives inside the cabinet
Long motor power-cable runs
Cabinet wiring density
Panel space used by separate axis modules
The complete Lexium 62 ILM system still requires the correct power-supply modules, connection modules, cables and compatible motion controller.
Mechanical Shaft Configuration
This model uses a keyed shaft.
A keyed shaft may be suitable for:
Timing-belt pulleys
Gearbox couplings
Mechanical drive hubs
Indexing mechanisms
Conveyor transmission components
Before installation, confirm:
Shaft diameter
Key dimensions
Coupling design
Permitted radial load
Permitted axial load
Alignment accuracy
The coupling must be installed without excessive force or misalignment.
Encoder and Feedback Design
The ILM0701P11A0000 uses a SinCos singleturn feedback configuration.
The encoder supports closed-loop control by providing rotor-position information to the integrated drive system.
This feedback is important for:
Controlled acceleration
Controlled deceleration
Speed regulation
Torque response
Axis synchronization
Repeatable positioning
Singleturn feedback identifies the motor position within one mechanical revolution. Machine homing or reference procedures may still be required depending on the application and controller setup.
No-Brake Configuration
This model does not include a motor holding brake.
It is most appropriate for applications where:
The axis is horizontal
The load is mechanically supported
Holding position after power removal is unnecessary
An external mechanical stop is provided
The machine design prevents uncontrolled load movement
Extra engineering review is required for:
Vertical axes
Suspended loads
Lifting mechanisms
Gravity-loaded systems
Safety-related holding applications
A motor holding brake is not a substitute for a safety brake unless the complete machine design specifically permits that function.
System Compatibility
The ILM0701P11A0000 is designed for the Lexium 62 ILM distributed servo system.
A complete operating system may require compatible:
Lexium 62 power supply
ILM connection module
Hybrid or system cables
Motion controller
Machine-control software
Safety architecture
Mechanical coupling
Do not connect the integrated drive as though it were a conventional three-phase standalone motor.
Compatibility should be checked using the complete machine electrical design and original equipment documentation.
Replacement Identification
Correct Model Number
ILM0701P11A0000
Important Configuration Elements
70 mm frame
One-stack length
Keyed shaft
SinCos singleturn 128 feedback
No brake
Do not select a replacement using only:
1.1 Nm torque
6000 rpm speed
Lexium 62 ILM series name
Similar external appearance
Related ILM models may differ in:
Motor length
Continuous torque
Shaft type
Encoder type
Holding brake
Connector arrangement
Electrical configuration
The complete model suffix must be verified before ordering.
Installation Guidelines
Disconnect all machine power before replacement.
Allow the DC bus to discharge fully.
Verify the exact model number on the nameplate.
Support the motor during mechanical removal.
Do not strike the shaft or encoder assembly.
Check coupling and shaft alignment.
Do not force the connectors into position.
Use the specified Lexium 62 ILM cables.
Confirm the no-brake application is mechanically safe.
Check controller and motor configuration after installation.
Perform homing or axis-reference procedures when required.
Test the axis at low speed before production operation.
Installation should be completed by qualified motion-control personnel.
FAQ
Q1: What is the ILM0701P11A0000?
A1: It is a Lexium 62 ILM integrated servo drive that combines a brushless servo motor, drive electronics and feedback system in one machine-mounted unit.
Q2: What is its continuous torque?
A2: The continuous torque rating is 1.1 Nm.
Q3: What is the maximum motor speed?
A3: The specified maximum speed is 6000 rpm.
Q4: Does the motor have a keyed shaft?
A4: Yes. This configuration uses a keyed output shaft.
Q5: Does ILM0701P11A0000 include a holding brake?
A5: No. It is a no-brake configuration.
Q6: What feedback system is installed?
A6: It uses a SinCos singleturn encoder configuration identified as singleturn 128.
Q7: Is it a standard standalone servo motor?
A7: No. It is an integrated drive intended for operation within the compatible Lexium 62 ILM distributed servo system.
Q8: Can it be used on a vertical axis?
A8: Extra engineering review is required because this model has no holding brake. The load must remain mechanically safe when power is removed.
Q9: Can another 1.1 Nm ILM motor replace it?
A9: Not automatically. The frame, stack length, shaft, encoder, brake and complete suffix must also match.
Q10: Does it need a separate cabinet servo drive?
A10: The drive electronics are integrated into the motor assembly, but the system still requires the correct power supply, connection modules, controller and cables.
Q11: Is ILM0701P11F0000 the same model?
A11: No. It is a different complete model number. The product page and quotation should use ILM0701P11A0000 only.
Q12: What information should be provided before ordering?
A12: Please provide the original nameplate, complete model number, machine model, controller type and photographs of the connectors and shaft.
