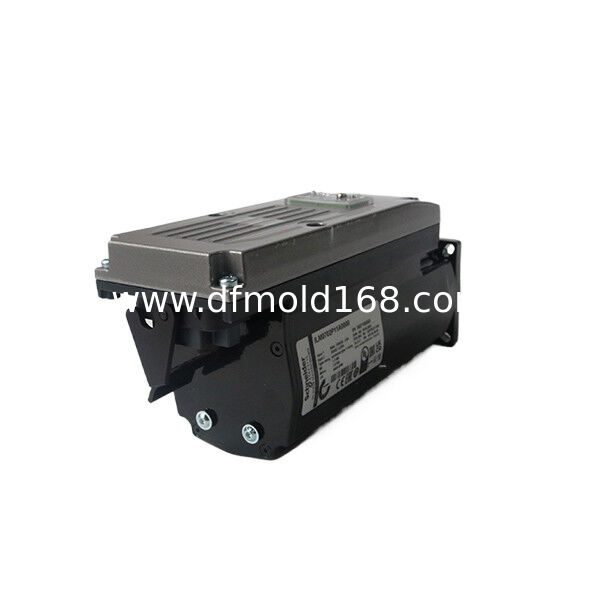

The ILM0702P01A0000 is a two-stack integrated servo motor developed for motion axes that require higher torque and acceleration capability within a compact 70 mm flange format. It combines the motor, electronic drive and absolute position feedback in one axis unit.
This specific configuration uses absolute single-turn SinCos feedback, an untapped 11 mm smooth shaft and a brake-free mechanical design. These characteristics distinguish it from multiturn, keyed-shaft and brake-equipped versions with similar external construction.
The motor delivers 1.7 Nm continuous stall torque and up to 7.6 Nm peak stall torque. Its nominal operating point is 1.15 Nm at 6000 rpm, producing 720 W nominal output power. The high peak-to-nominal torque ratio supports machinery with short acceleration cycles and rapidly changing speed commands.
Two motor stacks provide greater torque capacity than shorter one-stack configurations while retaining the same 70 mm flange size. The unit measures 226 mm in overall length and uses natural-convection cooling.
Because the ILM0702P01A0000 does not contain a holding brake, load-retention requirements must be evaluated separately, particularly on vertical or gravity-loaded axes.
Key Features
- Integrated motor and electronic drive construction
- Two-stack motor configuration
- 1.7 Nm continuous stall torque
- 7.6 Nm peak stall torque
- 1.15 Nm nominal torque
- 6000 rpm nominal speed
- 720 W nominal output power
- Absolute single-turn SinCos feedback
- 128-period feedback resolution
- Untapped 11 mm smooth shaft
- Brake-free configuration
- Compact 70 mm mounting flange
- Natural-convection cooling
- IP54 enclosure protection
- Suitable for dynamic multi-axis machinery
Configuration Difference
The ILM0702P01A0000 is identified by four important configuration details:
- Two motor stacks
- Absolute single-turn feedback
- Untapped smooth shaft
- No integrated holding brake
These details differentiate it from shorter lower-torque versions and from visually similar motors using multiturn feedback, keyed shafts or holding brakes.
Typical Applications
- Packaging machine feed axes
- Horizontal conveyor positioning
- Labeling and printing machinery
- Winding and unwinding equipment
- Pick-and-place mechanisms
- Electronic assembly systems
- Rotary indexing equipment
- Material-transfer machinery
- High-speed synchronized production axes
- Replacement of compatible integrated motors
Installation and Selection Notes
Confirm the complete model number before ordering. The feedback type, shaft design, brake configuration, flange dimensions and electrical connections must match the installed machine.
The 1.7 Nm value is continuous stall torque rather than nominal operating torque. Nominal torque is 1.15 Nm at 6000 rpm, while peak stall torque is 7.6 Nm.
This model does not contain a holding brake. Vertical axes and suspended loads may require a separately designed mechanical load-holding device.
The motor is designed for a compatible distributed power and control architecture. It should not be connected to an arbitrary standalone servo drive.
Frequently Asked Questions
1. What distinguishes ILM0702P01A0000 from similar models?
It combines two motor stacks, single-turn feedback, an 11 mm smooth shaft and no holding brake. These four details should be checked when selecting a replacement.
2. Is 1.7 Nm the nominal operating torque?
No. The continuous stall torque is 1.7 Nm. Nominal torque is 1.15 Nm, while peak stall torque is 7.6 Nm.
3. What is the nominal output power?
The nominal output power is 720 W at a nominal speed of 6000 rpm and nominal torque of 1.15 Nm.
4. Does this model include a holding brake?
No. The ILM0702P01A0000 is supplied without a holding brake. Applications requiring load retention must use an appropriately designed external solution.
5. Does it use single-turn or multiturn feedback?
It uses absolute single-turn SinCos feedback with 128-period resolution. It should not be described as a multiturn motor.
6. What shaft configuration does it use?
It has an untapped smooth shaft measuring 11 mm in diameter and 23 mm in length. It is not a keyed-shaft configuration.
7. Is this model suitable for vertical axes?
It may provide the required motion performance, but it has no integrated holding brake. Vertical-axis use requires a separate load-retention and safety assessment.
8. What is the protection rating?
The motor is rated IP54, providing limited dust protection and resistance to water splashes. It is not intended for immersion or high-pressure washdown.
9. Can it replace any 70 mm servo motor?
No. The complete model number, feedback type, shaft, brake configuration, motor length, connectors and control compatibility must all be verified.
