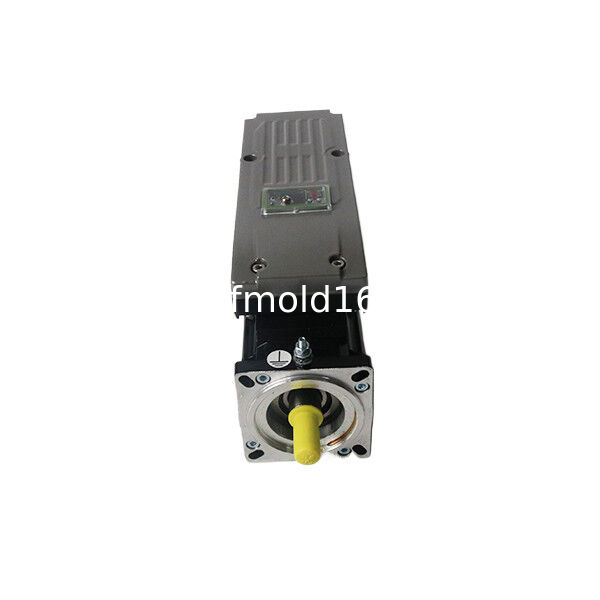

ILM0701P02F0000 Integrated Servo Motor 1.1Nm Multiturn Brake

The ILM0701P02F0000 is a compact integrated servo motor developed for distributed motion-control applications requiring precise position feedback and reliable load holding. Its integrated construction combines the motor, electronic drive, multiturn feedback and holding brake in one axis unit, helping reduce cabinet wiring and simplify machine installation.

This configuration is distinguished by its 11 mm untapped smooth shaft, absolute multiturn SinCos feedback and integrated 3 Nm holding brake. The multiturn feedback supports position tracking across multiple shaft revolutions, making the motor suitable for machinery where position information must remain consistent during repeated operating cycles.

The motor provides 1.1 Nm continuous stall torque, 3.5 Nm peak stall torque and a nominal speed of 6000 rpm. Its 70 mm flange and 219 mm overall length make it suitable for compact machine layouts where installation space is limited.

Key Features

• Integrated motor and electronic drive construction
• 1.1 Nm continuous stall torque
• 3.5 Nm peak stall torque for acceleration demands
• 6000 rpm nominal operating speed
• Absolute multiturn SinCos position feedback
• Integrated 3 Nm holding brake
• 11 mm untapped smooth shaft
• Compact 70 mm motor flange
• Natural-convection cooling
• IP54 enclosure protection
• Hybrid connection for power and signal transmission
• Suitable for synchronized multi-axis machinery

Typical Applications

• Packaging and filling machinery
• Labeling and printing equipment
• Rotary indexing mechanisms
• Electronic assembly machines
• Material-handling systems
• Pick-and-place equipment
• Compact synchronized production lines
• Replacement and maintenance of compatible integrated axes

Selection and Installation Notes

Confirm the complete model number before ordering. Shaft design, feedback configuration and brake equipment must match the existing mechanical and control-system requirements.

The 1.1 Nm value represents continuous stall torque. The nominal operating torque is 0.5 Nm, while the maximum peak stall torque is 3.5 Nm.

This motor is intended for use with a matching power supply, communication network and control architecture. Compatibility should be checked using the existing machine documentation, connector configuration and installed firmware.

Frequently Asked Questions

1. What distinguishes ILM0701P02F0000 from similar motor variants?

This configuration combines an 11 mm smooth shaft, absolute multiturn SinCos feedback and an integrated holding brake. All three details should be verified when selecting a replacement.

2. Is 1.1 Nm the nominal operating torque?

No. The continuous stall torque is 1.1 Nm. The nominal torque is 0.5 Nm at a nominal speed of 6000 rpm, and the peak stall torque is 3.5 Nm.

3. Does the motor include a holding brake?

Yes. It includes a holding brake with a rated holding torque of 3 Nm. The brake is intended primarily for holding a stationary load and should not be treated as a routine dynamic service brake.

4. What type of shaft does this model use?

It has an untapped smooth shaft measuring 11 mm in diameter and 23 mm in length. Mechanical coupling dimensions should be checked before installation.

5. What feedback system is installed?

The motor uses absolute multiturn SinCos feedback with a resolution of 128 periods. This supports position monitoring across multiple shaft revolutions.

6. Can this motor connect to any standard servo drive?

No. It is an integrated axis component designed for a compatible distributed motion-control architecture. The power supply, network connection, control hardware and firmware must all be verified.

7. What does the IP54 protection rating mean?

IP54 indicates protection against limited dust ingress and water splashes. It is not intended for continuous immersion or direct high-pressure washdown.

8. What should be checked before replacing an existing motor?

Verify the complete model number, shaft diameter, shaft style, feedback type, brake requirement, flange dimensions, connectors and control-system compatibility.
