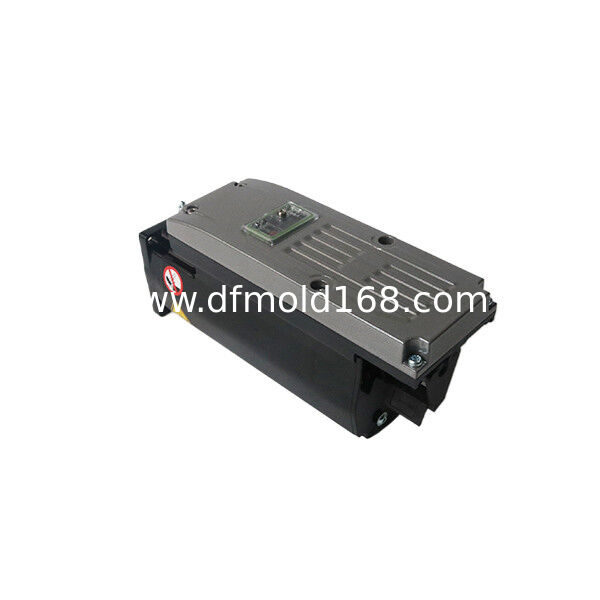

The ILM0701P22A0000 is a Lexium 62 ILM integrated servo drive designed for compact automation systems requiring absolute multiturn position feedback, sealed motor protection and decentralized motion control.
Unlike conventional servo motors that require separate cabinet-mounted amplifiers, the Lexium 62 ILM integrates the servo motor, drive electronics and feedback system into one machine-mounted unit. This distributed architecture helps reduce cabinet complexity and simplifies installation of multi-axis automation equipment.
The ILM0701P22A0000 features a compact 70 mm frame with a one-stack motor design. It provides 1.1 Nm continuous torque and supports speeds up to 6000 rpm, making it suitable for lightweight but precise machine axes.
A key advantage of this configuration is the absolute multiturn SinCos Hiperface feedback system. Compared with singleturn encoder versions, multiturn feedback can retain position information across multiple shaft revolutions, reducing the need for repeated machine homing procedures in compatible applications.
The motor uses a smooth shaft with sealing design. This configuration is suitable for precision couplings, clamp hubs and low-backlash mechanical transmission systems where accurate alignment and smooth torque transfer are required.
The IP65 protection rating provides improved resistance against dust and water ingress compared with lower-protection versions. However, the complete machine installation must still provide suitable cable sealing and environmental protection.
This model does not include a holding brake. It is intended for applications where the axis is mechanically stable without brake assistance, such as horizontal transfer axes, rotary indexing mechanisms and balanced machine movements.
The ILM0701P22A0000 is designed for Lexium 62 ILM distributed servo systems and requires compatible power modules, connection components, cables and motion controllers.
Key Features
Lexium 62 ILM integrated servo drive
70 mm compact motor frame
One-stack construction
1.1 Nm continuous torque
6000 rpm maximum speed
310 W nominal output power
Absolute multiturn SinCos feedback
128 SinCos periods encoder
Smooth sealed shaft design
IP65 protection rating
No holding brake
Integrated drive electronics
Distributed servo architecture
Compact machine installation
Suitable for precision automation
Typical Applications
Packaging machines
Format adjustment systems
Labeling equipment
Printing registration axes
Electronic cam mechanisms
Small positioning modules
Material handling systems
Assembly automation
Conveyor synchronization
Feeding mechanisms
Machine adjustment axes
OEM automation equipment
Multi-axis production machines
Compact robotic modules
Multiturn Absolute Feedback Advantage
The ILM0701P22A0000 uses absolute multiturn feedback technology.
Unlike singleturn feedback, which only identifies position within one motor revolution, multiturn feedback can track multiple shaft revolutions.
Benefits include:
Reduced homing requirements
Faster machine restart
Improved position recognition
Better repeatability after shutdown
More efficient machine changeover
Typical applications include:
Lead screw positioning
Machine width adjustment
Format change mechanisms
Rotary positioning units
Multi-revolution adjustment axes
The actual position behavior depends on:
Motion controller
Machine software
Commissioning parameters
System configuration
IP65 Sealed Motor Design
This model provides IP65 motor protection.
Advantages include:
Improved dust resistance
Protection against low-pressure water exposure
Better suitability for machine-side installation
Reduced environmental sensitivity
The complete installation must still consider:
Connector sealing
Cable routing
Mounting orientation
Cleaning conditions
Chemical exposure
Ambient temperature
Smooth Shaft Mechanical Design
The ILM0701P22A0000 uses a smooth shaft configuration.
Suitable connections include:
Precision clamp couplings
Bellows couplings
Elastomer couplings
Low-backlash transmission elements
Shrink-disc connections
Compared with keyed shaft versions, smooth shaft designs are commonly selected for:
Precision motion
Reduced mechanical backlash
Flexible coupling solutions
Accurate positioning systems
The coupling must match:
Shaft diameter
Torque requirements
Radial load
Axial load
Alignment requirements
No Holding Brake Configuration
This model does not include a holding brake.
Suitable applications:
Horizontal servo axes
Balanced mechanisms
Rotary positioning systems
Supported machine movements
Additional evaluation is required for:
Vertical axes
Suspended loads
Gravity-driven mechanisms
Safety holding applications
The servo system should not rely on motor torque after power removal unless the machine design specifically supports this.
Integrated Drive Architecture
The ILM concept combines:
Servo motor
Power electronics
Drive control
Encoder feedback
Diagnostic functions
Advantages:
Reduced cabinet space
Less individual wiring
Simplified multi-axis installation
Cleaner machine design
Shorter motor cable routing
A complete system still requires:
Lexium 62 power supply
ILM connection modules
Hybrid cables
Motion controller
Machine software
System Compatibility
The ILM0701P22A0000 is intended for compatible Lexium 62 ILM and PacDrive 3 systems.
Required components may include:
Lexium 62 power modules
Connection modules
System cables
Motion controller
Safety equipment
It should not be connected as a conventional standalone AC servo motor.
Replacement Identification
Correct Model
ILM0701P22A0000
Configuration Summary
70 mm frame
1 Stack
Smooth shaft
IP65 protection
Multiturn feedback
No brake
Do not select replacement products only by:
Torque rating
Speed rating
Frame size
Appearance
Other ILM models may differ in:
Encoder type
Brake configuration
Shaft design
Protection rating
Motor stack
Always verify the complete model number.
Installation Guidelines
Confirm the full model number before installation.
Disconnect machine power.
Allow DC bus discharge.
Protect encoder connectors.
Use correct ILM cables.
Install compatible coupling.
Check shaft alignment.
Verify multiturn encoder settings.
Confirm machine parameters.
Test movement at reduced speed.
Check positioning accuracy.
Installation should be performed by qualified automation personnel.
FAQ
Q1: What is ILM0701P22A0000?
A1: It is a Lexium 62 ILM integrated servo drive combining a servo motor, drive electronics and multiturn feedback system.
Q2: What is the torque rating?
A2: The continuous torque rating is 1.1 Nm.
Q3: What is the maximum speed?
A3: The maximum speed is 6000 rpm.
Q4: Does it include a brake?
A4: No. This configuration does not include a holding brake.
Q5: What feedback does it use?
A5: It uses an absolute multiturn SinCos Hiperface feedback system.
Q6: What is the shaft type?
A6: It uses a smooth shaft with sealing design.
Q7: What is the protection rating?
A7: The motor protection rating is IP65.
Q8: Is it a standalone servo motor?
A8: No. It is an integrated servo drive designed for Lexium 62 ILM systems.
Q9: What is the advantage of multiturn feedback?
A9: It can retain position information across multiple revolutions and reduce homing requirements in suitable applications.
Q10: Can it replace ILM0701P11A0000?
A10: Not directly. ILM0701P11A0000 uses a keyed shaft and singleturn feedback, while this model uses smooth shaft and multiturn feedback.
Q11: Can it be used on a vertical axis?
A11: Additional evaluation is required because this model does not include a holding brake.
Q12: What should be checked before ordering?
A12: Confirm model number, shaft type, feedback type, brake configuration and controller compatibility.
