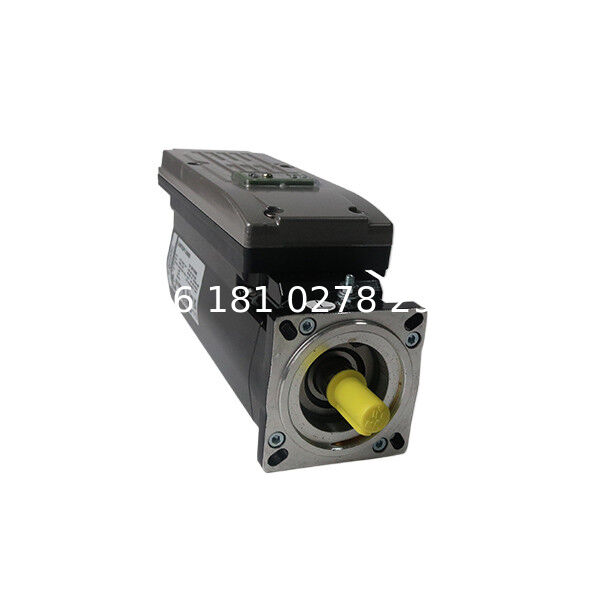

The Lexium 62 ILM ILM0702P22F0000 is a compact integrated servo motor designed for decentralized motion-control systems. The drive electronics and servo motor are combined in one housing, helping reduce cabinet space and shorten motor power cable routing.
This model uses a 70 mm frame with a two-stack motor design. It provides 720 W nominal output power, 1.15 N.m nominal torque and a nominal speed of 6000 rpm. The motor also delivers 1.7 N.m continuous stall torque and up to 7.6 N.m peak stall torque for dynamic motion applications.
ILM0702P22F0000 includes an absolute multiturn SinCos Hiperface feedback system with 128-period resolution. The multiturn encoder supports position retention across multiple shaft revolutions, making it suitable for axes that require accurate position feedback after controlled machine operation.
The motor is equipped with a 3 N.m holding brake and an IP65 enclosure. Its smooth untapped shaft is suitable for compatible couplings and mechanical transmission components. The unit uses natural convection cooling and is intended for field installation in suitable industrial machine environments.
Key Features
Lexium 62 ILM integrated servo motor design
70 mm motor frame with two-stack configuration
24 VDC rated supply voltage
720 W nominal output power
1.15 N.m nominal torque
1.7 N.m continuous stall torque
7.6 N.m peak stall torque
6000 rpm nominal speed
Absolute multiturn SinCos Hiperface feedback
128-period speed feedback resolution
Integrated 3 N.m holding brake
Smooth 11 mm shaft
IP65 protection rating
Natural convection cooling
Compact decentralized motion-control installation
Typical Applications
Packaging and filling machinery
Conveyor and transfer systems
Automated assembly equipment
Printing and converting machines
Cartoning and labeling equipment
Robotic handling systems
Material handling machines
Decentralized servo-axis retrofit projects
Installation and Selection Notes
Confirm the complete ILM0702P22F0000 part number before replacement because Lexium 62 ILM versions differ by frame size, stack length, shaft design, feedback type, brake option and protection rating.
This model has a smooth untapped 11 mm shaft, multiturn SinCos Hiperface feedback and a holding brake. Check coupling compatibility, cable routing, feedback connection, brake control wiring and machine configuration before commissioning.
The motor should be mounted using the specified international standard flange pattern. Maintain suitable airflow around the housing because this version uses natural convection cooling.
FAQ
Q: What type of product is ILM0702P22F0000?
A: It is a Lexium 62 ILM integrated servo motor with built-in drive electronics.
Q: What is the rated motor speed?
A: The nominal operating speed is 6000 rpm.
Q: Does this model include a holding brake?
A: Yes. It includes a holding brake with 3 N.m holding torque.
Q: What feedback system does this motor use?
A: It uses absolute multiturn SinCos Hiperface feedback with 128-period resolution.
Q: Is the shaft keyed?
A: No. This model uses a smooth untapped shaft.
Q: What protection rating does the motor have?
A: The enclosure protection rating is IP65.
