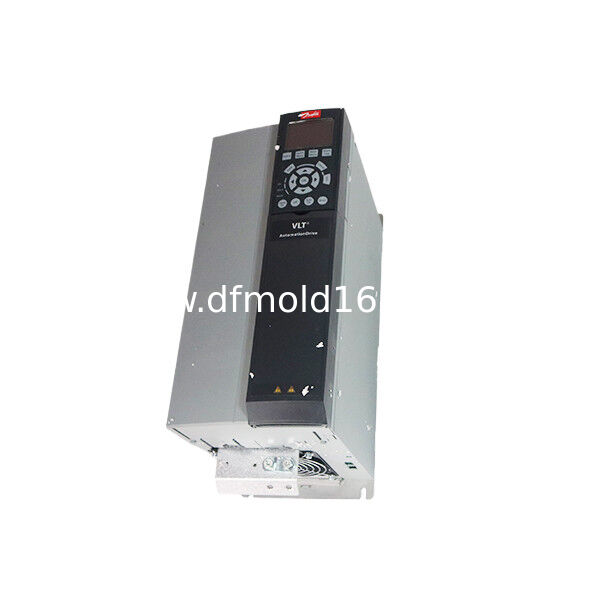

Danfoss VLT® AutomationDrive FC-302 Series: Compact Power with Industrial Connectivity - Comprehensive Analysis of Model FC-302P1K5T5E20H1XXXXXXSXXXXALBXCXXXXDX (Order Code: 131N8042)

The Danfoss VLT® AutomationDrive FC-302 series redefines versatility in industrial motor control, merging high dynamic performance with future-ready connectivity. Designed under Danfoss’s pioneering "unified drive architecture," this platform bridges the gap between standard variable-frequency drives and servo-grade precision. This technical deep dive examines the specialized 1.5 kW model FC-302P1K5T5E20H1XXXXXXSXXXXALBXCXXXXDX (Order Code: 131N8042), highlighting its unique configuration, PROFINET integration, and niche applications where compactness and network intelligence converge.

1. Series-Wide Innovations: Beyond Standard VFD Capabilities

The FC-302 series distinguishes itself through three transformative technologies:

• Adaptive Control Engine (ACE): Dynamically switches between VVC+™ sensorless vector control (160% starting torque at 0 Hz), open-loop scalar, and closed-loop vector modes based on load demands.

• PROFINET IRT Integration: Enables ≤1 ms cycle times for motion-critical applications – a key upgrade over previous PROFIBUS models.

• Thermo-Adaptive Cooling: Patented back-channel cooling (Frame A2-A6) reduces cabinet volume by 30% while maintaining full power at 50°C ambient.

• DriveLogix®: Embedded co-processor executes PLC-style ladder logic, enabling standalone control of multi-axis systems without external controllers.

2. Model Decoding: FC-302P1K5T5E20H1XXXXXXSXXXXALBXCXXXXDX

Table 1: Comprehensive Configuration Analysis

3. Critical Technical Differentiators

A. PROFINET MCA 120: The Network Nervous System

• IRT (Isochronous Real-Time): Achieves jitter <1 µs for synchronized multi-drive systems.

• TCO Reduction: Single-cable topology (IEEE 802.3) cuts wiring costs by 60% versus point-to-point analog control.

• Cloud Connectivity: OPC UA Pub/Sub support enables Industry 4.0 data streaming to Azure/AWS.

B. LCP-Less Operation Paradigm

The absence of a standard Local Control Panel (Position 19: X) necessitates:

• Danfoss MCT 10 Software: USB/wireless commissioning via PC/tablet.

• Web Server Integration: Direct HTTP access through PROFINET for parameter tuning.

• Hot-Swap LCP102 Option: Temporary clip-on panel for field troubleshooting.

C. Electro-Thermal Design Innovations

• SiC Power Stage: Silicon-carbide MOSFETs reduce switching losses by 40% at 4 kHz PWM.

• Asymmetric Heatsink: Variable fin density maintains <80°C junction temperature at full load.

4. Application-Specific Advantages

A. Distributed Machinery

• PROFINET-enabled Packaging Lines: Synchronize fillers/cappers using PROFIdrive axis grouping.

• Textile Machinery: Precision winding tension control via embedded DriveLogix® PID.

B. Space-Constrained Installations

• Robotic Tooling: Integrates within KUKA/Kawasaki manipulator bases (A2 frame fits Ø200 mm cavities).

• HVAC Rooftop Units: Back-channel cooling eliminates external ducting.

C. Networked Micro-Processes

• Lab Automation: DriveLogix® executes vial handling sequences without PLC.

• Semiconductor Transfer: IRT synchronization for wafer robot arms.

5. Limitations and Mitigation Strategies

6. Competitive Benchmarking

• vs. Siemens G120C: 35% faster torque response (0→150% in 3 ms vs. 5 ms).

• vs. ABB ACS880-01: 55% smaller volume (0.0063 m³ vs. 0.014 m³).

• PROFINET Advantage: Native TSN support vs. EtherCAT retrofit requirements.

7. Conclusion: The Compact Intelligence Nexus

The FC-302P1K5T5E20H1XXXXXXSXXXXALBXCXXXXDX (131N8042) reimagines compact drive technology through its PROFINET-centric architecture and space-optimized A2 frame. Its 1.5 kW rating targets high-value niches where footprint, network latency, and energy efficiency outweigh raw power. The deliberate omission of an LCP reflects shifting industrial paradigms toward centralized, software-driven control – a forward-looking approach that reduces hardware costs while enabling Industry 4.0 integration.

For system designers navigating the constraints of distributed automation, this model delivers an unparalleled blend of:

• Motion-Perfect Networking: PROFINET IRT for μs-precision synchronization.

• Thermal Mastery: Back-channel cooling enabling high-density cabinet builds.

• Intelligent Abstraction: DriveLogix® autonomy reducing PLC dependency.

While its IP20 rating and safety limitations demand thoughtful integration, this drive exemplifies Danfoss’s vision: maximum capability in minimal space, transforming compact motor control into a strategic asset rather than a compromise.
