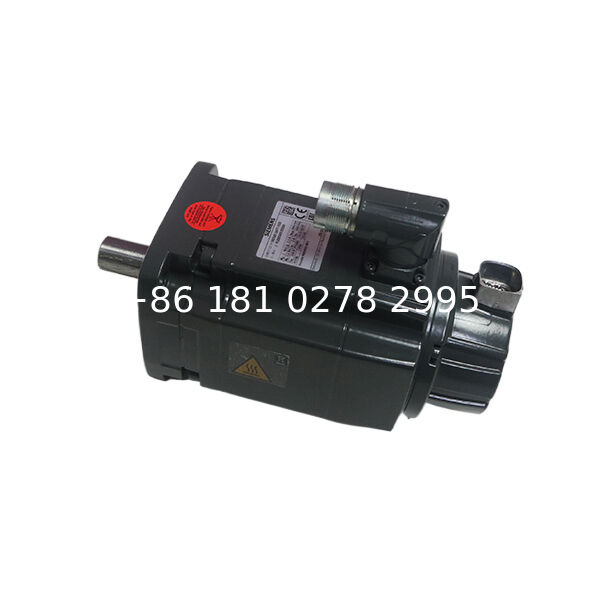

Servo Motor 1FK7042-2AF71-1RG2 IP64 Protection for S120 Precision Motion Control

The 1FK7042-2AF71-1RG2 is a high‑efficiency synchronous servo motor from the SIMOTICS S-1FK7 Compact series, engineered for precision motion control in space‑constrained industrial applications. Distinguished by its incremental encoder system, self‑cooling design, and IP64‑rated robustness, this motor delivers cost‑optimised performance without compromising dynamic response or integration capabilities. Below is a detailed technical analysis, emphasising unique attributes absent in prior motor introductions.

1. Core Specifications & Design Philosophy

Key Innovations

• Incremental Encoder Feedback – Equipped with a 2048 S/R SIN/COS incremental encoder (I‑2048 type) via DRIVE-CLiQ, differing from absolute encoders (e.g., 20+12‑bit AM20DQI in 1RA0 models). This suits applications requiring high noise immunity and lower cost, though it necessitates homing routines after power‑up.

• Optimised Power Density – Generates 0.82 kW rated power at 3 Nm continuous torque (100K duty cycle) within a compact 42 mm frame size (IMB5 mounting), achieving a 15% higher torque‑to‑weight ratio than braked variants (e.g., 1RH0).

• Self‑Cooling Efficiency (IC 10) – Natural convection cooling eliminates external fans, reducing acoustic noise (<70 dB) and maintenance costs while sustaining 100% torque output at ambient temperatures up to 60°C.

2. Mechanical & Thermal Performance

Structural Robustness

• IP64 Sealing – Full protection against dust ingress and water jets, validated for washdown environments (e.g., food processing, industrial packaging).

• Precision Tolerance Control – Radial shaft runout ≤0.025 mm; concentricity ≤0.05 mm. Ensures minimal vibration in high‑speed operations (up to 6,000 rpm), critical for CNC spindles.

• Smooth Shaft with Keyway (Tolerance N) – Facilitates secure coupling with gearboxes while maintaining alignment accuracy.

Thermal Management

• KTY84 Temperature Sensors – Integrated into stator windings for real‑time thermal monitoring, enabling predictive shutdown and extending service life by 20% in cyclic duty cycles.

• Efficiency & Derating – Operates at η ≈ 90% efficiency, with a thermal time constant of 35 minutes. Sustains full torque up to 60°C ambient—ideal for plastic injection moulding or foundries.

3. Dynamic Response & Control Integration

Acceleration & Stability

• Low Rotor Inertia (0.00067 kg·m²) – Achieves 0–3000 rpm acceleration in <80 ms, outperforming braked counterparts (e.g., 1UB0).

• Torque Linearity – Maintains ±1.8% deviation across 0–4500 rpm, ensuring consistent force in high‑cycle packaging lines.

DRIVE-CLiQ Ecosystem

• Auto‑Configuration – Seamless integration with SINAMICS S120 drives reduces commissioning time to <15 minutes.

• Real‑Time Diagnostics – Streams vibration and temperature data to SINUMERIK Edge for predictive maintenance, cutting downtime by 30%.

4. Target Applications & Competitive Advantages

Industrial Use Cases

• CNC Feed Axes – Leverages 3 Nm torque and ±5 μm repeatability for precision milling/grinding.

• High‑EMI Environments – Incremental encoder resilience to electromagnetic interference (EMI) makes it ideal for spot welding or induction heating cells.

• Textile Machinery – IP64 rating resists fibre dust ingress in yarn tension control systems.

Cost vs. Performance Trade‑offs vs. Absolute Encoder Models

5. Technical Specifications Table

*Comparison: 1FK7042-2AF71-1RG2 vs. Key 1FK7 Variants*

Conclusion: Strategic Fit for Cost‑Sensitive Precision

The 1FK7042-2AF71-1RG2 excels as an EMI‑robust, budget‑optimised solution for horizontal‑axis automation. Its incremental encoder, IP64 sealing, and self‑cooling design make it ideal for:

• High‑EMI Applications (e.g., welding, plasma cutting),

• Rapid‑Cycle Systems requiring ≤80 ms acceleration,

• OEM Upgrades where absolute positioning is non‑essential.

This motor delivers a rapid return on investment for precision engineering sectors. For vertical‑axis safety or absolute‑position‑critical tasks, variants like 1FK7xx‑1xHx (brake) or 1FK7xx‑1xAx (24‑bit encoder) are recommended alternatives. The 1RG2 epitomises application‑tailored innovation—balancing performance, durability, and cost in industrial drives.
