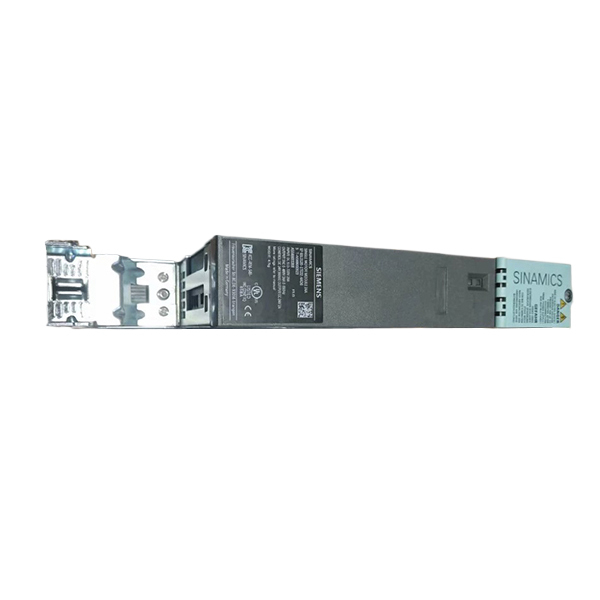

Siemens 6SL3120-1TE22-4AD0 SINAMICS S120 Single Motor Module: Precision Drive Solution for Industrial Automation

Introduction

The Siemens 6SL3120-1TE22-4AD0 is a compact, high-performance Single Motor Module within the SINAMICS S120 drive system, designed to deliver precise motor control for industrial automation applications requiring up to 24A output current. Engineered for seamless integration with Siemens' modular drive architecture, this module combines advanced power electronics with robust safety features, making it ideal for high-dynamic applications such as textile machinery, plastic processing, and woodworking. This document provides an in-depth analysis of its technical capabilities, operational benefits, and real-world applications, emphasizing its role in optimizing efficiency and reliability.

Technical Specifications

The table below summarizes the key parameters of the 6SL3120-1TE22-4AD0:

Key Features

1. High-Dynamic Motor Control

• Precision Pulse Pattern: Optimized IGBT switching reduces motor noise and enhances efficiency.
• 200% Overload Capacity: Supports short-term peak loads for demanding applications like textile spindles.
• Integrated Safety: STO and SIL3/PLe compliance ensure safe operation in emergency scenarios.

2. Modular Integration

• Plug-and-Play Design: Compatible with SINAMICS S120 Control Units (CU310, CU320) and power modules.
• DRIVE-CLiQ Connectivity: Enables high-speed communication with Siemens’ automation ecosystem, including TIA Portal and STARTER software.

3. Compact and Robust Design

• Book-Type D Structure: Space-saving form factor allows parallel installation in control cabinets.
• Internal Fan Cooling: Ensures consistent thermal management, even in enclosed environments.

4. Advanced Diagnostics

• Electronic Nameplate: Auto-identifies component information, simplifying debugging and maintenance.
• Temperature Monitoring: Real-time sensors trigger alarms or shutdowns to prevent overheating.

5. Energy Efficiency

• IE3/IE4 Compliance: Achieves >95% efficiency at full load, reducing operational costs.
• Optimized Power Conversion: Minimizes harmonic distortion for grid-friendly operation.

Applications

1. Textile Machinery

• Ring Spinning Machines: Powers high-speed spindles in cotton and synthetic fiber production, ensuring consistent yarn quality.
• Weaving Looms: Drives rapier and air-jet looms with sub-millisecond response times for defect-free fabric.

2. Plastic Processing

• Injection Molding Machines: Controls screw speed and pressure in precision molding of medical devices and consumer goods.
• Extrusion Lines: Maintains uniform material flow in PVC and polymer pipe production.

3. Woodworking

• CNC Router Systems: Synchronizes multi-axis spindles for intricate cabinet and furniture manufacturing.
• Edge Banding Machines: Ensures precise adhesive application and trimming in automated woodworking lines.

4. Packaging Systems

• Form-Fill-Seal Machines: Coordinates film tension and sealing temperature in food and pharmaceutical packaging.
• Robotic Palletizers: Powers servo-driven grippers for high-speed stacking of boxes and crates.

Installation and Configuration

1. Physical Setup

• Mounting: Installs on 35mm DIN rails or directly onto a flat surface using mounting brackets.
• Cabling:
  • Power Input: Connect to DC link terminals (X181/X182).
  • Motor Output: Wire U/V/W terminals to the motor.
  • Control Wiring: Use shielded cables for DRIVE-CLiQ and safety signals.

2. Software Commissioning

• STARTER Tool: Configures motor parameters (e.g., nameplate data, control mode) and optimizes switching frequencies.
• Auto-Tuning: Automatically adjusts PID controllers for pump and fan applications.

3. Network Integration

• PROFINET/Ethernet: Enables remote monitoring and control via SCADA systems.
• Safety Integration: Supports PROFIsafe for seamless integration with safety PLCs.

Competitive Advantages

1. Space Efficiency

• Compact book-type design saves up to 30% cabinet space compared to traditional drives.

2. Future-Proofing

• Supports Siemens’ Digital Enterprise Suite, allowing integration with cloud-based analytics for predictive maintenance.

3. Safety and Compliance

• Built-in STO and PROFIsafe support ensure compliance with functional safety standards.

4. Ease of Use

• Visual-guided debugging and preconfigured function blocks reduce setup time by 50%.

Conclusion

The Siemens 6SL3120-1TE22-4AD0 SINAMICS S120 Single Motor Module is a versatile, high-precision drive solution for industrial automation. Its combination of efficiency, modularity, and advanced safety features makes it ideal for demanding applications such as textile machinery, plastic processing, and woodworking. By optimizing motor control and reducing energy waste, this module helps manufacturers achieve sustainability goals while maintaining peak productivity.
