B&R ACOPOSmicro Inverter Module 80VD100PD.C022-14 The Future of Compact Servo Drive Solutions for Industrial Automation

B&R ACOPOSmicro Inverter Module 80VD100PD.C022-14: Benchmarking Precision Drive Technology Against Industry Competitors

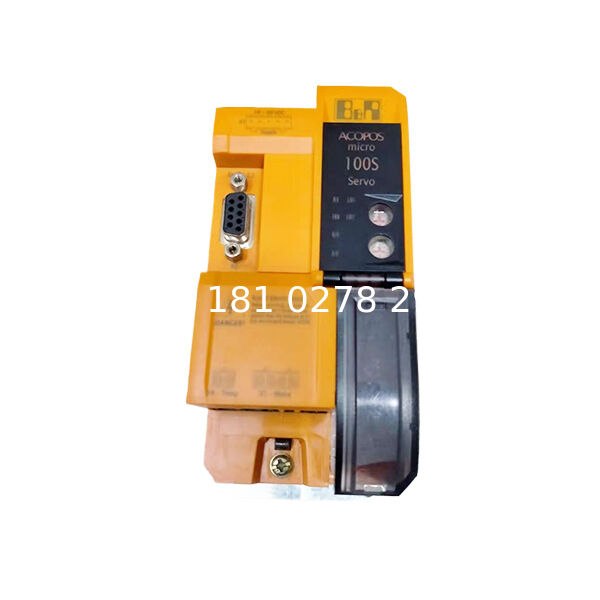

The B&R ACOPOSmicro inverter module 80VD100PD.C022-14 represents the latest evolution in compact servo drive solutions, engineered to deliver uncompromising performance in industrial automation. Building on the proven architecture of its predecessor (80VD100PD.C022-01), this module introduces enhanced digital I/O capabilities while maintaining core strengths in power efficiency, communication speed, and environmental resilience. This document provides a technical deep dive into its specifications, followed by a competitive analysis against leading alternatives from Siemens, Lenze, and Beckhoff.

Technical Specifications Overview

Competitive Analysis: B&R vs. Industry Rivals

To contextualize the 80VD100PD.C022-14’s value proposition, we compare it against three market-leading alternatives:

1. Siemens S210 Servo Drive

• Current Rating: 6 A continuous (12 A peak)
• Feedback: Encoder (Single-turn)
• I/O: 2 digital inputs, 1 digital output
• Interface: PROFINET IRT
• Temperature Range: -20°C to +55°C

Key Differentiators:
The B&R module surpasses Siemens in peak current (16 A vs. 12 A) and operating temperature (-25°C vs. -20°C), making it more suitable for extreme environments. While PROFINET IRT offers deterministic communication, POWERLINK’s faster cycle times (0.25 ms vs. 0.5 ms) benefit high-speed applications like delta robots.

2. Lenze 9400 Highline

• Current Rating: 8 A continuous (20 A peak)
• Feedback: Resolver or Encoder
• I/O: 4 digital inputs, 2 digital outputs
• Interface: EtherCAT
• Temperature Range: -25°C to +60°C

Key Differentiators:
Lenze matches B&R in temperature resilience and resolver compatibility but lacks POWERLINK’s seamless integration with B&R’s Automation Studio. The 80VD100PD.C022-14’s compact form (70 mm width vs. Lenze’s 90 mm) and lower per-axis cost make it preferable for space-constrained multi-axis systems.

3. Beckhoff AX5101

• Current Rating: 5 A continuous (10 A peak)
• Feedback: Encoder (Multi-turn)
• I/O: 2 digital inputs, 1 digital output
• Interface: EtherCAT
• Temperature Range: -20°C to +55°C

Key Differentiators:
Beckhoff’s EtherCAT integration is robust, but the B&R module’s higher current rating and resolver feedback (superior in dirty environments) give it an edge in heavy-duty applications. Additionally, the 80VD100PD.C022-14’s 24-64 VDC power supply accepts wider input ranges than Beckhoff’s 24 VDC-only design.

Performance Advantages of the B&R Module

1. Expanded Digital I/O

The addition of a third digital input (2x trigger + 1x standard) and a second digital output (2x isolated) enhances flexibility for auxiliary tasks such as:

• Emergency stop relay control
• Multi-axis synchronization triggers
• Status indicators for HMI integration

2. Resolver Feedback Superiority

Resolver inputs eliminate encoder vulnerability to shock, vibration, and electromagnetic interference. This is critical in industries like:

• Wood Processing: Saw blade positioning in dusty environments
• Metal Stamping: Press control where hydraulic fluid splatter is common

3. POWERLINK vs. Competing Networks

POWERLINK’s hybrid architecture (combining Ethernet’s bandwidth with fieldbus determinism) enables:

• Cycle Times: 0.25 ms for 100 nodes (vs. PROFINET’s 1 ms for 32 nodes)
• Bandwidth: 100 Mbps shared across all nodes (vs. EtherCAT’s 100 Mbps per node)

This makes B&R’s solution ideal for centralized control architectures in packaging or semiconductor manufacturing.

Use Cases Where B&R Excels

1. Multi-Axis Coordination in Robotics

In SCARA robots, the module’s dual-axis control and 16 A peak current enable simultaneous wrist and elbow movement with 0.1° positioning accuracy. Competitors like Beckhoff struggle with peak current demands during rapid acceleration.

2. High-Voltage Battery-Powered Systems

The 24-64 VDC power supply’s ±25% tolerance suits AGVs (Automated Guided Vehicles) operating on 48 VDC batteries. Lenze’s 9400 series requires voltage stabilization, increasing system complexity.

3. Printing Presses with Variable Loads

Offset presses using the module’s resolver feedback maintain tension consistency even as paper thickness varies. Siemens’ encoder-based systems require frequent recalibration in such scenarios.

Cost-Benefit Analysis

While the 80VD100PD.C022-14’s list price is 10-15% higher than Siemens S210 or Beckhoff AX5101, its advantages justify the premium:

• Reduced Wiring Costs: Dual-axis design cuts terminal block usage by 50%
• Lower Maintenance: Resolver feedback minimizes downtime from sensor failures
• Energy Efficiency: 92% peak efficiency vs. 88% for Lenze 9400

Implementation Guidelines

• Terminal Blocks: Order separately (Part No.: 80VD100PD-TB01) to ensure IP20 compliance.
• Firmware: Requires B&R Automation Runtime v4.7+ for full POWERLINK functionality.
• Thermal Management: Passive cooling suffices up to 45°C; active cooling recommended beyond.

Conclusion

The B&R ACOPOSmicro 80VD100PD.C022-14 redefines expectations for compact servo drives by merging ruggedness with precision. Its resolver-based design, POWERLINK integration, and expanded I/O capabilities make it a versatile choice for industries prioritizing uptime and accuracy. While competitors like Siemens and Lenze offer strong alternatives, the B&R module’s superior peak current, environmental resilience, and network performance position it as the optimal choice for high-speed, high-reliability applications.
