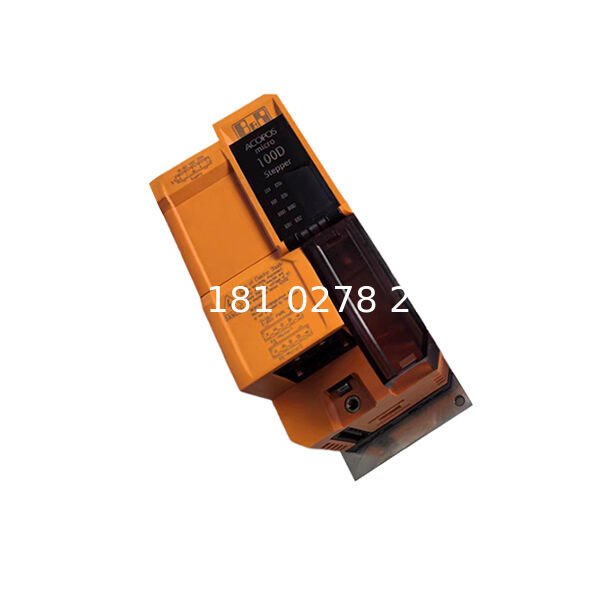

The B&R ACOPOSmicro inverter module 80VD100PD.C033-01 represents a targeted advancement in servo drive technology, optimized for applications demanding ultra-high positioning accuracy. By integrating SinCos encoder feedback, this module bridges the gap between cost-effective resolver-based systems and premium encoder-driven solutions. This document provides a technical overview of the 80VD100PD.C033-01, followed by a comparative analysis against its siblings (80VD100PD.C022-01 and 80VD100PD.C088-01), culminating in a selection matrix for engineers.

Technical Specifications Overview

Performance Differentiators

1. Feedback Mechanism: SinCos Encoder vs. Resolver

The 80VD100PD.C033-01’s SinCos encoder provides 16-bit absolute position feedback (65,536 positions/revolution), offering a 4x precision boost over the resolver-based C022-01/C088-01. This makes it ideal for:

• Semiconductor Manufacturing: Wafer positioning with <1 µm tolerance.
• Medical Robotics: Surgical arm actuation requiring sub-millimeter accuracy.
• CNC Glass Cutting: Scoring delicate materials without edge chips.

However, resolvers (C022-01/C088-01) remain superior in harsh environments (e.g., sawmills, foundries) due to their immunity to electromagnetic noise and physical wear.

2. Power Supply Robustness

The C033-01’s 24-64 VDC ±25% input matches the C022-01 but surpasses the C088-01’s narrower 24-48 VDC ±10% range. This flexibility benefits:

• Battery-Powered AGVs: Stable operation during voltage sags.
• Renewable Energy Systems: Compatibility with unstable solar/battery inputs.

3. Current Rating and Thermal Design

While all three modules share an 8 A continuous rating, the C033-01 and C022-01 support 16 A peak current (vs. 12 A for C088-01). This enables transient overload handling in:

• Printing Presses: Accelerating heavy ink rollers.
• Packaging Machinery: Sudden torque demands during film sealing.

4. Environmental Resilience

The C033-01 and C022-01 operate at -25°C to +60°C, outperforming the C088-01’s -20°C to +55°C range. This makes them suitable for:

• Cold Storage Automation: Freezer warehouse conveyor systems.
• Desert-Based Oil/Gas Equipment: Withstanding extreme temperature swings.

Selection Criteria Matrix

Use the following guidelines to choose between the three modules:

Use Case Analysis

1. Pharmaceutical Packaging Line

Requirement: High-speed blister packing with 0.1 mm accuracy.
Selection: C033-01.
Why: SinCos encoders ensure precise pill placement, while 16 A peak current handles rapid pouch sealing.

2. Woodworking CNC Router

Requirement: Dusty environment with 2 m/s² acceleration.
Selection: C022-01.
Why: Resolver feedback resists sawdust interference, and 8 A continuous current supports spindle torque.

3. Solar Panel Tracking System

Requirement: 24-64 VDC battery operation in desert conditions.
Selection: C033-01.
Why: Wide voltage input and -25°C to +60°C rating match solar farm requirements.

4. Budget Conveyor System

Requirement: Low-cost, light-duty material handling.
Selection: C088-01.
Why: 6 A rating suffices for conveyor motors, and compact size reduces panel space.

Implementation Notes

• Terminal Blocks: Order separately (Part No.: 80VD100PD-TB01) for all variants.
• Firmware: Requires B&R Automation Runtime v4.8+ for SinCos encoder support (C033-01).
• Mounting: DIN-rail compatible, but ensure ventilation for C033-01 in high-temperature environments.

Conclusion

The B&R ACOPOSmicro 80VD100PD.C033-01 fills a critical niche for applications demanding ultra-high precision without sacrificing environmental resilience. While the resolver-based C022-01 remains king in dirty environments and the C088-01 offers budget flexibility, the C033-01’s SinCos encoder integration positions it as the premier choice for semiconductor, medical, and high-speed manufacturing sectors. Engineers must weigh precision needs, environmental conditions, and cost constraints to select the optimal module.
