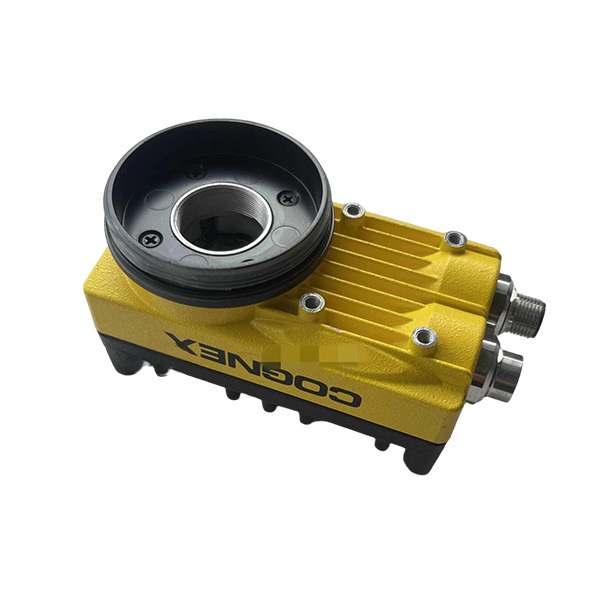

The Cognex IS5705-C11 is an In-Sight 5705C industrial smart camera and stand-alone machine vision system designed for automated inspection and visual control in manufacturing environments. It combines high-resolution color image acquisition, onboard vision processing, industrial communication, and machine vision tools in one compact vision system.

This model uses a 2/3-inch CCD image sensor with maximum 2448 × 2048 pixel resolution and 24-bit color imaging. The full-frame acquisition speed is up to 14 frames per second for the 5705C color version, making it suitable for applications that require detailed image capture and reliable color-based inspection. The C-mount lens interface allows the camera to be configured with suitable industrial lenses according to field of view, working distance, and inspection target size.

The IS5705-C11 version is listed as In-Sight 5705C with PatMax. PatMax pattern matching helps identify and locate parts even when there are changes in position, rotation, scale, or partial appearance. This makes the vision system useful for part positioning, assembly verification, alignment checking, presence detection, label inspection, and production line quality control.

The vision system supports 10/100/1000 BaseT Ethernet communication and can be integrated into industrial automation networks for data transfer, job control, result output, and communication with PLCs, HMIs, and factory control systems. It also includes one opto-isolated acquisition trigger input and two built-in high-speed outputs. Additional I/O can be added through compatible I/O modules or Ethernet I/O systems.

The die-cast aluminum housing, M4 mounting holes, 24VDC power input, and IP67 protection rating with properly installed lens cover make the IS5705-C11 suitable for industrial installation. It can be used in electronics manufacturing, automotive components, packaging lines, food and beverage inspection, logistics sorting, medical device assembly, and general factory automation.

For replacement applications, the complete model number IS5705-C11 should be confirmed carefully. Similar In-Sight 5705 models may differ by color or monochrome imaging, PatMax option, PatMax RedLine option, firmware requirement, lens cover, I/O module, cable type, and software configuration. Before ordering, please confirm the original camera label, lens type, lighting setup, Ethernet configuration, I/O wiring, firmware version, inspection job file, and installation dimensions.

Dengfeng supplies Cognex vision systems, industrial smart cameras, barcode readers, lenses, lighting accessories, cables, PLC modules, servo drives, sensors, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, housing appearance, lens mount condition, and packaging according to your request.

Key Features

• Cognex IS5705-C11 In-Sight 5705C color vision system
• 5MP 2448 × 2048 pixel maximum resolution
• 2/3-inch CCD image sensor
• 24-bit color imaging
• Up to 14 full frames per second
• C-mount lens interface
• PatMax pattern matching support
• 10/100/1000 BaseT Ethernet communication
• 24VDC ±10% power input, 600mA maximum
• 1 opto-isolated trigger input and 2 built-in high-speed outputs
• Die-cast aluminum housing for industrial use
• IP67 protection with proper lens cover installation
• Suitable for inspection, positioning, measurement, identification, and robot guidance

Typical Applications

The Cognex IS5705-C11 vision system can be used in:

• Electronics component inspection
• Automotive parts inspection
• Packaging quality inspection
• Label and print verification
• Assembly verification
• Part positioning and alignment
• Robot guidance applications
• Code reading and identification
• Presence and absence detection
• Color inspection and sorting
• Measurement and gauging applications
• Production line machine vision replacement projects

FAQ

Q1: What is Cognex IS5705-C11?
A1: It is an In-Sight 5705C industrial color vision system used for machine vision inspection, positioning, measurement, identification, and robot guidance applications.

Q2: Is IS5705-C11 a color camera?
A2: Yes. It is the 5705C color version with 24-bit color image processing.

Q3: What is the resolution of this vision system?
A3: The maximum image resolution is 2448 × 2048 pixels.

Q4: What sensor type does IS5705-C11 use?
A4: It uses a 2/3-inch CCD image sensor.

Q5: What is the frame rate of the 5705C version?
A5: The 5705C color version supports up to 14 full frames per second, depending on job configuration and acquisition settings.

Q6: What lens mount does this camera use?
A6: It uses a C-mount lens interface.

Q7: Does IS5705-C11 support PatMax RedLine?
A7: No. IS5705-C11 is listed as the 5705C version with PatMax. The IS5705-C21 version is the 5705C version with PatMax RedLine.

Q8: What communication interface does it support?
A8: It supports 10/100/1000 BaseT Ethernet communication. RS-232C is available when connected with a compatible breakout cable or I/O module.

Q9: What power supply does it require?
A9: It requires 24VDC ±10% power input, with maximum current consumption of 600mA.

Q10: Can this camera be used as a replacement part?
A10: Yes. It can be used for replacement, but the full model number, lens, lighting, Ethernet setting, I/O wiring, firmware version, and inspection job file should be confirmed before ordering.

Q11: What should I provide before purchasing?
A11: Please provide photos of the original camera label, lens, cable connectors, lighting setup, installation position, and current inspection application. This helps confirm compatibility.
