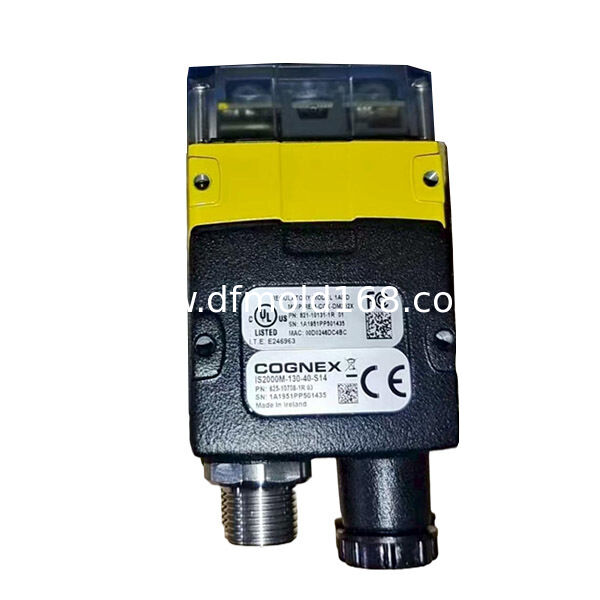

IS2000M-130-40-S14 Industrial Vision Sensor with Integrated Inspection Function

The IS2000M-130-40-S14 is a compact industrial vision sensor designed for automated inspection, positioning and quality verification applications.

Unlike traditional camera systems requiring a separate processing unit, this integrated vision sensor combines image capture, processing and communication functions in one compact housing.

The 640×480 CMOS imaging system provides reliable image acquisition for production-line inspection tasks, while the integrated inspection capability simplifies installation and reduces system complexity.

Key Features

• 640×480 CMOS image acquisition
• Integrated image processing
• Compact all-in-one vision design
• M12/S-Mount lens compatibility
• Ethernet industrial communication
• IP65 protection
• Suitable for high-speed inspection

Typical Applications

• Component presence checking
• Assembly verification
• Packaging inspection
• Position alignment
• Product quality inspection

Integrated Inspection Solution

The sensor integrates:

• Image acquisition
• Processing algorithms
• Inspection configuration
• Industrial communication

This design reduces the requirement for external controllers and simplifies machine integration.

Vision Inspection Functions

Typical inspection tasks include:

• Pattern matching
• Part detection
• Position verification
• Counting
• Basic measurement

The actual inspection performance depends on the configured vision tools and application conditions.

Industrial Communication

The sensor supports Ethernet-based communication for integration with automation systems.

Typical functions include:

• Inspection result transmission
• Trigger control
• Data exchange
• Remote setup

IS2000M-130-40-S14 vs IS2000M-130-40-000

IS2000M-130-40-S14

Configured with S14 optical/accessory configuration

Suitable for integrated inspection applications

IS2000M-130-40-000

Basic sensor configuration

Requires separate optical configuration

Installation Notes

• Confirm lens and lighting requirements
• Provide stable 24 V DC power
• Use industrial Ethernet connection
• Protect unused connectors
• Configure inspection parameters before operation

FAQ

Q1: What type of product is IS2000M-130-40-S14?

A1: It is an integrated industrial machine vision sensor.

Q2: What image resolution does it provide?

A2: It provides 640×480 pixel image acquisition.

Q3: Does it require an external vision processor?

A3: No. Image processing functions are integrated into the sensor.

Q4: What applications can it perform?

A4: It is suitable for presence detection, alignment, inspection and measurement tasks.

Q5: What power supply is required?

A5: It requires a 24 V DC industrial power supply.
