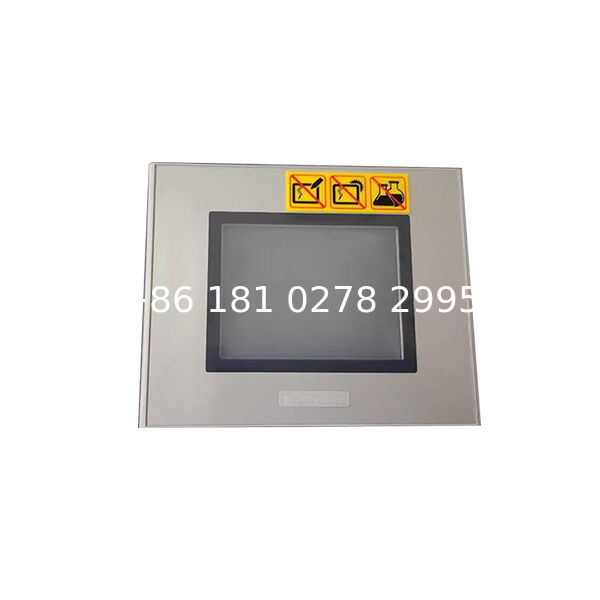

PFXGM4301TAD Modular 5.7 Inch Industrial HMI with Ethernet Communication

The PFXGM4301TAD is a modular industrial HMI designed for machine control, operator monitoring and factory automation applications.

Featuring a 5.7-inch TFT color display with 65,536 colors and QVGA resolution, this HMI provides clear visualization of machine status, parameters and operating information.

The modular GP4000M design allows flexible installation in compact automation equipment where space efficiency and reliable communication are required.

With Ethernet, serial communication and USB interfaces, it can easily connect with PLCs, controllers and industrial devices for integrated machine operation.

Key Features

• 5.7-inch TFT color display
• 65,536-color visualization
• Compact modular HMI design
• Resistive touch operation
• Ethernet and serial communication
• USB data transfer support
• IP65F front protection
• 24V DC industrial power supply

Typical Applications

• Packaging machinery
• Factory automation equipment
• Machine tools
• Process monitoring systems
• Industrial control panels

Modular HMI Design

The GP4000M modular structure is designed for equipment manufacturers requiring:

• Space-saving installation
• Flexible panel integration
• Easy machine interface development
• Reliable industrial operation

Communication Capability

The integrated interfaces support connection with automation systems:

• Ethernet communication
• RS-232C serial devices
• RS-422/485 networks
• USB maintenance and data transfer

Display and Operation Performance

The 5.7-inch TFT color screen provides:

• Clear machine status display
• Parameter setting interface
• Alarm visualization
• Operator control functions

PFXGM4301TAD vs Standard HMI

PFXGM4301TAD

Modular industrial HMI

5.7-inch color display

Multiple communication interfaces

Suitable for embedded machinery

Large Panel HMI

Larger display size

Suitable for centralized monitoring systems

Installation Notes

• Confirm panel cut-out dimensions
• Use 24V DC power supply
• Configure communication drivers before operation
• Protect rear module from harsh environments
• Verify PLC compatibility

FAQ

Q1: What type of product is PFXGM4301TAD?

A1: It is a modular industrial HMI from the GP4000M series.

Q2: What is the display size?

A2: It uses a 5.7-inch TFT color LCD display.

Q3: What is the screen resolution?

A3: The resolution is 320 × 240 pixels (QVGA).

Q4: Does it support Ethernet communication?

A4: Yes. It supports 10BASE-T/100BASE-TX Ethernet communication.

Q5: What power supply does it require?

A5: It requires a 24V DC power supply.
