Yamada Pneumatic Diaphragm Pump NDP-20BAN: Comprehensive Product Overview

Introduction to Yamada and the NDP Series

Yamada Corporation, established in 1905, has developed a reputation as a leading manufacturer of complete pneumatic diaphragm pump product lines, meeting diverse industrial fluid handling needs while maintaining ISO 9001 certified engineering standards and manufacturing processes

. The company specializes in air-operated double diaphragm pump technology, with the NDP series representing some of their most versatile and widely-applied solutions. Among these, the NDP-20BAN stands out as a particularly adaptable model designed for handling various chemicals and slurries with exceptional reliability and safety.

The NDP-20BAN embodies Yamada's commitment to engineering excellence and operational durability, incorporating decades of innovation in diaphragm pump technology. This compact yet powerful pump delivers competitive performance across numerous industries, from chemical processing to wastewater treatment, offering users a dependable solution for challenging fluid transfer applications.

Technical Specifications and Design Features

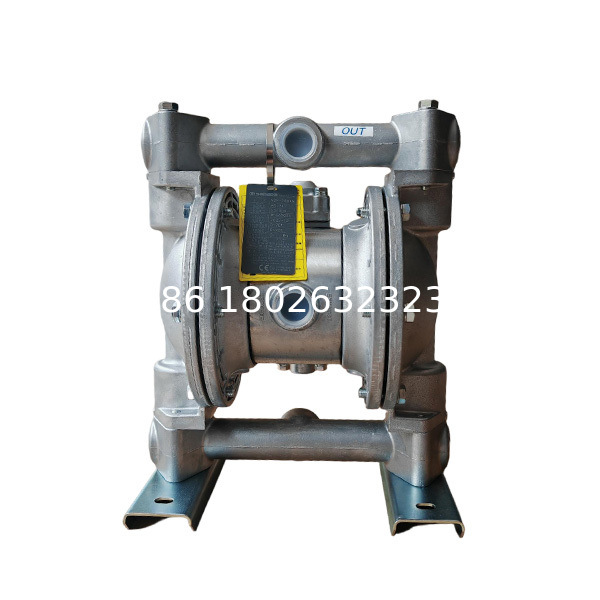

The Yamada NDP-20BAN pneumatic diaphragm pump combines compact dimensions with surprising capacity, making it suitable for installation in space-constrained applications while still delivering substantial flow rates. Below is a comprehensive table of its technical specifications:

*Table 1: Complete technical specifications for Yamada NDP-20BAN pneumatic diaphragm pump

*

The pump's aluminum construction provides an optimal balance between corrosion resistance and durability, while the NBR diaphragm material offers excellent resistance to oils, fuels, and certain chemicals, making it suitable for various industrial applications. The stainless steel valve seats ensure long service life even when handling abrasive slurries or corrosive liquids.

Operational Principles and Performance Characteristics

Air Distribution System

The NDP-20BAN incorporates Yamada's proprietary "C spool" air switching valve, which represents the core technology behind the pump's reliable operation

. This innovative air distribution system is completely oil-free, eliminating the need for regular lubrication and reducing maintenance requirements. The left-right independent pilot system eliminates dynamic seals, enhancing operational stability and extending service life.

The C-spool design incorporates a special spring mechanism that prevents mid-stroke stopping and ensures consistent operation, even with fluctuating air supply pressures. This feature is particularly valuable in applications requiring continuous operation or when handling viscous fluids that might cause less sophisticated pumps to stall.

Flow Characteristics and Capacity

With a maximum discharge capacity of 110 liters per minute, the NDP-20BAN delivers substantial flow rates despite its compact footprint

. The pump's discharge per cycle is approximately 350 mL, though this can vary based on fluid characteristics, piping configuration, and operational conditions. The pump's flow rate is infinitely variable by simply adjusting the air supply pressure or using an exhaust air control valve, providing operators with precise control over the pumping action.

Self-Priming and Dry-Run Capability

The NDP-20BAN features exceptional self-priming capabilities, with an initial self-priming lift of up to 3 meters

. This characteristic makes it suitable for applications where the pump must be positioned above the fluid source. Additionally, the pump can run dry indefinitely without damage, a significant advantage in applications where fluid supply may be intermittent or where pumps might inadvertently be operated without fluid.

Applications and Industry Uses

The Yamada NDP-20BAN finds application across diverse industries due to its versatile design and reliable performance. Some prominent application areas include:

• Chemical Processing: Transfer of acids, alkalis, solvents, and various chemical reagents where the aluminum construction and NBR diaphragms provide compatible material resistance.

• Industrial Wastewater Treatment: Handling of sludge, suspended solids, and chemical treatment agents in industrial wastewater systems, with the pump's ability to handle particles up to 2mm in diameter.

• Paint and Coating Industries: Transfer of pigments, resins, and finished paint products, with the pump's gentle pumping action preventing separation or degradation of sensitive formulations.

• Ceramics and Clay Processing: Movement of slips, glazes, and ceramic slurries where the pump's ability to handle viscous, abrasive materials proves advantageous.

• General Industrial Transfer Applications: Loading/unloading operations, drum transfer, and circulation systems where the pump's self-priming capability and dry-running characteristics provide operational flexibility.

The NDP-20BAN's inherently explosion-proof design, resulting from its air-operated operation, makes it particularly suitable for hazardous environments where electrical equipment might pose ignition risks

. This characteristic has led to its widespread adoption in petroleum, pharmaceutical, and chemical industries where volatile compounds are present.

Comparative Advantages and Unique Selling Points

Maintenance and Serviceability

The Yamada NDP-20BAN is designed with serviceability as a priority, featuring easily accessible components that can be replaced without special tools in most cases. The air distribution valve can be serviced or replaced without pump disassembly, significantly reducing downtime during maintenance operations

. Additionally, the inclusion of a reset button on the air valve allows for quick restart in the unlikely event of pump stall due to air valve wear.

Energy Efficiency and Operational Economy

Despite its impressive performance specifications, the NDP-20BAN maintains excellent air efficiency, with a maximum consumption of 1,200 L/min at peak operation

. The pump's efficient air usage translates to lower operational costs, particularly in facilities with multiple diaphragm pumps operating continuously. The infinitely variable flow control enables operators to match pump output precisely to process requirements, eliminating the energy waste associated with fixed-capacity pumps that require bypass arrangements.

Durability and Lifespan

Yamada's engineering and manufacturing processes result in a pump with exceptional service life, particularly in demanding applications. The company's proprietary diaphragm design, manufactured as a single-piece construction from premium natural materials, reportedly offers up to twice the lifespan of competitive products

. This extended service interval reduces not only diaphragm replacement costs but also the associated downtime for maintenance.

Installation and Operational Guidelines

Piping Configuration

Proper installation is critical to optimizing pump performance and longevity. The NDP-20BAN features 3/4 inch FNPT ports both for fluid inlet and outlet

. Installers should use piping materials compatible with the fluids being handled and ensure adequate support to avoid stressing the pump connections. A strainer is recommended on the suction side when handling fluids with potential debris that might approach the pump's 2mm maximum particle size capability.

Air Supply Requirements

The pump operates with air supply pressures ranging from 0.2 to 0.7 MPa

. The air supply should be clean and dry, with appropriate filtration to remove moisture and contaminants that could affect the air valve operation. While the pump's air distribution system is designed for oil-free operation, occasional lubrication of the air valve with a small amount of machine oil can help maintain optimal performance in demanding environments.

Operational Considerations

For optimal diaphragm life, Yamada recommends sizing the pump with capacity margin rather than operating consistently at maximum capacity

. Although the pump can handle temperatures up to 100°C, continuous operation at elevated temperatures with certain materials may reduce component life. For applications involving high-viscosity fluids, reducing flow expectations and potentially increasing air supply pressure may be necessary to maintain performance.

Maintenance Procedures and Troubleshooting

Routine Maintenance

The NDP-20BAN requires minimal routine maintenance due to its oil-free air operation and robust construction. Regular inspection of diaphragms, valve balls, and seats for wear is recommended, with replacement frequency dependent on operating conditions. The pump's modular design allows for component replacement without complete disassembly, minimizing downtime during maintenance activities.

Common Maintenance Procedures

• Diaphragm Replacement: The pump's diaphragms can be accessed by removing the fluid chamber cover bolts, with the process typically requiring less than 30 minutes for experienced maintenance personnel.

• Valve Maintenance: The valve balls and seats can be inspected and replaced by removing the fluid chamber covers, with no special tools required for this procedure.

• Air Valve Service: The C spool air valve can be accessed by removing the end cover on the air distribution section, with replacement components simply dropping into place without complex alignment procedures.

Troubleshooting Common Issues

• Reduced Flow or Pressure: Typically caused by worn diaphragms, blocked fluid passages, or insufficient air supply. Inspection of these components usually identifies the root cause.

• Failure to Prime: Often results from air leaks in suction piping, worn valve components, or insufficient immersion of the suction line. Checking the suction system integrity and valve condition generally resolves priming issues.

• Irregular Cycling: Usually related to air supply issues, restricted exhaust, or wear in the air distribution system. Cleaning the air filter and inspecting the air valve typically addresses these concerns.

Comparison With Alternative Models

The Yamada NDP-20 series offers multiple configuration options to suit specific application requirements. The NDP-20BAN specifically features an aluminum body with NBR diaphragm, positioning it as an excellent general-purpose solution for many industrial applications. Alternative configurations include:

• NDP-20BAS: Features aluminum body with TPO (thermoplastic polyolefin) diaphragm for specific chemical resistance.

• NDP-20BAE: Incorporates EPDM diaphragm for improved resistance to mild acids, alkalis, and steam.

• NDP-20BAV: Utilizes FKM (Viton) diaphragm for enhanced resistance to hydrocarbons and high-temperature applications.

• NDP-20BAT: Employs PTFE diaphragm for maximum chemical resistance across the broadest range of aggressive chemicals.

The availability of these specialized configurations allows users to select the optimal material combination for their specific application, potentially extending service intervals and improving operational reliability.

Conclusion and Summary

The Yamada NDP-20BAN pneumatic diaphragm pump represents an exceptional balance of performance, reliability, and versatility in a compact package. Its robust construction, innovative air valve design, and service-friendly features make it an outstanding choice for numerous industrial fluid handling applications. With its competitive flow capacity, proven durability, and minimal maintenance requirements, the NDP-20BAN delivers long-term value that exceeds its initial investment.

For operations requiring reliable transfer of chemicals, slurries, or various industrial fluids, the Yamada NDP-20BAN offers a dependable solution backed by decades of engineering refinement and quality manufacturing. Its compliance with international standards and certifications provides additional assurance of performance and reliability, making it a preferred choice among engineers and maintenance professionals worldwide.
