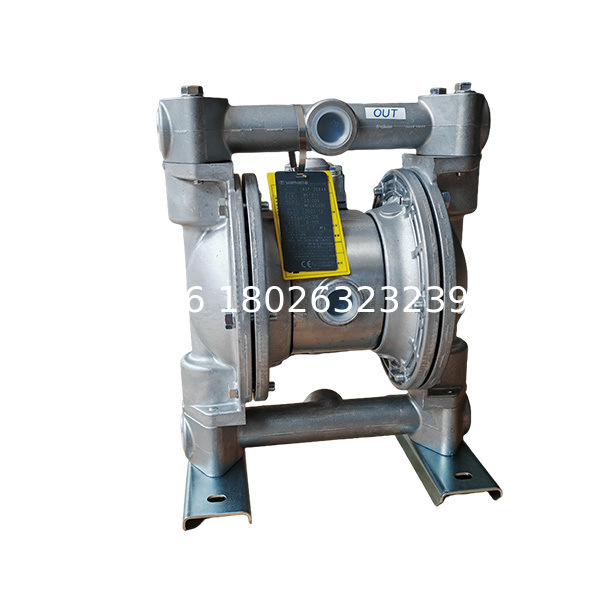

YAMADA Pneumatic Diaphragm Pump NDP-20BST: Superior Corrosion Resistance for Demanding Applications

Introduction to YAMADA and the NDP Series

YAMADA Corporation, with a distinguished history dating back to 1905, has consistently pioneered the development of complete pneumatic diaphragm pump product lines that address diverse industrial fluid handling challenges while maintaining ISO 9001 certified engineering standards and manufacturing processes

. The company specializes in air-operated double diaphragm pump technology, with the NDP series representing some of their most versatile and widely-implemented solutions. Among these, the NDP-20BST stands out as a premium model specifically engineered for handling corrosive chemicals and demanding applications where exceptional durability and chemical resistance are paramount.

The NDP-20BST exemplifies YAMADA's commitment to engineering excellence and operational durability, incorporating decades of innovation in diaphragm pump technology with specialized materials designed to withstand aggressive media. This robust pump delivers reliable performance across numerous challenging industries, from chemical processing to semiconductor manufacturing, offering users a dependable solution for transferring corrosive fluids, solvents, and other demanding media.

Technical Specifications and Design Features

The YAMADA NDP-20BST pneumatic diaphragm pump combines stainless steel construction with advanced engineering, creating a pump capable of handling the most challenging applications while maintaining peak performance. Below is a comprehensive table of its technical specifications:

*Table 1: Complete technical specifications for YAMADA NDP-20BST pneumatic diaphragm pump*

The pump's stainless steel construction provides superior corrosion resistance compared to aluminum models, while the PTFE diaphragm material offers exceptional resistance to virtually all aggressive chemicals, including strong acids, bases, and solvents

. This material combination makes the NDP-20BST particularly suitable for applications where both chemical compatibility and structural integrity are critical concerns.

Operational Principles and Performance Characteristics

Advanced Air Distribution System

The NDP-20BST incorporates YAMADA's proprietary "C spool" air switching valve, which represents the core technology behind the pump's reliable operation

. The unique design includes a C-type spring mechanism that prevents mid-stroke stopping and ensures consistent operation, even with fluctuating air supply pressures.

The pump also features left-right independent pilot valves that operate without dynamic seals, significantly enhancing operational stability and extending service life

. This innovative design eliminates wear-prone components, contributing to the pump's reputation for long-term reliability in demanding applications where continuous operation is essential.

Flow Characteristics and Capacity

With a maximum discharge capacity of 100 liters per minute, the NDP-20BST delivers substantial flow rates for challenging applications, though slightly less than non-PTFE models due to the different characteristics of PTFE diaphragms

. The pump's discharge per cycle is approximately 240 mL, though this can vary based on fluid characteristics, piping configuration, and operational conditions. The pump's flow rate is infinitely variable by simply adjusting the air supply pressure or using an exhaust air control valve, providing operators with precise control over the pumping action to match specific process requirements.

Self-Priming and Dry-Run Capability

The NDP-20BST features effective self-priming capabilities, with an initial self-priming lift of up to 1.5 meters

.

Material Compatibility and Construction Advantages

Stainless Steel Liquid End

The NDP-20BST's stainless steel construction (SCS14) provides exceptional corrosion resistance and durability compared to standard aluminum models

. This makes it particularly suitable for handling:

• Strong acids and alkalis that would rapidly degrade aluminum components

• Corrosive chemical solutions used in industrial processes

• High-purity applications where material integrity is critical

• Sanitary applications where cleanability and surface finish are important

The stainless steel construction also enhances the pump's structural integrity in demanding industrial environments, providing greater resistance to physical impact and wear compared to polymer or aluminum alternatives.

PTFE Diaphragm Technology

The NDP-20BST incorporates high-purity PTFE diaphragms that provide superior performance in demanding chemical applications

. This material characteristic ensures long-term reliability in applications where other diaphragm materials would rapidly degrade, thereby reducing maintenance frequency and downtime.

The PTFE diaphragm in the NDP-20BST is manufactured using YAMADA's proprietary single-piece construction technique, which enhances durability and service life

. This innovative design approach reportedly delivers up to twice the lifespan of competitive products, significantly reducing total cost of ownership through extended maintenance intervals and reduced parts replacement.

Comprehensive Material Compatibility

The wetted materials in the NDP-20BST—PTFE for diaphragms and ball valves, stainless steel for valve seats and liquid end—are carefully selected to provide optimal performance in corrosive environments while preventing contamination of the pumped fluid

. This material combination makes the NDP-20BST particularly suitable for high-purity applications such as semiconductor manufacturing, pharmaceutical processing, and food production where even minimal contamination could compromise product quality.

Applications and Industry Uses

The YAMADA NDP-20BST finds application across numerous industries where corrosion resistance and fluid purity are paramount:

• Chemical Processing: Transfer of aggressive acids, alkalis, solvents, and various chemical reagents where the stainless steel construction and PTFE diaphragms provide maximum chemical resistance and equipment longevity.

• Semiconductor Manufacturing: Handling of high-purity chemicals, etchants, and solvents where contamination prevention is critical to product quality and the stainless steel construction ensures particle-free operation

• .

• Pharmaceutical Production: Transfer of active pharmaceutical ingredients, solvents, and process chemicals where material compatibility, cleanability, and sanitary requirements are essential

• .

• Electroplating and Surface Treatment: Circulation of aggressive plating solutions, acids, and chemical baths where corrosion resistance is necessary for equipment survival.

• Laboratory and Research Applications: Transfer of research chemicals, analytical reagents, and experimental compounds where material compatibility and precision control are necessary.

The pump's exceptional chemical resistance combined with its stainless steel construction makes it particularly valuable in industries where both product purity and equipment durability directly impact operational efficiency, safety, and regulatory compliance.

Installation and Operational Guidelines

Piping Configuration

Proper installation is critical to optimizing pump performance and longevity. The NDP-20BST features 3/4 inch FNPT ports both for fluid inlet and outlet

. Installers should use piping materials compatible with the fluids being handled and ensure adequate support to avoid stressing the pump connections. A strainer is recommended on the suction side when handling fluids with potential debris that might approach the pump's 2mm maximum particle size capability.

Air Supply Requirements

The pump operates with air supply pressures ranging from 0.2 to 0.7 MPa

. The air supply should be clean and dry, with appropriate filtration to remove moisture and contaminants that could affect the air valve operation. While the pump's air distribution system is designed for oil-free operation, occasional lubrication of the air valve with a small amount of machine oil can help maintain optimal performance in demanding environments, though this should be done cautiously in contamination-sensitive applications.

Operational Considerations

For optimal diaphragm life, YAMADA recommends sizing the pump with capacity margin rather than operating consistently at maximum capacity

. Although the PTFE diaphragm offers excellent chemical resistance and temperature tolerance, continuous operation at elevated temperatures may reduce component life over time. For applications involving high-viscosity fluids, reducing flow expectations and potentially increasing air supply pressure may be necessary to maintain performance.

Maintenance Procedures and Troubleshooting

Routine Maintenance

The NDP-20BST requires minimal routine maintenance due to its oil-free air operation and robust construction

. Regular inspection of PTFE diaphragms, valve balls, and seats for wear is recommended, with replacement frequency dependent on operating conditions. The pump's modular design allows for component replacement without complete disassembly, minimizing downtime during maintenance activities.

Specialized Maintenance Procedures

• PTFE Diaphragm Replacement: The pump's PTFE diaphragms can be accessed by removing the fluid chamber cover bolts. While slightly more complex than elastomeric diaphragm replacement, the process remains straightforward for experienced maintenance personnel.

• Valve Maintenance: The PTFE ball valves and stainless steel seats can be inspected and replaced by removing the fluid chamber covers, with no special tools required for this procedure.

• Air Valve Service: The C spool air valve can be accessed by removing the end cover on the air distribution section, with replacement components simply dropping into place without complex alignment procedures.

Troubleshooting Common Issues

• Reduced Flow or Pressure: Typically caused by worn PTFE diaphragms, blocked fluid passages, or insufficient air supply. Inspection of these components usually identifies the root cause.

• Failure to Prime: Often results from air leaks in suction piping, worn valve components, or insufficient immersion of the suction line. Checking the suction system integrity and valve condition generally resolves priming issues.

• Irregular Cycling: Usually related to air supply issues, restricted exhaust, or wear in the air distribution system. Cleaning the air filter and inspecting the air valve typically addresses these concerns.

Comparison With Alternative Models

The YAMADA NDP-20 series offers multiple configuration options to suit specific application requirements. The NDP-20BST specifically features a stainless steel body with PTFE diaphragm, positioning it as the premium solution for aggressive chemical applications requiring maximum corrosion resistance. Alternative configurations within the same series include different material combinations to address specific operational needs

:

*Table 2: Comparison of NDP-20 series models with different material configurations*

The NDP-20BST occupies the premium position in this range for handling the most challenging chemical applications where both corrosion resistance and structural integrity are essential requirements.

Conclusion and Summary

The YAMADA NDP-20BST pneumatic diaphragm pump represents the ultimate solution for corrosive applications, combining advanced PTFE diaphragm materials with rugged stainless steel construction. Its specialized design, revolutionary air valve system, and contamination-resistant features make it an outstanding choice for demanding industrial fluid handling applications where chemical resistance, equipment durability, and fluid purity are paramount. With its proven durability in aggressive environments and minimal maintenance requirements, the NDP-20BST delivers long-term value that exceeds its initial investment.

For operations requiring reliable transfer of aggressive chemicals, high-purity fluids, or challenging industrial solutions, the YAMADA NDP-20BST offers a dependable solution backed by decades of engineering refinement and quality manufacturing. Its compliance with international standards and certifications provides additional assurance of performance and reliability, making it a preferred choice among engineers and maintenance professionals in the most demanding industries worldwide.

The pump's inherent safety features, including explosion-proof operation, dry-run capability, and superior chemical resistance, further enhance its suitability for challenging industrial environments. Whether used in semiconductor fabrication, pharmaceutical production, chemical processing, or any application requiring maximum chemical compatibility and equipment longevity, the YAMADA NDP-20BST continues the company's tradition of delivering exceptional pumping solutions that meet the evolving needs of modern industry.
