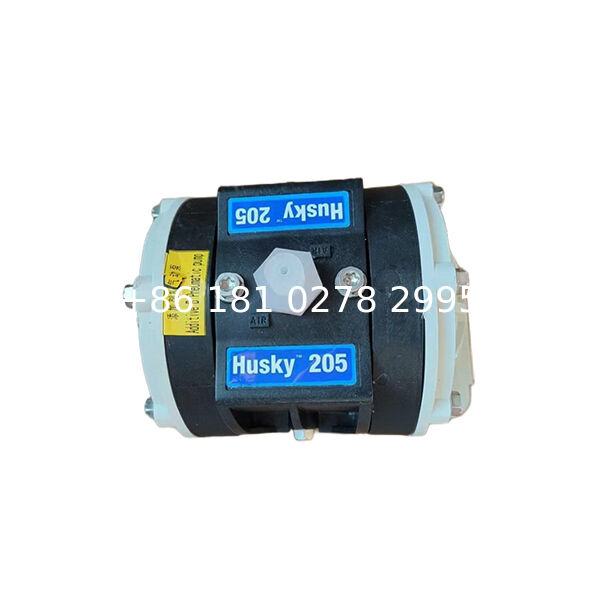

The Graco Husky 205 D11026 is a compact air operated double diaphragm pump designed for low-flow industrial transfer, dosing, sampling, and process-fluid applications. This model uses an acetal fluid section with stainless steel fibers, acetal check valves, and Santoprene diaphragms.
The D11026 delivers a maximum flow rate of 18.9 L/min and operates at fluid pressures up to 7 bar. Its pneumatic 1:1 design allows flow to be adjusted through the air supply, making it suitable for applications where smooth control and reliable low-volume transfer are required.
This pump features 1/4 in. female NPT fluid ports, a 1/4 in. NPT air inlet, and a 1/4 in. NPT exhaust connection. The compact construction and 1.1 kg pump weight support installation in laboratory systems, chemical dosing skids, wash systems, small manufacturing equipment, and general industrial fluid-transfer lines.
The spring-loaded check valve design improves priming performance and helps the pump operate reliably in different mounting orientations. Before use, verify fluid compatibility with acetal, Santoprene, PTFE, and stainless-steel-containing wetted materials.
Key Features
- Husky 205 compact pneumatic diaphragm pump
- D11026 acetal and Santoprene configuration
- Maximum flow rate of 18.9 L/min
- Maximum working pressure of 7 bar
- 1/4 in. female NPT fluid and air ports
- Spring-loaded check valves for improved priming
- 1:1 air-to-fluid pressure ratio
- Handles solids up to 1.5 mm
- Lightweight 1.1 kg pump body
- Suitable for controlled industrial fluid transfer
Applications
- Chemical dosing systems
- Industrial cleaning-fluid transfer
- Laboratory and pilot process equipment
- Small-scale wastewater treatment
- Detergent and wash-fluid handling
- Sampling and dispensing systems
- General manufacturing fluid transfer
- Compatible water-based process fluids
FAQ
Q1: What is the maximum flow rate of D11026?
A: The maximum free flow rate is 18.9 L/min, equivalent to 5.0 GPM.
Q2: What is the maximum working pressure?
A: The maximum fluid working pressure is 7 bar, 0.7 MPa, or 100 psi.
Q3: What material is used for the pump fluid section?
A: The D11026 uses acetal with stainless steel fibers in the fluid section.
Q4: What diaphragm material is used?
A: This model uses Santoprene diaphragms.
Q5: What are the connection sizes?
A: Fluid inlet, fluid outlet, air inlet, and air exhaust connections are all 1/4 in. female NPT.
Q6: Can the pump handle solid particles?
A: Yes. It can handle solids up to 1.5 mm, depending on fluid viscosity and operating conditions.
Q7: Is D11026 suitable for every chemical?
A: No. Check compatibility with acetal, Santoprene, PTFE, and stainless-steel-containing wetted materials before operation.
