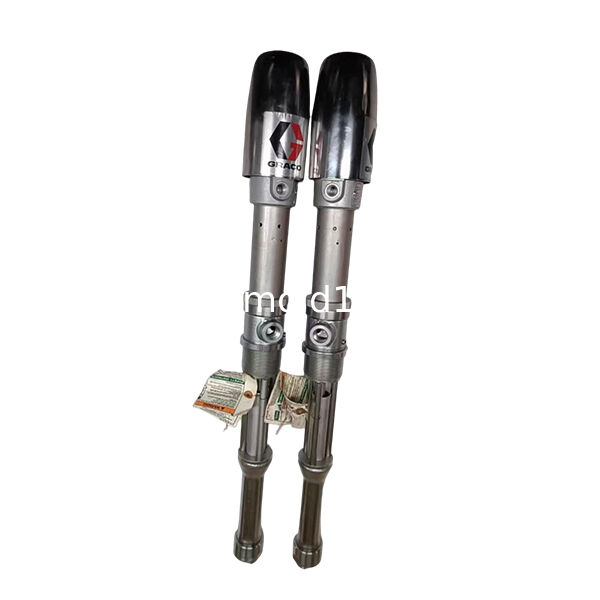

GRACO 223954 2:1 Ratio Stainless Steel Transfer Pump

The 223954 is a 2:1 ratio stainless steel air-operated piston transfer pump designed for reliable transfer of industrial fluids from 5 gallon containers.

Featuring stainless steel construction and PTFE packed sealing components, this pump provides durable performance for applications requiring chemical compatibility and consistent material delivery.

Unlike diaphragm pumps, the piston transfer design provides higher pressure output for transferring medium to high viscosity materials such as sealants, adhesives and coatings.

The 2:1 air-to-fluid ratio delivers balanced pressure amplification, making it suitable for supply and transfer applications where stable material flow is required.

Key Features

• 2:1 fluid-to-air ratio design
• Stainless steel pump construction
• PTFE packed sealing system
• Air operated piston mechanism
• Designed for 5 gallon pail supply
• High pressure material transfer
• Suitable for viscous fluids

Typical Applications

• Adhesive transfer systems
• Sealant supply equipment
• Coating material transfer
• Industrial dispensing systems
• Manufacturing process supply

Piston Pump Advantage

Compared with diaphragm pumps:

• Higher output pressure
• Better for viscous materials
• Stable continuous material supply
• Suitable for transfer applications

Stainless Steel Construction

The stainless steel wetted structure provides:

• Improved corrosion resistance
• Better durability
• Compatibility with demanding materials
• Long service life

2:1 Pressure Ratio Design

The air motor design provides:

• Increased fluid outlet pressure
• Stable material delivery
• Reduced external pumping requirements
• Reliable operation under industrial conditions

Model Difference

223954

2:1 ratio piston transfer pump

Stainless steel construction

5 gallon pail application

Husky Diaphragm Pump Series

Air operated double diaphragm design

For general fluid transfer

Z-Series Pump

Precision metering design

For two-component material dispensing

Installation Notes

• Confirm material compatibility
• Check air supply pressure
• Verify container size
• Inspect PTFE packing condition
• Use clean compressed air

FAQ

Q1: What type of pump is 223954?

A1: It is an air-operated piston transfer pump.

Q2: What does 2:1 ratio mean?

A2: It means the pump provides approximately twice the air input pressure as fluid output pressure.

Q3: What material is the pump made of?

A3: It uses stainless steel construction with PTFE packed seals.

Q4: Is this a diaphragm pump?

A4: No. It is a piston transfer pump designed for material supply applications.

Q5: What materials can it transfer?

A5: It is suitable for adhesives, sealants, coatings and other industrial fluids depending on compatibility.
