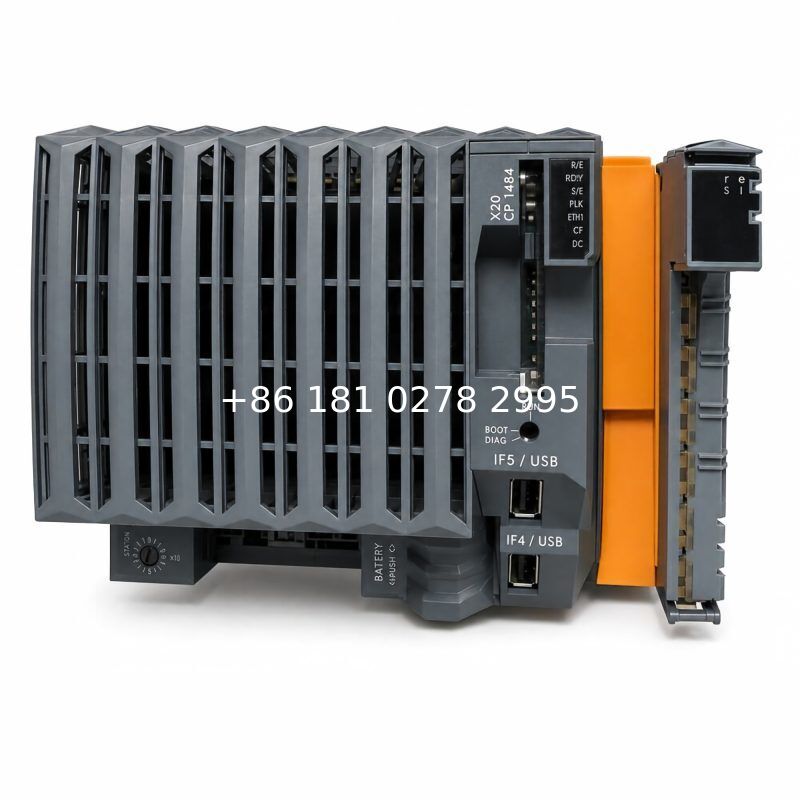

The B&R X20CP1484 PLC CPU Controller is a compact programmable controller designed for standard industrial automation applications requiring reliable control performance, modular expansion capability, and integrated industrial communication interfaces.

As part of the B&R X20 PLC family, the X20CP1484 combines an Intel Celeron 266 MHz processor with an additional I/O processor to provide deterministic control performance for machine automation tasks. Its compact design makes it suitable for applications where cabinet space and system simplicity are important.

The controller integrates Ethernet, POWERLINK, USB, and RS232 communication interfaces, allowing direct connection with industrial networks, engineering tools, visualization systems, and distributed I/O devices. The onboard POWERLINK interface supports real-time communication for synchronized automation applications.

Compared with higher-performance X20 controllers such as the X20CP1585, the X20CP1484 focuses on compact machine control rather than high-end data processing. It is an ideal solution for standard automation equipment, compact production machines, and applications requiring reliable PLC control with modular X20 I/O expansion.

The fanless architecture improves system reliability by eliminating mechanical cooling components, making the controller suitable for long-term industrial operation.

The X20CP1484 supports removable CompactFlash application memory and one additional X20 interface module slot, allowing flexible expansion with communication modules or system accessories.

This product is a PLC CPU controller only. It requires compatible X20 I/O modules, power supply modules, and engineering configuration through Automation Studio.

Key Features

B&R X20 PLC CPU controller

Intel Celeron 266 MHz processor

Integrated I/O processor

Ethernet communication onboard

POWERLINK real-time network support

2 USB interfaces

RS232 communication interface

CompactFlash removable application memory

1 X20 interface expansion slot

Fanless industrial design

Compact DIN rail installation

Compatible with X20 modular I/O system

Suitable for standard automation applications

Typical Applications

Packaging machines

Assembly automation systems

Material handling equipment

Small and medium industrial machines

Production line control systems

PLC-based motion applications

Process automation equipment

Machine retrofit projects

Industrial Ethernet control systems

Installation Notes

Before installation, verify:

Product model:

X20CP1484

Check:

24 VDC power supply

X20 I/O module compatibility

CompactFlash memory configuration

POWERLINK network settings

Ethernet communication parameters

Automation Studio project configuration

The X20CP1484 requires:

• X20 power supply module
• X20 I/O modules
• Compatible terminal blocks
• Automation Studio engineering software

Before commissioning:

Configure CPU parameters

Set communication addresses

Download PLC application

Verify I/O communication

Test POWERLINK communication

Confirm machine control functions

FAQ

Q

What is B&R X20CP1484?

A

The X20CP1484 is a compact X20 PLC CPU controller designed for industrial machine automation.

Q

What processor does X20CP1484 use?

A

It uses an Intel Celeron 266 MHz processor with an additional I/O processor.

Q

Does X20CP1484 support POWERLINK?

A

Yes. It includes an onboard POWERLINK V1/V2 interface for real-time industrial communication.

Q

What is the difference between X20CP1484 and X20CP1585?

A

X20CP1484 is a compact Celeron-based controller for standard automation tasks, while X20CP1585 uses a faster Intel Atom processor for more demanding applications.

Q

Can X20CP1484 connect X20 I/O modules?

A

Yes. It supports modular expansion through the B&R X20 system.

Q

Does X20CP1484 require a fan?

A

No. It uses a fanless industrial design.

Q

Is X20CP1484 a motion controller?

A

It is a PLC CPU controller. Motion functions depend on the configured system architecture and connected motion modules.
