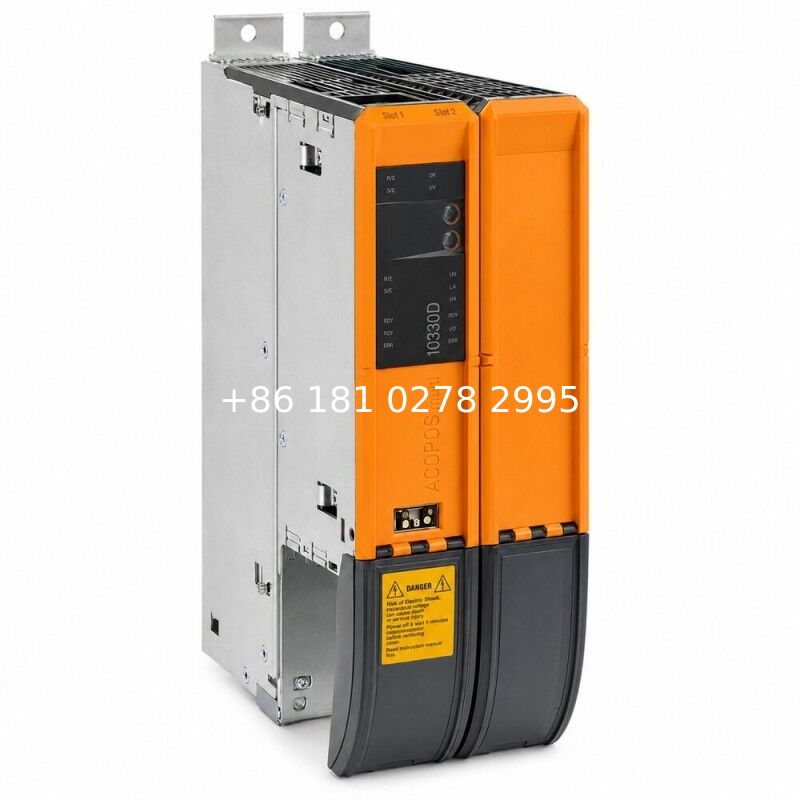

The B&R 8BVI0330HWD0.000-1 ACOPOSmulti Servo Drive Module is a high-current dual-axis inverter module designed for demanding industrial automation systems requiring powerful servo control, precise synchronization, and reliable motion performance.

Unlike ACOPOSmulti passive power supply modules, this unit does not generate the DC bus voltage. Instead, it receives power from the ACOPOSmulti DC bus and converts the electrical energy into controlled motor output for connected servo motors.

The module integrates two independent servo drive channels, allowing two servo axes to be controlled within one compact ACOPOSmulti module. This design reduces cabinet space requirements and simplifies wiring in multi-axis automation systems.

With a 33A current class and approximately 24.4kW continuous power capability, the 8BVI0330HWD0.000-1 is designed for larger servo motors, high-inertia loads, and applications requiring higher acceleration torque compared with lower-current ACOPOSmulti modules.

Compared with the 8BVI0220HWD0.000-1, this model provides a higher current capacity, making it suitable for heavier mechanical loads, larger machine axes, and more demanding motion profiles.

The integrated Safe Pulse Disabling (STO) function supports safety-oriented machine designs by preventing unintended torque generation during safety stop conditions. The module also provides connections for motor holding brakes and motor temperature sensors for complete servo motor integration.

The ACOPOSmulti modular architecture allows this servo drive module to be combined with compatible power supplies, mounting plates, controllers, and servo motors to create scalable industrial motion systems.

This product is a servo drive module only. It is not a power supply, PLC controller, servo motor, or standalone inverter.

Key Features

B&R ACOPOSmulti servo drive module

33A high-current servo output class

Dual-axis independent servo control

750VDC DC bus architecture

24.4kW continuous power capability

Integrated Safe Pulse Disabling (STO)

Functional safety support

Motor brake connection

Motor temperature sensor monitoring

Two ACOPOSmulti module slots

Wall-mounted modular design

High-load motion control capability

Compatible with B&R servo motor systems

Typical Applications

Heavy-duty packaging machinery

Large assembly automation

Industrial robotics

High-load positioning systems

Printing and converting equipment

Material handling machines

Multi-axis production lines

Precision automation equipment

Large servo retrofit projects

Installation Notes

Before installation, verify:

Product model:

8BVI0330HWD0.000-1

Confirm:

ACOPOSmulti power supply capacity

DC bus voltage compatibility

Servo motor current rating

Encoder feedback type

Motor brake wiring

Temperature sensor connection

Safety circuit configuration

Required components:

• ACOPOSmulti Power Supply Module
• ACOPOSmulti Mounting Plate
• Motion Controller
• Compatible Servo Motors

Before commissioning:

Check DC bus voltage

Configure motor parameters

Verify encoder feedback

Test STO safety function

Check brake operation

Perform axis movement test

Confirm servo response

FAQ

Q

What is B&R 8BVI0330HWD0.000-1?

A

It is an ACOPOSmulti dual-axis servo drive module designed for high-power industrial motion control applications.

Q

Is 8BVI0330HWD0.000-1 a power supply module?

A

No. It is an inverter module that receives DC bus power and controls connected servo motors.

Q

How many axes can this module control?

A

It controls two independent servo axes.

Q

What is the current rating?

A

The module belongs to the 33A high-current ACOPOSmulti servo drive class.

Q

What is the difference between 8BVI0330 and 8BVI0220?

A

The 8BVI0330 provides higher current capability and is designed for larger motors and heavier mechanical loads.

Q

Does it support safety functions?

A

Yes. It supports Safe Pulse Disabling (STO) for safety-related machine applications.

Q

Can it operate independently?

A

No. It requires an ACOPOSmulti power supply, mounting system, controller, and compatible servo motors.
