Product Series: |
B&R ACOPOSmulti |
Product Type: |
Passive Power Supply Module |
Mounting Type: |
Wall Mounting |
Rated Current: |
44 A |
Mains Supply: |
3 X 380 To 500 VAC ±10% |
Mains Frequency: |
50 Or 60 Hz ±4% |
Maximum Installed Load: |
30.4 KVA |
DC Bus Voltage: |
537 To 707 VDC |
Continuous DC Bus Power: |
16 KW |
Peak Supply Power: |
48 KW |
DC Bus Capacitance: |
1320 µF |
Maximum Chargeable DC Bus Capacitance At 400 VAC: |
14.4 MF |
Maximum Chargeable DC Bus Capacitance At 480 VAC: |
10 MF |
24 VDC Supply Input: |
25 VDC ±1.6% |
Maximum 24 VDC Power Consumption: |
12 W |
Regenerative Function: |
Not Supported |
External Braking Resistor Connection: |
Supported |
Braking Resistor Peak Power: |
65 KW Maximum 1 Second |
Braking Resistor Continuous Power: |
3 KW |
Minimum Braking Resistance: |
7.5 Ω |
Motor Short Circuit Brake: |
Integrated Passive Function |
Protection Class: |
IP20 |
Operating Temperature: |
5 To 40°C Nominal |
Maximum Operating Temperature: |
55°C |

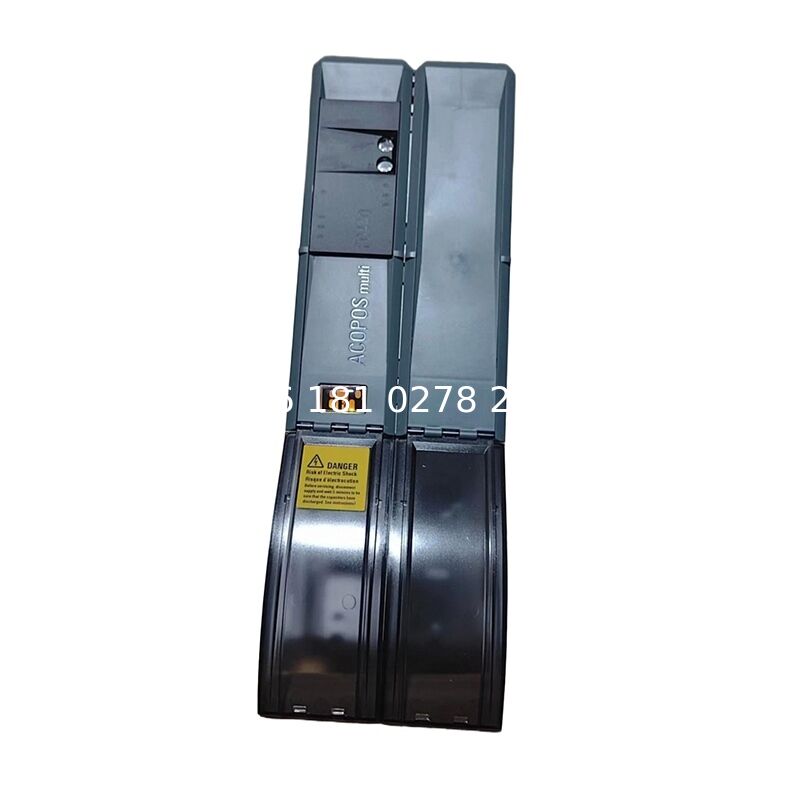

B&R 8B0P0440HW00.001-1 ACOPOSmulti 44A Passive Power Supply Module
The B&R 8B0P0440HW00.001-1 is a passive ACOPOSmulti power supply module for multi-axis motion systems. It converts the three-phase mains supply into the DC bus voltage required by connected ACOPOSmulti inverter modules.
This 44 A wall-mounted module is intended for drive systems that require a common DC bus with up to 16 kW continuous supply power and up to 48 kW peak output power. It is suitable for machinery using multiple servo inverter axes from one shared ACOPOSmulti supply arrangement.
The module includes an integrated passive motor short circuit brake function and a connection for an external braking resistor. The braking resistor connection supports controlled dissipation of regenerated energy during deceleration, but this passive supply module does not provide regenerative energy return to the mains.
The 8B0P0440HW00.001-1 is a power supply module only. It should not be described as a servo drive, PLC, POWERLINK controller, motor amplifier, active regenerative supply, or standalone power distribution unit.
Key Features
44 A passive ACOPOSmulti power supply module
Three-phase 380 to 500 VAC input range
16 kW continuous DC bus power
48 kW peak supply power
537 to 707 VDC DC bus voltage
Wall mounting design
External braking resistor connection
Passive motor short circuit brake function
24 VDC auxiliary supply input
Non-regenerative power supply design
IP20 cabinet installation
Suitable for multi-axis ACOPOSmulti systems
Typical Applications
Multi-axis packaging machinery
Printing and converting equipment
Servo transfer systems
Assembly machinery
Material handling systems
Automated production lines
Motion-control retrofit projects
ACOPOSmulti drive cabinets
Installation Notes
Confirm the original power supply model, mains voltage, connected inverter modules, DC bus configuration, braking resistor requirement, and installed fuse arrangement before replacement.
This module requires a three-phase 380 to 500 VAC mains supply. It is not intended for single-phase operation.
Use the correct external braking resistor where required by the machine configuration. Confirm the resistance value, wiring, and thermal installation before commissioning.
The official specification requires appropriate mains protection. Do not use this module as an active regenerative supply because it does not return braking energy to the mains.
FAQ
Q
Is 8B0P0440HW00.001-1 a servo drive
A
No it is a passive ACOPOSmulti power supply module
Q
What mains supply does this model require
A
It operates from three-phase 380 to 500 VAC supply
Q
What is the continuous DC bus power
A
The continuous DC bus power is 16 kW
Q
Does this module support regenerative operation
A
No this is a passive non-regenerative power supply module
Q
Can an external braking resistor be connected
A
Yes it includes a connection for an external braking resistor
Q
What is the rated current
A
The rated current is 44 A
