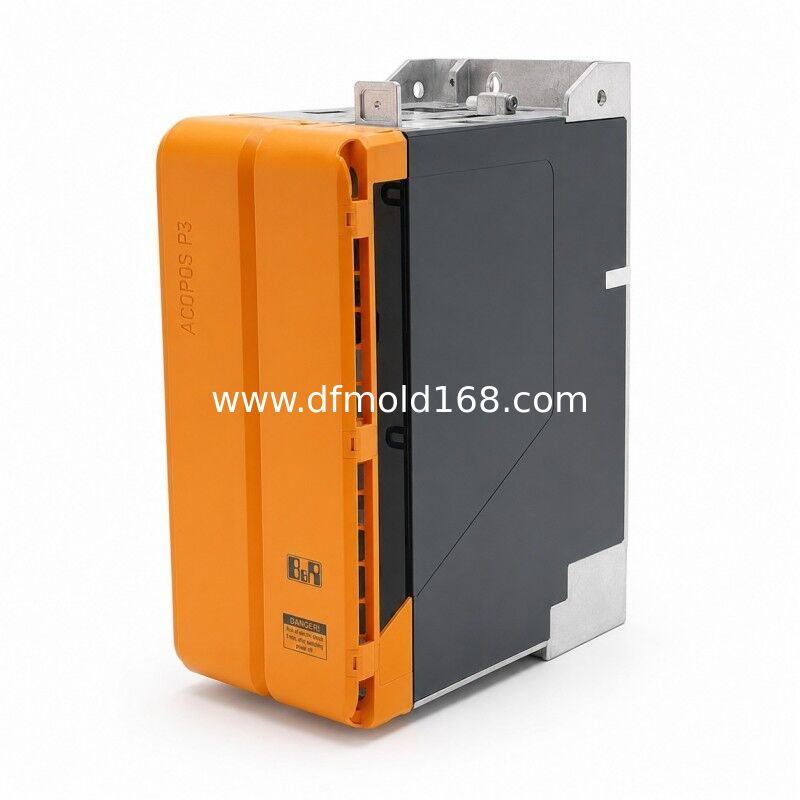

B&R 8EI034HWSS0.0300-1 ACOPOS P3 SafeMOTION Servo Drive 34A 14kW

The B&R 8EI034HWSS0.0300-1 is a high-power single-axis ACOPOS P3 drive with integrated SafeMOTION capability. It provides 34 A continuous current, 85 A peak current, 14 kW continuous power and up to 35 kW peak power.

Unlike the standard HWS10 models, the HWSS0 configuration belongs to the ACOPOS P3 SafeMOTION family. This makes it suitable for machine axes where motion performance and functional-safety functions must be integrated into the same drive platform.

Correct replacement requires more than matching the 34 A rating. The complete safety project, hardware revision, Automation Studio configuration, firmware, encoder, motor brake and safety network settings must also be verified.

Key Features

• Integrated ACOPOS P3 SafeMOTION capability
• 34 A continuous and 85 A peak output current
• 14 kW continuous and 35 kW peak power
• Designed for one high-power safety-related motion axis
• POWERLINK V2 communication with two-port hub
• Configurable digital multi-encoder interface
• Supports an external braking resistor for regenerative loads

Typical Applications

• Safety-controlled high-power machine axes
• Large servo presses and transfer mechanisms
• Heavy material-handling equipment
• Printing and converting machinery with safe motion requirements
• Automated production cells requiring monitored motion
• Exact replacement in an existing ACOPOS P3 SafeMOTION installation

FAQ

Q1. What makes the 8EI034HWSS0.0300-1 different from an HWS10 model?
The HWSS0 model belongs to the SafeMOTION product family. An HWS10 module is a standard motion drive and should not be treated as an equivalent safety replacement.

Q2. Does installing this drive automatically make a machine safety compliant?
No. Functional safety depends on the complete safety design, configuration, wiring, firmware, validation and applicable machine standards.

Q3. What are its rated output values?
The series is rated for 34 A continuous current, 85 A peak current and 14 kW continuous motor power at the specified operating conditions.

Q4. Can a standard 34 A drive replace this SafeMOTION model?
Not where the machine uses integrated safety functions. The complete HWSS0 material number and safety configuration must be maintained unless an authorized redesign is completed.
