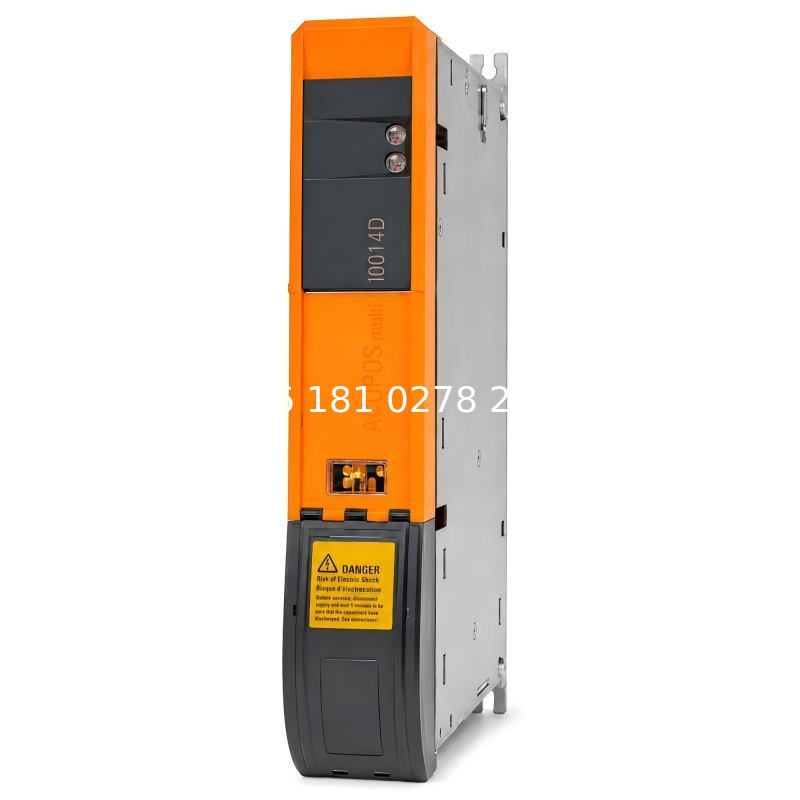

The B&R 8BVI0014HWD0.000-1 ACOPOSmulti Servo Drive Module is a compact two-axis inverter module designed for space-saving automation systems requiring accurate servo control and reliable synchronized motion performance.

Unlike ACOPOSmulti power supply modules, this unit does not generate the DC bus voltage. It receives energy from the ACOPOSmulti DC bus and converts it into controlled motor output for connected servo motors.

The module integrates two independent servo inverter channels, allowing two servo axes to be controlled within a single compact drive unit. This dual-axis design helps reduce cabinet space, minimize wiring complexity, and create flexible modular motion control systems.

With a 1.9A motor current rating, the 8BVI0014HWD0.000-1 is optimized for small servo motors and lightweight mechanical axes where precision positioning, compact installation, and efficient operation are more important than maximum output power.

Compared with the 8BVI0028HWD0.000-1, the 8BVI0014HWD0.000-1 provides a lower current class, making it suitable for smaller motion axes, compact machines, and applications with reduced torque requirements.

The integrated Safe Pulse Disabling (STO) function supports safety-oriented machine designs by preventing unintended torque generation during safety stop conditions. The module also provides connections for motor holding brakes and temperature sensors for complete servo motor integration.

The ACOPOSmulti modular architecture allows this drive module to be combined with compatible power supply modules, mounting plates, controllers, and servo motors to create scalable automation solutions.

This product is a servo drive module only. It requires an ACOPOSmulti power supply module, mounting plate, controller, and compatible servo motor system.

Key Features

B&R ACOPOSmulti servo drive module

Compact dual-axis inverter design

1.9A servo current capability

Two independent motor control channels

750VDC DC bus architecture

2.91kW continuous power capability

Integrated Safe Pulse Disabling (STO)

Functional safety support

Motor brake connection

Motor temperature sensor monitoring

Two ACOPOSmulti module slots

Wall-mounted compact design

Low-power servo application optimized

Compatible with ACOPOSmulti servo systems

Typical Applications

Compact packaging machines

Small assembly equipment

Pick-and-place systems

Electronic manufacturing equipment

Laboratory automation systems

Small robotic mechanisms

Light material handling systems

Precision positioning equipment

Compact industrial machines

Installation Notes

Before installation, confirm:

Product model:

8BVI0014HWD0.000-1

Verify:

ACOPOSmulti power supply capacity

DC bus voltage compatibility

Servo motor rated current

Encoder feedback type

Motor brake wiring

Temperature sensor connection

Safety circuit configuration

Required components:

• ACOPOSmulti Power Supply Module
• ACOPOSmulti Mounting Plate
• Motion Controller
• Compatible Servo Motors

Before commissioning:

Check DC bus voltage

Configure motor parameters

Verify encoder feedback

Test STO safety function

Check brake operation

Perform axis movement test

Confirm servo response

FAQ

Q

What is B&R 8BVI0014HWD0.000-1?

A

It is an ACOPOSmulti two-axis servo drive module designed for compact industrial motion control applications.

Q

Is 8BVI0014HWD0.000-1 a power supply module?

A

No. It is an inverter module that receives DC bus power and controls connected servo motors.

Q

How many axes can this module control?

A

It controls two independent servo axes.

Q

What is the rated current?

A

The module provides a 1.9A motor current rating.

Q

What is the difference between 8BVI0014 and 8BVI0028?

A

The 8BVI0014HWD0.000-1 is a lower-current compact servo module for smaller axes, while the 8BVI0028HWD0.000-1 provides higher current capability for increased load requirements.

Q

Does it support safety functions?

A

Yes. The module supports Safe Pulse Disabling (STO) and functional safety functions.

Q

Can it work independently?

A

No. It requires the ACOPOSmulti power supply system, mounting plate, controller, and compatible servo motors.
