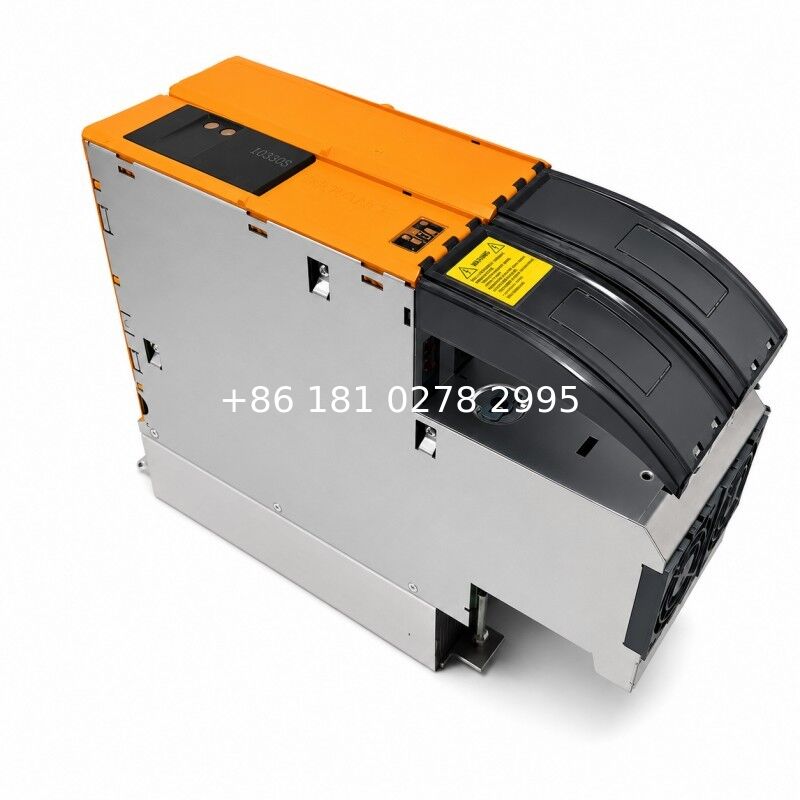

The B&R 8BVI0330HWS0.000-1 ACOPOSmulti Servo Drive Module is a high-performance single-axis inverter module designed for advanced industrial automation systems requiring maximum servo power, precise motion control, and reliable operation under demanding mechanical loads.

Unlike ACOPOSmulti power supply modules, this unit does not generate the DC bus voltage. It receives energy from the ACOPOSmulti DC bus and converts it into controlled motor output for one connected servo motor.

With a 33A continuous current capability and 24kW motor power capacity, the 8BVI0330HWS0.000-1 is designed for large servo motors, high-inertia loads, and applications requiring strong acceleration torque and stable dynamic response.

The single-axis architecture provides one dedicated servo control channel, allowing independent parameter configuration, commissioning, and optimization for each machine axis. Compared with multi-axis modules, this structure offers greater flexibility when individual axes require different performance settings.

Compared with the 8BVI0220HWS0.000-1, the 8BVI0330HWS0.000-1 provides a higher current class, enabling control of larger motors and heavier mechanical systems.

Compared with the 8BVI0330HWD0.000-1 dual-axis version, the HWS model provides a dedicated single-axis inverter, making it suitable for applications where maximum axis performance, independent tuning, and future system expansion are required.

The integrated Safe Pulse Disabling (STO) function supports safety-oriented machine designs. The module also includes motor holding brake connection and temperature sensor monitoring for complete servo motor integration.

The ACOPOSmulti modular architecture allows this inverter module to be combined with ACOPOSmulti power supply modules, mounting plates, controllers, and servo motors to build scalable high-performance automation systems.

This product is a servo drive module only. It requires an ACOPOSmulti power supply module, mounting plate, controller, and compatible servo motor system.

Key Features

B&R ACOPOSmulti servo drive module

Single-axis high-power inverter design

33A continuous motor current capability

83A peak current capability

24kW continuous motor power

750VDC DC bus architecture

Dedicated servo axis control

Integrated Safe Pulse Disabling (STO)

Functional safety support

Motor brake connection

Motor temperature monitoring

Two ACOPOSmulti plug-in module slots

Wall-mounted modular installation

Compatible with B&R servo motor systems

Typical Applications

Heavy-duty packaging machinery

Industrial robotics

Large assembly systems

Printing and converting equipment

High-load positioning platforms

Material handling machines

Production line automation

Precision manufacturing equipment

Large servo retrofit projects

High-performance motion control systems

Installation Notes

Before installation, verify:

Product model:

8BVI0330HWS0.000-1

Confirm:

ACOPOSmulti power supply capacity

DC bus voltage compatibility

Servo motor current rating

Encoder feedback type

Motor brake wiring

Temperature sensor connection

Safety circuit configuration

Required components:

• ACOPOSmulti Power Supply Module
• ACOPOSmulti Mounting Plate
• Motion Controller
• Compatible Servo Motor

Before commissioning:

Check DC bus voltage

Configure motor parameters

Verify encoder feedback

Test STO safety function

Check motor brake operation

Perform axis movement test

Confirm servo response

FAQ

Q

What is B&R 8BVI0330HWS0.000-1?

A

It is an ACOPOSmulti high-power single-axis servo drive module designed for demanding industrial motion applications.

Q

Is 8BVI0330HWS0.000-1 a power supply module?

A

No. It is a servo inverter module that converts ACOPOSmulti DC bus power into controlled motor output.

Q

How many axes can this module control?

A

It controls one independent servo axis.

Q

What is the continuous current rating?

A

The module provides 33Aeff continuous motor current capability.

Q

What is the peak current?

A

The module supports up to 83Aeff peak current.

Q

What is the difference between 8BVI0330HWS0.000-1 and 8BVI0330HWD0.000-1?

A

The HWS version is a single-axis servo drive module, while the HWD version provides two-axis servo control.

Q

What is the difference between 8BVI0220HWS0.000-1 and 8BVI0330HWS0.000-1?

A

The 8BVI0330HWS0.000-1 provides higher current capability and power output, making it suitable for larger motors and heavier loads.

Q

Does it support safety functions?

A

Yes. It supports Functional Safety and Safe Pulse Disabling (STO).

Q

Can it work independently?

A

No. It requires an ACOPOSmulti power supply system, mounting components, controller, and compatible servo motor.
