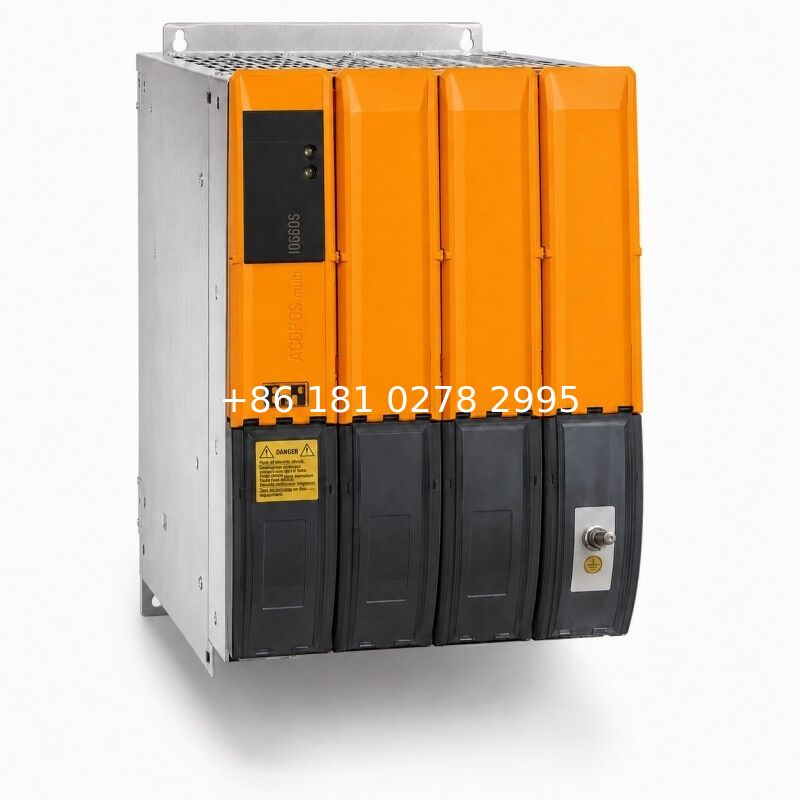

The B&R 8BVI0660HWS0.000-1 ACOPOSmulti Servo Drive Module is an ultra-high-power single-axis inverter module designed for advanced industrial automation systems requiring maximum servo performance, extremely high torque capability, and precise motion control.

Unlike ACOPOSmulti power supply modules, this unit does not generate the DC bus voltage. It receives energy from the ACOPOSmulti DC bus and converts it into controlled motor output for one connected servo motor.

With a 66A current class and 48.8kW continuous power capability, the 8BVI0660HWS0.000-1 is designed for the most demanding motion applications involving large servo motors, high inertia loads, and heavy mechanical systems. It provides significantly higher output capability than the 8BVI0330HWS0.000-1 and 8BVI0440HWS0.000-1 models.

The single-axis architecture provides a dedicated high-performance servo channel, allowing independent parameter configuration, commissioning, and optimization of large machine axes. This structure is ideal for applications where maximum axis performance and precise control are more important than cabinet density.

Compared with the 8BVI0440HWS0.000-1, the 8BVI0660HWS0.000-1 provides a significantly higher power class, making it suitable for larger servo motors, heavier mechanical loads, and machines requiring greater acceleration torque.

Compared with multi-axis ACOPOSmulti modules, the HWS single-axis design provides independent axis expansion and flexible system configuration for large automation platforms.

The integrated Safe Pulse Disabling (STO) function supports safety-oriented machine designs by preventing unintended torque generation during safety stop conditions. The module also supports motor brake connection and temperature sensor monitoring for complete servo motor integration.

The ACOPOSmulti modular architecture allows this inverter module to be combined with compatible power supply modules, mounting plates, controllers, and servo motors to create scalable high-performance automation systems.

This product is a servo drive module only. It requires an ACOPOSmulti power supply module, mounting plate, controller, and compatible servo motor system.

Key Features

B&R ACOPOSmulti servo drive module

Single-axis high-power inverter design

66A continuous motor current capability

48.8kW power capacity

750VDC DC bus architecture

Ultra high torque servo motor support

Dedicated servo axis control

Integrated Safe Pulse Disabling (STO)

Functional safety support

Motor brake connection

Motor temperature monitoring

Two ACOPOSmulti plug-in module slots

Wall-mounted modular installation

Compatible with ACOPOSmulti servo systems

Typical Applications

Heavy-duty industrial machinery

Large packaging systems

Industrial robotics platforms

High-load positioning equipment

Printing and converting machinery

Metal processing equipment

Large assembly automation

Material handling systems

High-performance production lines

Servo retrofit projects

Installation Notes

Before installation, verify:

Product model:

8BVI0660HWS0.000-1

Confirm:

ACOPOSmulti power supply capacity

DC bus voltage compatibility

Servo motor current requirement

Encoder feedback type

Motor brake wiring

Temperature sensor connection

Safety circuit configuration

Required components:

• ACOPOSmulti Power Supply Module
• ACOPOSmulti Mounting Plate
• Motion Controller
• Compatible Servo Motor

Before commissioning:

Check DC bus voltage

Configure motor parameters

Verify encoder feedback

Test STO safety function

Check motor brake operation

Perform axis movement test

Confirm servo response

FAQ

Q

What is B&R 8BVI0660HWS0.000-1?

A

It is an ACOPOSmulti ultra-high-power single-axis servo drive module designed for demanding industrial motion applications.

Q

Is 8BVI0660HWS0.000-1 a power supply module?

A

No. It is a servo inverter module that converts ACOPOSmulti DC bus power into controlled motor output.

Q

How many axes can it control?

A

It controls one independent servo axis.

Q

What is the current rating?

A

The module provides a 66A continuous motor current class.

Q

What is the power capability?

A

The module provides 48.8kW continuous power consumption capability.

Q

What is the difference between 8BVI0660HWS0.000-1 and 8BVI0440HWS0.000-1?

A

The 8BVI0660HWS0.000-1 provides a higher current and power class, making it suitable for larger motors and heavier mechanical loads.

Q

What is the difference between 8BVI0660HWS0.000-1 and 8BVI0330HWS0.000-1?

A

The 8BVI0330HWS0.000-1 targets heavy-duty servo applications, while the 8BVI0660HWS0.000-1 is designed for ultra-high-power motion systems.

Q

Does it support safety functions?

A

Yes. It supports Functional Safety and Safe Pulse Disabling (STO).

Q

Can it operate independently?

A

No. It requires an ACOPOSmulti power supply system, mounting components, controller, and compatible servo motor.
