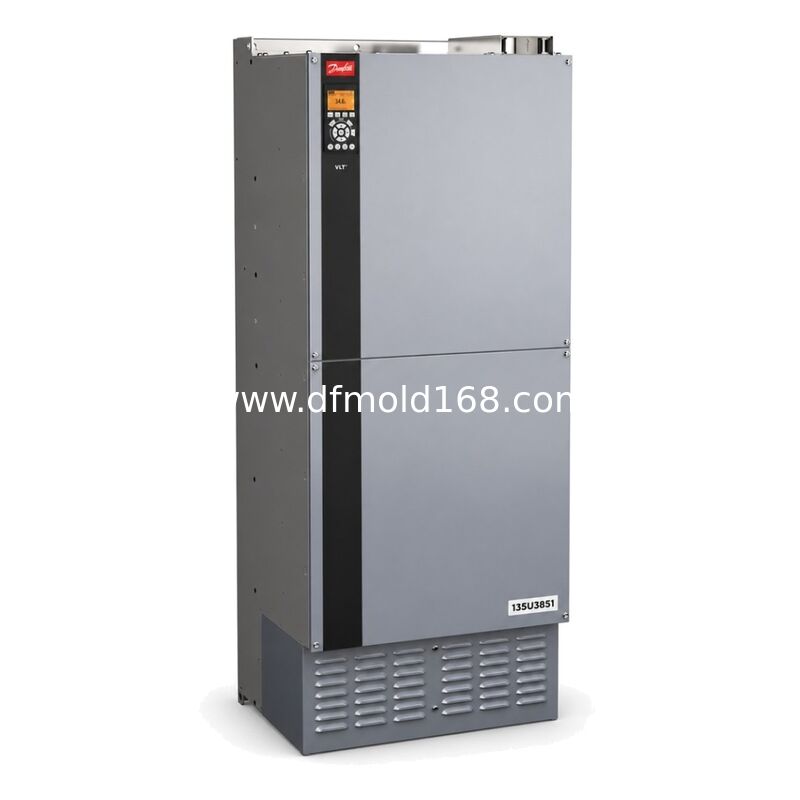

Danfoss 135U3851 FC-302N450T5E54H2BGC3XXSXXXXAXBXCXXXXDX 450kW IP54 Brake VFD

Danfoss 135U3851, type FC-302N450T5E54H2BGC3XXSXXXXAXBXCXXXXDX, is an FC 302 frequency converter in the 450 kW class. This IP54 variant adds a brake chopper to the code 3 mains-option package. It is a candidate for process machinery where the selected enclosure and braking arrangement both need to be retained in a spare-drive order.

The drive controls motor speed to meet the process demand. Selection must account for motor current, operating voltage, acceleration, stopping and overload duty. A shared power rating does not make two configurations directly interchangeable.

Key Features and Application Focus

• IP54 enclosure designation
• factory brake chopper

No A-slot option. IP54 controlled stopping is the main quotation focus. Assess use with the machine designer before specifying the drive for a particular load.

Supply and Quotation Information

Request a current quotation for 135U3851 with the complete type code, quantity and delivery destination. Pricing varies with the confirmed order scope. Estimated lead time is approximately 3 months, subject to confirmation at order placement. Ask the offer to state its validity, lead-time starting point and included accessories.

Compatibility and Selection Note

For an existing installation, send the original nameplate and parameter backup. Compare the supply, motor current, overload duty, enclosure, mains equipment, braking circuit and communication option. Any alternative needs a documented configuration review and commissioning plan. Matching 450 kW alone is insufficient.

Buying and Replacement FAQ

Q1. How do I request a price for 135U3851?

Send product code 135U3851, the full type code, quantity, destination and required date. Include the motor nameplate and application duty so the offer can be checked against the actual requirement.

Q2. Is the brake resistor protected by the drive enclosure?

Do not assume that it is inside the supplied drive or covered by its enclosure rating. Identify the resistor location, protection and cooling as separate parts of the braking design.

Q3. What does the incoming-power scope include?

This type code specifies mains disconnect and fuse under code 3. Ask the quote to identify the supplied package and any additional upstream equipment.

Q4. What should I send for the communication review?

Retain AX on the quotation request. This configuration has no factory A-slot option. If a network connection is needed, specify the protocol and obtain a revised configuration review.

Q5. When does the three-month lead time start?

Ask the quotation to define the starting event, such as order acceptance or payment confirmation. The estimated three months must also identify whether it covers dispatch or arrival. Confirm freight time separately.

Q6. Can another 450 kW drive replace this model?

Only after comparing the complete electrical, mechanical and control configuration. Check the original duty rating and motor current. Ask the offer to list every deviation and the required commissioning work before approving an alternative.
