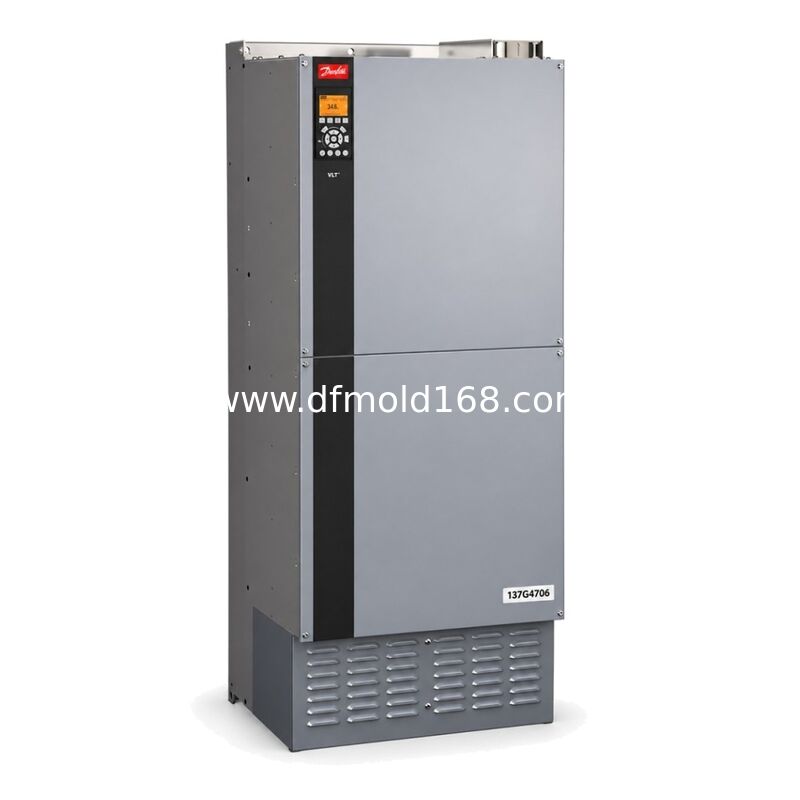

Danfoss 137G4706 FC-302N450T5E54H2XGC3XXSXXXXALBXCXXXXDX 450kW IP54 PROFINET VFD

Danfoss 137G4706, type FC-302N450T5E54H2XGC3XXSXXXXALBXCXXXXDX, is an FC 302 frequency converter in the 450 kW class. This AL-coded IP54 variant is a candidate for a PROFINET motor-control project requiring a protected drive enclosure. It helps the purchaser retain the communication choice while comparing the factory mains configuration and installation scope.

The drive controls motor speed to meet the process demand. Selection must account for motor current, operating voltage, acceleration, stopping and overload duty. A shared power rating does not make two configurations directly interchangeable.

Key Features and Application Focus

• IP54 enclosure designation
• non-braking configuration

PROFINET designation AL. IP54 PROFINET service is the main quotation focus. Assess use with the machine designer before specifying the drive for a particular load.

Supply and Quotation Information

Request a current quotation for 137G4706 with the complete type code, quantity and delivery destination. Pricing varies with the confirmed order scope. Estimated lead time is approximately 3 months, subject to confirmation at order placement. Ask the offer to state its validity, lead-time starting point and included accessories.

Compatibility and Selection Note

For an existing installation, send the original nameplate and parameter backup. Compare the supply, motor current, overload duty, enclosure, mains equipment, braking circuit and communication option. Any alternative needs a documented configuration review and commissioning plan. Matching 450 kW alone is insufficient.

Buying and Replacement FAQ

Q1. How do I request a price for 137G4706?

Send product code 137G4706, the full type code, quantity, destination and required date. Include the motor nameplate and application duty so the offer can be checked against the actual requirement.

Q2. Which network information should accompany an alternative request?

Provide the controller model, protocol requirement, device configuration and a backup of the existing drive settings. Keep AL visible on the purchase specification until the network review is complete.

Q3. What does the incoming-power scope include?

This type code specifies mains disconnect and fuse under code 3. Ask the quote to identify the supplied package and any additional upstream equipment.

Q4. What should I send for the communication review?

Retain AL on the quotation request. Specify PROFINET designation AL, the controller model and the existing network project. Confirm the offered interface before accepting a different code.

Q5. When does the three-month lead time start?

Ask the quotation to define the starting event, such as order acceptance or payment confirmation. The estimated three months must also identify whether it covers dispatch or arrival. Confirm freight time separately.

Q6. Can another 450 kW drive replace this model?

Only after comparing the complete electrical, mechanical and control configuration. Check the original duty rating and motor current. Ask the offer to list every deviation and the required commissioning work before approving an alternative.
