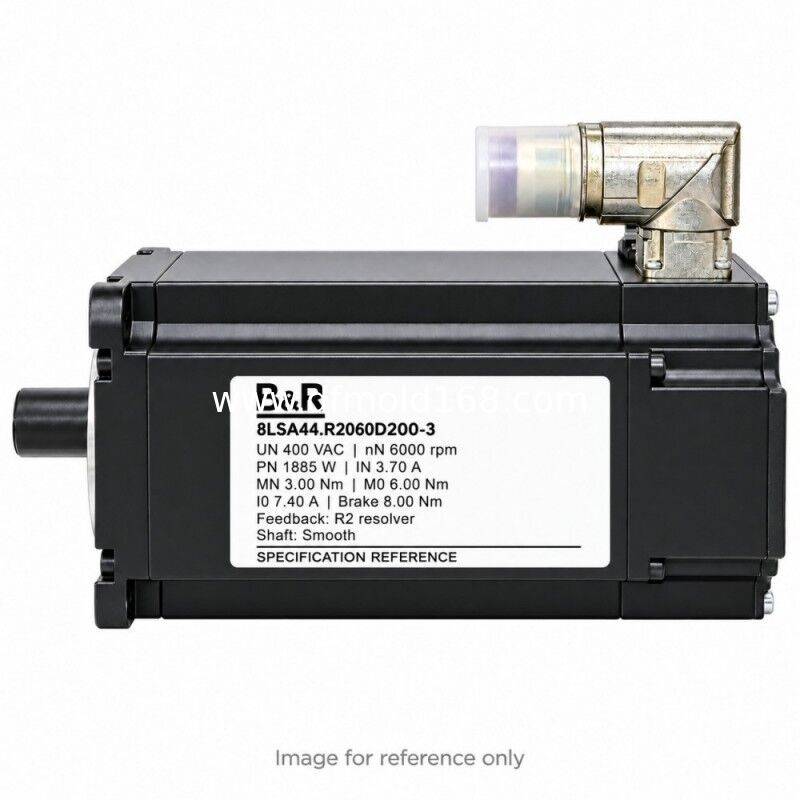

8LSA44.R2060D200-3 AC Servo Motor 6000rpm R2 Resolver 8Nm Brake

The 8LSA44.R2060D200-3 is a servo motor for controlled machine-axis motion. Its resolver feedback, smooth shaft and holding brake are the configuration details to preserve when sourcing a motor for an existing installation. Buyers should request this complete reference rather than use 8LSA44 alone, since motors in the same frame family can require different feedback interfaces, couplings and cable arrangements.

Potential uses include feed axes, positioning mechanisms and synchronized handling equipment, subject to the machine builder’s sizing and control requirements. For a service purchase, identify the function of the original axis and the required operating cycle before comparing an alternative. Continuous running, acceleration and holding loads must each be assessed; a maximum performance figure should not be used as a continuous rating.

Mechanical fit is part of the selection. Check the coupling bore, flange location, connector clearance and cable routing against the existing assembly. The absence of a shaft oil seal also matters when reviewing the installation environment. A mechanically similar motor still needs an electrical and feedback compatibility check before commissioning.

Key Features

· R2 resolver configuration for an axis designed around the corresponding feedback interface.

· Holding-brake version for applications requiring a holding function, subject to the machine design.

· Smooth shaft for a matching coupling arrangement; confirm the existing hub before ordering.

· Angled swivel connector arrangement to be checked against available installation space.

Supply and Quotation Information

Request a current quotation for 8LSA44.R2060D200-3 with the required quantity, delivery country and target arrival date. Include a readable motor nameplate photo and state the acceptable product condition. Price, availability and dispatch time are confirmed for the specific offer.

Ask the quotation to identify the exact model, condition, included accessories, warranty terms, freight charges and price validity. Cables, connectors and couplings should be listed separately if required. For an urgent machine stoppage, state the latest acceptable dispatch date so availability can be checked against the repair schedule.

Compatibility and Selection Note

Compare the full motor reference, feedback type, brake arrangement, shaft and mounting dimensions with the original installation. Provide the servo-drive model and existing motor parameter data when requesting an alternative. An identical frame designation does not establish interchangeability; any proposed change needs review of wiring, feedback configuration and commissioning settings.

Buying and Replacement FAQ

1. How do I obtain a price for this motor?

Send 8LSA44.R2060D200-3, quantity, destination and required date. Add the original nameplate photo and acceptable condition so the quotation can identify the correct unit and delivery scope.

2. Is this the resolver or EnDat version?

This reference uses an R2 resolver. If another feedback version is offered, request a compatibility review against the installed drive and feedback cable before accepting it.

3. Does this model include a holding brake?

Yes. Retain the brake requirement in the enquiry and ask the offer to confirm its condition and connection details. Do not assume a motor without a brake meets the original machine requirement.

4. Can I accept a keyed-shaft alternative?

The specified model has a smooth shaft. Review the coupling and mechanical fit before accepting a different shaft end, even if the frame and speed appear similar.

5. Can I replace another 8LSA44 motor with this one?

Only after checking the full reference and the machine requirements. Send the old motor label, drive model, connector photos and parameter backup for comparison; family membership alone is insufficient.

6. What evidence should I request before placing an order?

Request photos of the offered unit and its label, confirmation of the condition, and any agreed inspection or test information. Record the exact model and accessory scope on the order.

7. Is it available for immediate shipment?

Availability and dispatch time require confirmation with the current quotation. Specify your deadline and ask the offer to distinguish dispatch time from transit time.
