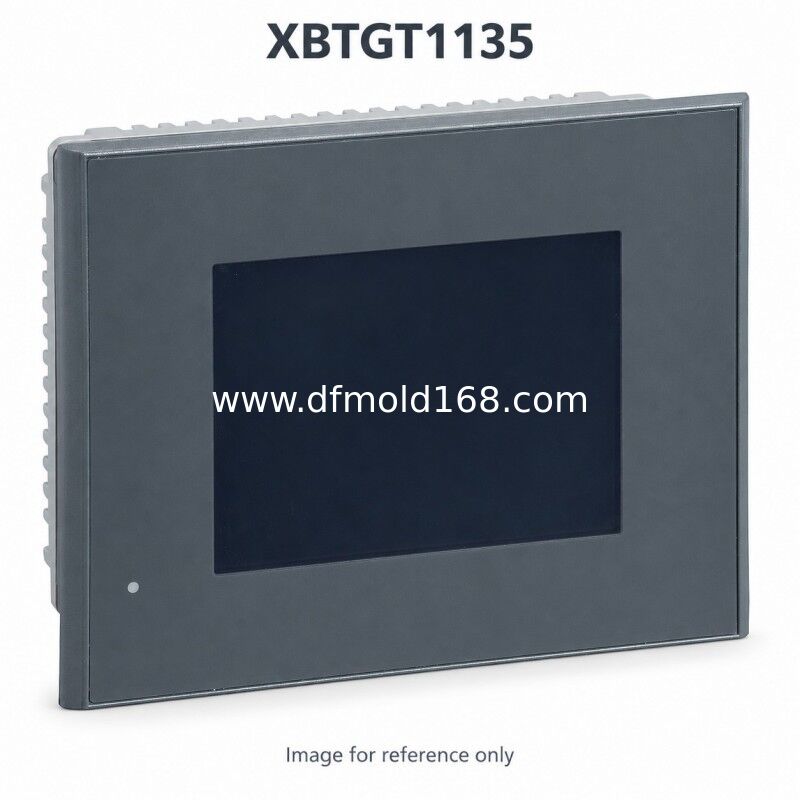

XBTGT1135 3.8in 320x240 Amber Ethernet HMI

Parameters

Product Description

XBTGT1135 is a 3.8-inch operator panel with a 320 x 240 pixel amber monochrome STN display and a 24 VDC supply. Its single RJ45 serial connection supports RS-232C or RS-485. Ethernet is fitted for network communication with a supported controller driver. A configured application can show machine values and alarms and accept permitted operator settings. When buying a spare, compare the complete model and connector layout with the installed panel, preserve the project backup and check the display for readability and touch response.

Supply and Quotation

Request a quotation for XBTGT1135 with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. How does it differ from XBTGT1105?
   This reference includes a 10/100 Mbit/s Ethernet connection in addition to its serial interface. Both references use a 3.8-inch monochrome display; the communication configuration still needs to match the machine project.
2. Is the RJ45 serial connection an Ethernet port?
   No. COM1 uses RJ45 for serial signals. This model also has a separate Ethernet socket. Use the specified cable and pinout for each connection.
3. Can I use a CompactFlash card with this model?
   No CompactFlash slot is fitted on this reference. Confirm the supported USB transfer method and engineering software version before planning application recovery.
4. How do I request a price for XBTGT1135?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
