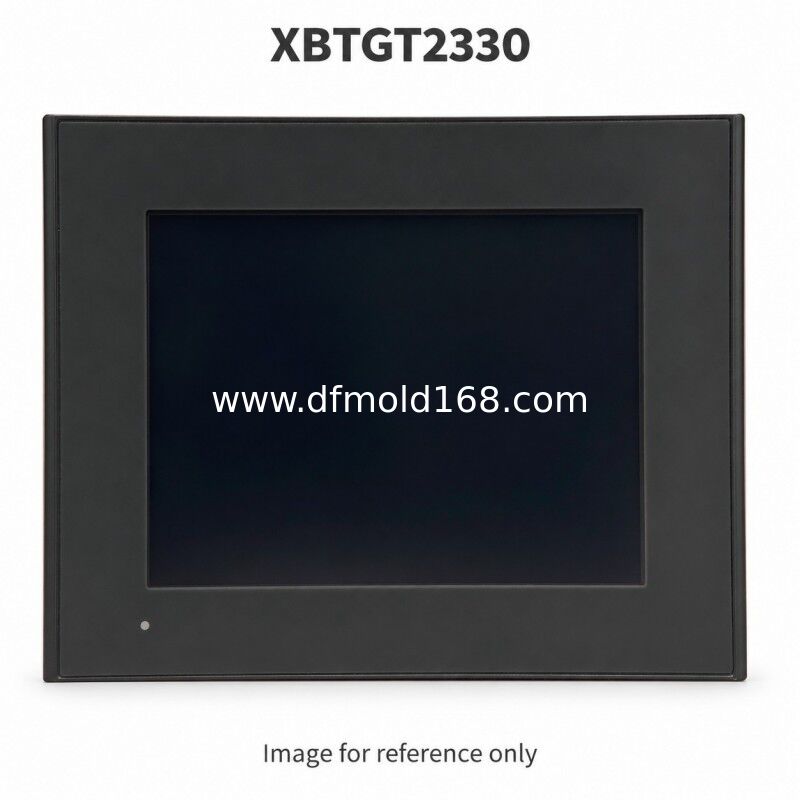

XBTGT2330 5.7in 320x240 Color TFT Ethernet HMI

Parameters

Product Description

XBTGT2330 is a 5.7-inch operator panel with a 320 x 240 pixel color tft lcd display and a 24 VDC supply. It provides a configurable RS-232C/RS-422/RS-485 COM1 connection and a separate RS-485 COM2 connection. Ethernet is fitted for network communication with a supported controller driver. A configured application can show machine values and alarms and accept permitted operator settings. When buying a spare, compare the complete model and connector layout with the installed panel, preserve the project backup and check the display for readability and touch response.

Supply and Quotation

Request a quotation for XBTGT2330 with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. How does it differ from XBTGT2220?
   XBTGT2330 has a 65,536-color TFT display and Ethernet. XBTGT2220 has a 4,096-color STN display without Ethernet. The shared size and resolution do not establish interchangeability.
2. Are the two serial connections identical?
   No. COM1 uses a 9-pin D-Sub and supports RS-232C/RS-422/RS-485. COM2 is an RJ45 RS-485 port. Check the selected mode, cable pinout and controller driver for each.
3. Will another 5.7-inch screen accept the same project?
   Do not assume so. This model has 320 x 240 pixels and a color tft lcd. Check the target device, display colors, communication ports and mounting drawing before changing models.
4. How do I request a price for XBTGT2330?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
