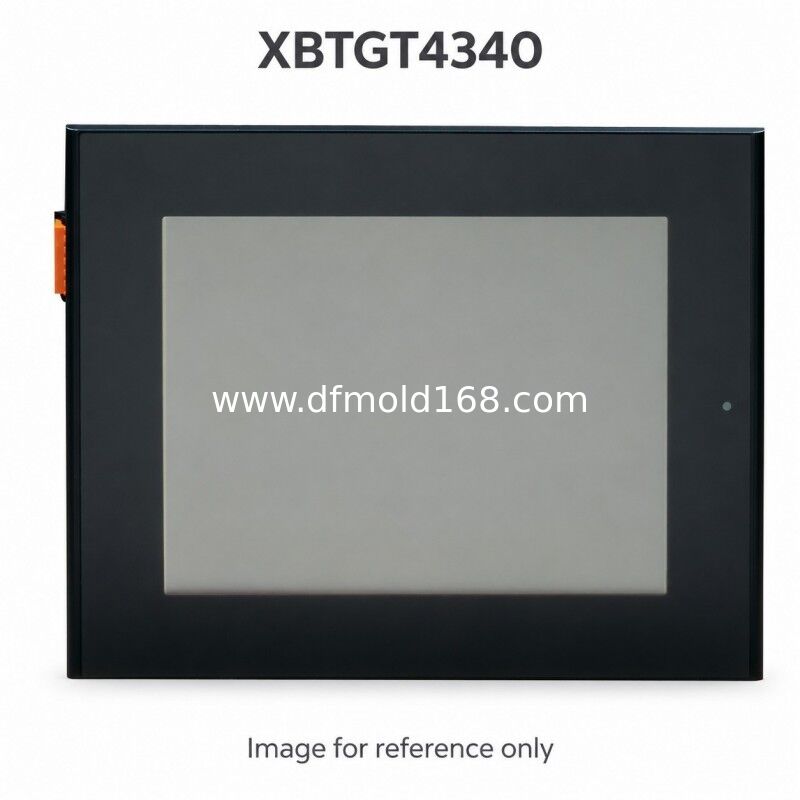

XBTGT4340 7.5in 640x480 TFT Video Input HMI

Parameters

Product Description

XBTGT4340 is a 7.5-inch operator panel with a 640 x 480 pixel color tft lcd display and a 24 VDC supply. It provides a configurable RS-232C/RS-422/RS-485 COM1 connection and a separate RS-485 COM2 connection. Ethernet is fitted for network communication with a supported controller driver. The video input is a distinguishing feature when the existing application includes a camera image. A configured application can show machine values and alarms and accept permitted operator settings. When buying a spare, compare the complete model and connector layout with the installed panel, preserve the project backup and check the display for readability and touch response.

Supply and Quotation

Request a quotation for XBTGT4340 with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. Can XBTGT4330 provide the same video function?
   No. XBTGT4340 has a video input and 64 MB of run DRAM. XBTGT4330 has no video port and 32 MB of run DRAM. Check the video source and configured application when sourcing this model.
2. Are Flash memory and run DRAM the same specification?
   No. This reference has 32 MB of application Flash memory and 64 MB of application run DRAM. They serve different functions; check project capacity against both.
3. Will the existing serial cables connect?
   COM1 uses a 9-pin D-Sub for RS-232C/RS-422/RS-485, while COM2 uses RJ45 for RS-485. Check connector condition, pinout and the selected communication mode before reusing either cable.
4. How do I request a price for XBTGT4340?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
